74142 TE (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 315000001 - 315999999) (2015) Deck Assembly Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

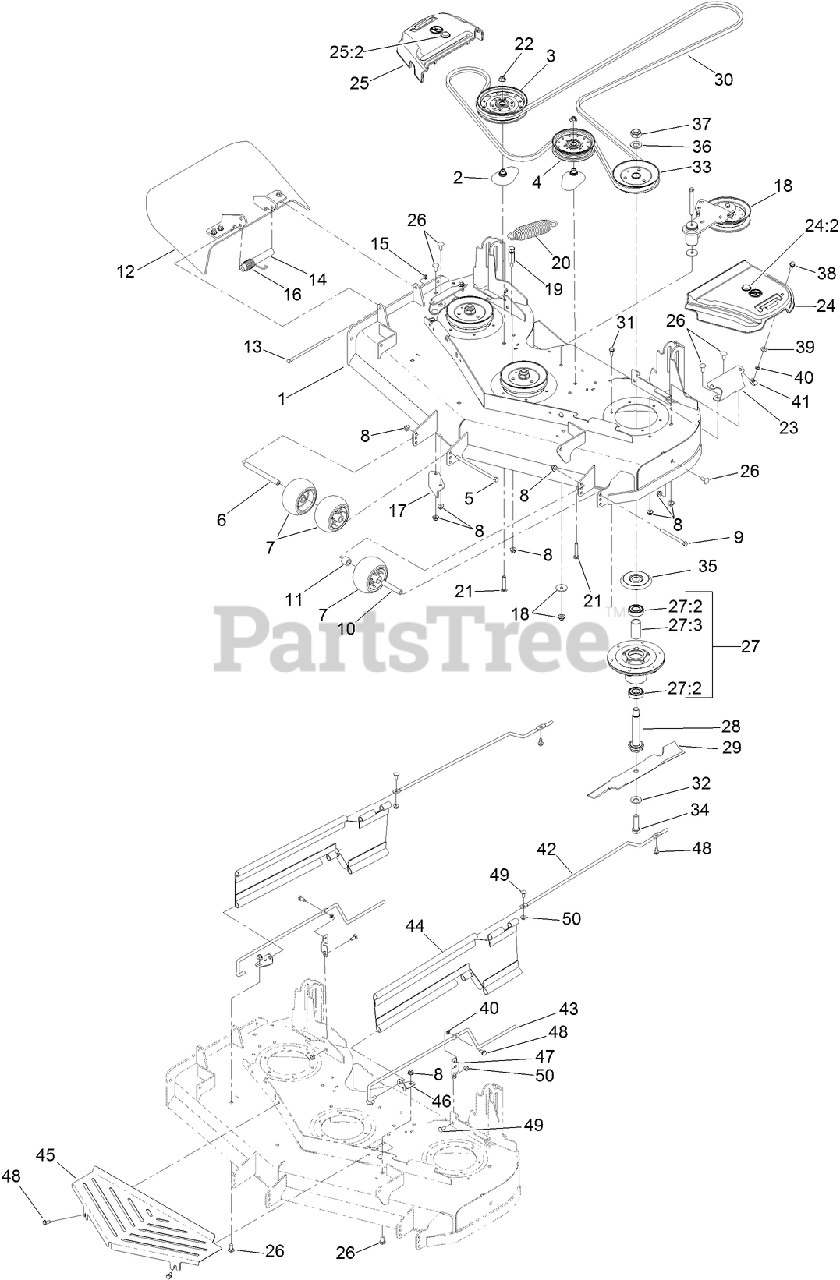

Deck Assembly Parts Diagram

  • Title

1

Toro 131-7664

DECK ASM

$2860.99

$

Usually ships in 3-6 days

0

2

Toro 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

3

Toro 116-4670

See Supercession: 136-5404
(Superseded to 136-5404)

$68.99

$

Usually ships in 3-6 days

0

4

Toro 116-4665

See Supercession: 136-5405
(Superseded to 136-5405)

$52.99

$

In Stock, only 4 left!

0

5

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

6

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

7

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

10

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

11

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

12

Toro 120-2451

DEFLECTOR ASM

$270.99

$

In Stock, Qty 10

0

13

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

14

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

15

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

16

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

17

Toro 107-8541-01

BAFFLE-DISCHARGE

$25.99

$

In Stock, only 1 left!

0

18

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

19

Toro 114-5867

ANCHOR-SPRING, TALL

$15.99

$

In Stock, Qty 7

0

20

Toro 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

21

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

22

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 114-5881-01

BRACKET-COVER, BELT

$90.99

$

Usually ships in 3-6 days

0

24

Toro 117-7814

LH BELT COVER ASM

$46.99

$

Usually ships in 3-6 days

0

24:2

Toro 117-3824

PLUG-PLASTIC

$3.49

$

Usually ships in 3-6 days

0

25

Toro 117-7813

RH BELT COVER ASM

$46.99

$

Usually ships in 3-6 days

0

25:2

Toro 117-3824

PLUG-PLASTIC

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

27

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$117.99

$

In Stock, Qty 20+

0

27:2

Toro 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

27:3

Toro 115-2641

SPACER-BEARING
(Superseded to 138-7220)

$8.99

$

In Stock, Qty 18

0

28

Toro 120-2505

SPINDLE-SHAFT

$66.99

$

In Stock, only 2 left!

0

29

Toro 117-7277-03

BLADE-HI FLO, 16.50 INCH

$25.99

$

In Stock, Qty 12

0

30

Toro 119-9926

BELT-V

$165.99

$

In Stock, only 4 left!

0

31

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

32

Toro 125-1736

WASHER-BELLEVILLE

$4.99

$

In Stock, Qty 20+

0

33

Toro 120-7854

PULLEY-B SECTION

$126.99

$

In Stock, only 2 left!

0

34

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

35

Toro 117-7210

SHIELD-BEARING
(Superseded to 138-7221)

$5.99

$

In Stock, Qty 20+

0

36

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 20+

0

37

Toro 3296-67

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

38

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

39

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

40

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

41

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

42

Toro 131-3999

ROD-SUPPORT, UPPER

$49.99

$

Usually ships in 3-6 days

0

43

Toro 131-4000

ROD-SUPPORT, LOWER

$45.99

$

Usually ships in 3-6 days

0

44

Toro 131-4023

GUARD-SIDE

$21.99

$

Usually ships in 3-6 days

0

45

Toro 131-3979-03

SHIELD-FRONT

$99.99

$

Usually ships in 3-6 days

0

46

Toro 131-4001-03

BRACKET-SUPPORT, FRONT ROD

$

$

Not available

47

Toro 131-4193-03

BRACKET-MOUNTING, REAR

$19.99

$

Usually ships in 3-6 days

0

48

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

49

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

50

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+
