74143 (2000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) Deck Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

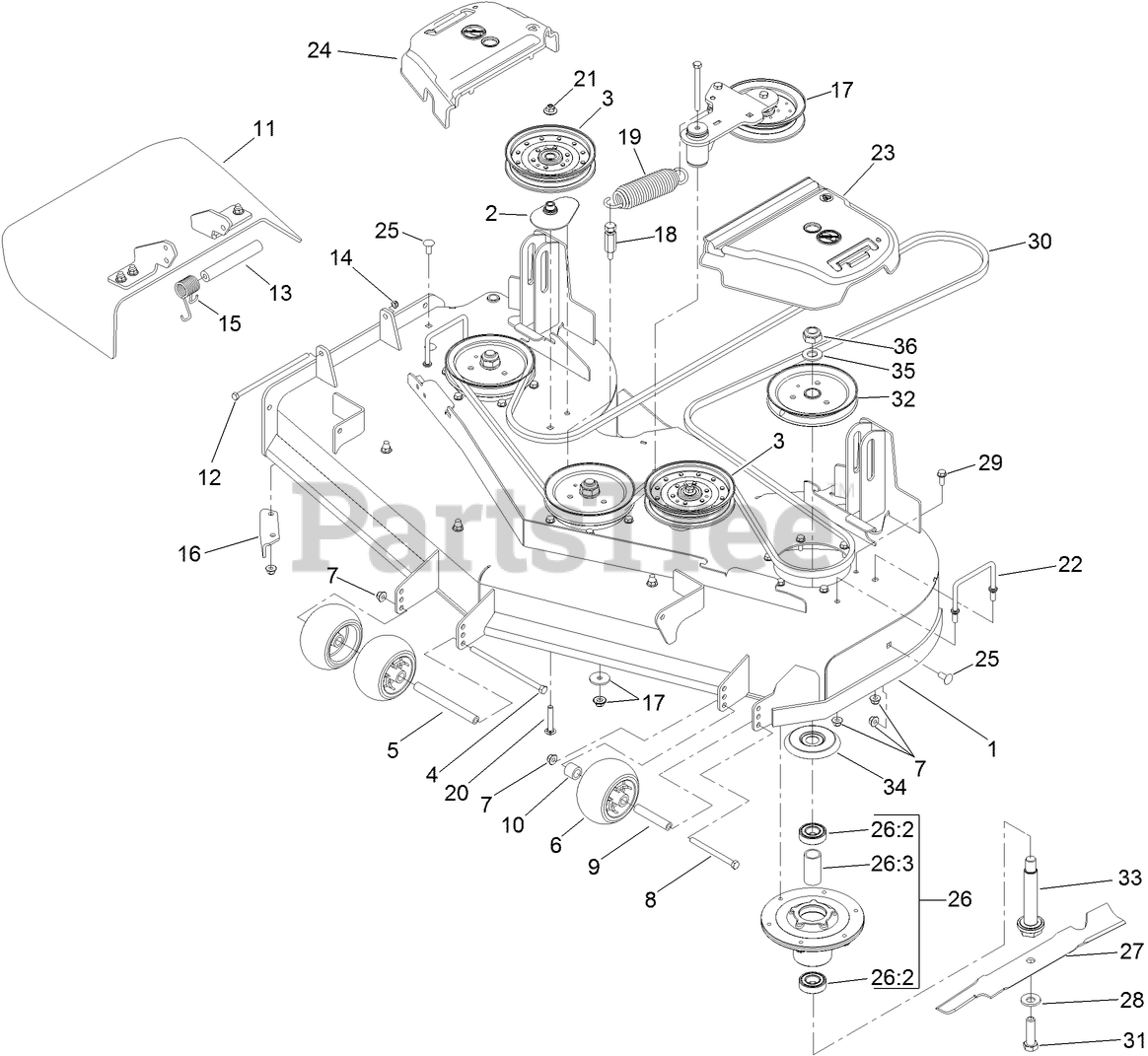

Deck Assembly Parts Diagram

  • Title

1

Toro 120-2351

DECK DECAL ASM

$

$

Not available

2

Toro 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

3

Toro 116-4670

See Supercession: 136-5404
(Superseded to 136-5404)

$68.99

$

Usually ships in 3-6 days

0

4

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

5

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

6

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

9

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

10

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

11

Toro 120-2451

DEFLECTOR ASM

$270.99

$

In Stock, Qty 10

0

12

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

13

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

14

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

15

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

16

Toro 107-8541-01

BAFFLE-DISCHARGE

$25.99

$

In Stock, only 1 left!

0

17

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

18

Toro 114-5867

ANCHOR-SPRING, TALL

$15.99

$

In Stock, Qty 7

0

19

Toro 116-0133

See Supercession: 116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

20

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

21

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

23

Toro 109-6936

COVER-BELT, LH

$43.99

$

In Stock, Qty 20+

0

24

Toro 109-6935

COVER-BELT, RH

$43.99

$

In Stock, Qty 18

0

25

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

26

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$117.99

$

In Stock, Qty 20+

0

26:2

Toro 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

26:3

Toro 115-2641

SPACER-BEARING
(Superseded to 138-7220)

$8.99

$

In Stock, Qty 18

0

27

Toro 120-2379-03

See Supercession: 120-2379
(Superseded to 120-2379)

$33.99

$

In Stock, only 3 left!

0

28

Toro 22-8520

See Supercession: 125-1736
(Superseded to 125-1736)

$4.99

$

In Stock, Qty 20+

0

29

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

30

Toro 120-2410

See Supercession: 114-5857
(Superseded to 114-5857)

$224.99

$

In Stock, only 2 left!

0

31

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

32

Toro 120-7855

PULLEY

$60.99

$

In Stock, only 4 left!

0

33

Toro 120-2505

SPINDLE-SHAFT

$66.99

$

In Stock, only 2 left!

0

34

Toro 117-7210

SHIELD-BEARING
(Superseded to 138-7221)

$5.99

$

In Stock, Qty 20+

0

35

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 20+

0

36

Toro 3296-67

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0
