74143 (2000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) RH Transaxle Assembly No. 130-2850 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

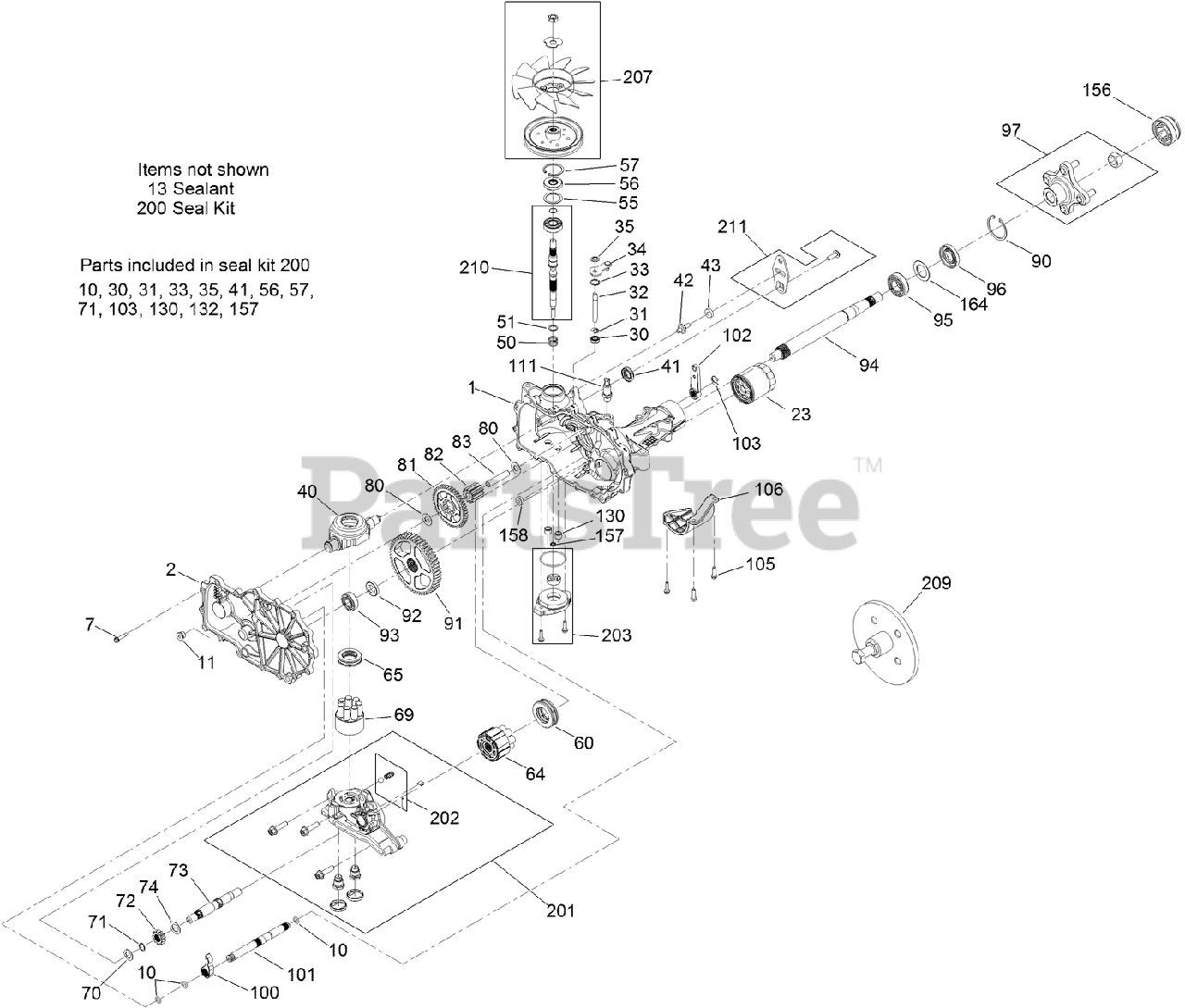

RH Transaxle Assembly No. 130-2850 Parts Diagram

  • Title

1

Toro 121-3231

RH MAIN HOUSING KIT

$

$

Not available

2

Toro 121-3232

RH SIDE COVER KIT

$

$

Not available

7

Toro 117-5359

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

10

Toro 130-8483

See Supercession: 114-1678
(Superseded to 114-1678)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 104-2189

PLUG-THREAD, STRAIGHT

$29.99

$

In Stock, only 2 left!

0

13

Toro 104-2147

SEALANT

Note: Not illustrated

$129.99

$

Usually ships in 3-6 days

0

23

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$30.99

$

In Stock, Qty 20+

0

30

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$8.99

$

In Stock, only 2 left!

0

31

Toro 106-8677

RING-RETAINING, EXTERNAL

$10.99

$

In Stock, only 2 left!

0

32

Toro 114-1685

ROD-BYPASS

$39.99

$

Usually ships in 3-6 days

0

33

Toro 106-8679

RING-RETAINING, INTERNAL

$10.99

$

Usually ships in 3-6 days

0

34

Toro 107-2490

ARM-BYPASS

$63.99

$

Usually ships in 3-6 days

0

35

Toro 106-8681

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

40

Toro 104-5304

SWASHPLATE-TRUNNION

$212.99

$

Usually ships in 3-6 days

0

41

Toro 104-5313

SEAL-LIP

$29.99

$

In Stock, only 1 left!

0

42

Toro 104-2116

STUD

$42.99

$

Usually ships in 3-6 days

0

43

Toro 112-9853

PUCK-FRICTION

$8.99

$

Usually ships in 3-6 days

0

50

Toro 120-5537

See Supercession: 94-1936
(Superseded to 94-1936)

$9.49

$

In Stock, only 1 left!

0

51

Toro 120-5538

WASHER

$5.99

$

Usually ships in 3-6 days

0

55

Toro 104-5308

SPACER

$9.49

$

In Stock, only 2 left!

0

56

Toro 104-5310

SEAL-LIP

$43.99

$

In Stock, only 2 left!

0

57

Toro 104-5309

RING-RETAINING

$13.99

$

In Stock, only 3 left!

0

60

Toro 109-2865

BEARING-THRUST
(Superseded to 112-4154)

$117.99

$

Usually ships in 3-6 days

0

64

Toro 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$302.99

$

Usually ships in 3-6 days

0

65

Toro 121-3235

BEARING-THRUST, PLASTIC CAGE

$41.99

$

Usually ships in 3-6 days

0

69

Toro 121-3236

7 PISTON BLOCK ASM

$294.99

$

Usually ships in 3-6 days

0

70

Toro 104-5339

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

71

Toro 104-5340

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

72

Toro 120-7972

GEAR-13T

$108.99

$

Usually ships in 3-6 days

0

73

Toro 114-1691

SHAFT-MOTOR

$206.99

$

Usually ships in 3-6 days

0

74

Toro 104-5360

WASHER

$8.99

$

Usually ships in 3-6 days

0

80

Toro 94-1933

WASHER

$7.49

$

Usually ships in 3-6 days

0

81

Toro 120-7973

GEAR-46T

$94.99

$

Usually ships in 3-6 days

0

82

Toro 120-7974

GEAR-11T

$82.99

$

Usually ships in 3-6 days

0

83

Toro 104-5329

PIN-JACKSHAFT

$123.99

$

Usually ships in 3-6 days

0

90

Toro 104-2169

RING-RETAINING

$21.99

$

Usually ships in 3-6 days

0

91

Toro 121-3237

GEAR-54T

$113.99

$

Usually ships in 3-6 days

0

92

Toro 120-7975

SPACER

$6.99

$

Usually ships in 3-6 days

0

93

Toro 130-8476

BEARING-BALL

$34.99

$

Usually ships in 3-6 days

0

94

Toro 121-3238

SHAFT-AXLE

$369.99

$

Usually ships in 3-6 days

0

95

Toro 130-8477

BEARING-BALL

$28.99

$

In Stock, only 1 left!

0

96

Toro 130-8478

SEAL-LIP
(Superseded to 104-2144)

$59.99

$

In Stock, Qty 6

0

97

Toro 109-5939

HUB KIT

$121.99

$

In Stock, only 2 left!

0

100

Toro 114-1697

PAWL-BRAKE

$18.99

$

Usually ships in 3-6 days

0

101

Toro 130-8479

SHAFT-BRAKE

$146.99

$

Usually ships in 3-6 days

0

102

Toro 125-0021

HANDLE-BRAKE

$16.99

$

In Stock, only 2 left!

0

103

Toro 130-8484

See Supercession: 131-0906
(Superseded to 131-0906)

$6.99

$

Usually ships in 3-6 days

0

105

Toro 104-2120

SCREW

$8.99

$

In Stock, only 1 left!

0

106

Toro 120-7981

GUARD-FILTER, RH

$42.99

$

Usually ships in 3-6 days

0

111

Toro 109-3278

ADAPTER-STRAIGHT

$147.99

$

Usually ships in 3-6 days

0

130

Toro 130-8485

TUBE-PUSH, O-RING
(Superseded to 114-8455)

$14.99

$

In Stock, only 3 left!

0

156

Toro 115-5057

COVER-NUT, AXLE

$19.99

$

Usually ships in 3-6 days

0

157

Toro 130-8486

SEAL-GEROTOR

$9.49

$

Usually ships in 3-6 days

0

158

Toro 104-5330

MAGNET-RING

$

$

Not available

164

Toro 130-8480

SPACER

$8.99

$

Usually ships in 3-6 days

0

200

Toro 121-3243

SEAL KIT

Note: Not illustrated

$241.99

$

Usually ships in 3-6 days

0

201

Toro 130-8481

CENTER SECTION KIT

$

$

Not available

202

Toro 114-8464

CHARGE RELIEF KIT

$27.99

$

Usually ships in 3-6 days

0

203

Toro 121-3246

CHARGE PUMP KIT
(Superseded to 114-8465)

$137.99

$

In Stock, only 1 left!

0

207

Toro 121-3247

FAN AND PULLEY KIT

$104.99

$

Usually ships in 3-6 days

0

209

Toro 130-8482

HUB PULLER KIT

$470.99

$

Usually ships in 3-6 days

0

210

Toro 121-3248

INPUT SHAFT KIT

$328.99

$

Usually ships in 3-6 days

0

211

Toro 117-5362

CONTROL ARM KIT

$33.99

$

In Stock, only 2 left!

0
