74145 (2000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) Deck Lift Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

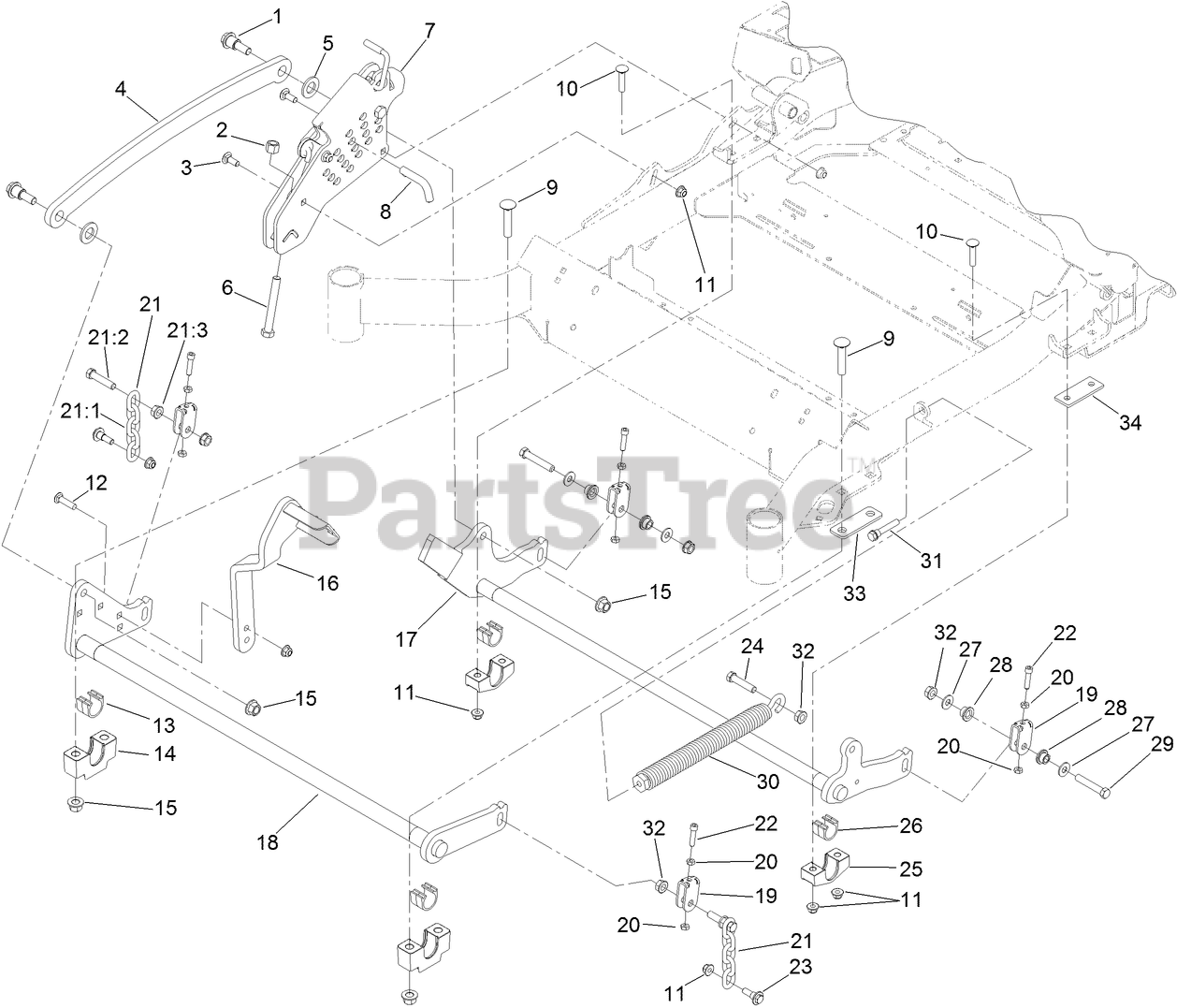

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 116-0780

SCREW-SHOULDER, HHF

$9.49

$

In Stock, only 2 left!

0

2

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 116-0797-03

LINK-LIFT, DECK

$149.99

$

Usually ships in 3-6 days

0

5

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

6

Toro 116-0559

BOLT-TAP

$6.99

$

Usually ships in 3-6 days

0

7

Toro 120-2530

HOC ASM

$

$

Not available

8

Toro 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 20+

0

9

Toro 116-1700

BOLT-CARR

$5.99

$

Usually ships in 3-6 days

0

10

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

13

Toro 109-9410

BEARING-CROSS SHAFT, FRONT

$5.99

$

In Stock, Qty 20+

0

14

Toro 109-9409

SUPPORT-CROSS SHAFT, BEARING

$15.99

$

In Stock, Qty 20+

0

15

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

16

Toro 116-1919-01

LEVER-FOOT

$111.99

$

Usually ships in 3-6 days

0

17

Toro 116-0459-03

LIFT-DECK, REAR

$383.99

$

Usually ships in 3-6 days

0

18

Toro 116-2217-03

See Supercession: 126-2475-03
(Superseded to 126-2475-03)

$197.99

$

Usually ships in 3-6 days

0

19

Toro 109-9066

YOKE-ADJUST, DECK

$8.99

$

In Stock, Qty 10

0

20

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

21

Toro 116-0756

DECK LIFT CHAIN ASM

$15.99

$

In Stock, Qty 7

0

21:1

Toro 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, only 3 left!

0

21:2

Toro 109-9065

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21:3

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

22

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

23

Toro 109-9840

SCREW-SHOULDER, HHF

$5.99

$

In Stock, Qty 20+

0

24

Toro 109-9065

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 116-0818-03

See Supercession: 132-4719
(Superseded to 132-4719)

$47.99

$

In Stock, only 3 left!

0

26

Toro 109-7173

BEARING-CROSS SHAFT, REAR

$5.99

$

In Stock, Qty 20+

0

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 116-2428

BUSHING-FLANGED

$13.99

$

In Stock, Qty 5

0

29

Toro 324-10

SCREW-HH

$2.49

$

In Stock, Qty 7

0

30

Toro 116-0886

SPRING-EXTENSION

$153.99

$

In Stock, only 1 left!

0

31

Toro 92-7674

BOLT-SHOULDER

$3.49

$

In Stock, Qty 6

0

32

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

33

Toro 121-7593-01

SPACER-DECKLIFT, FRONT

$

$

Not available

34

Toro 121-7594-01

SPACER-DECKLIFT, BACK

$

$

Not available
