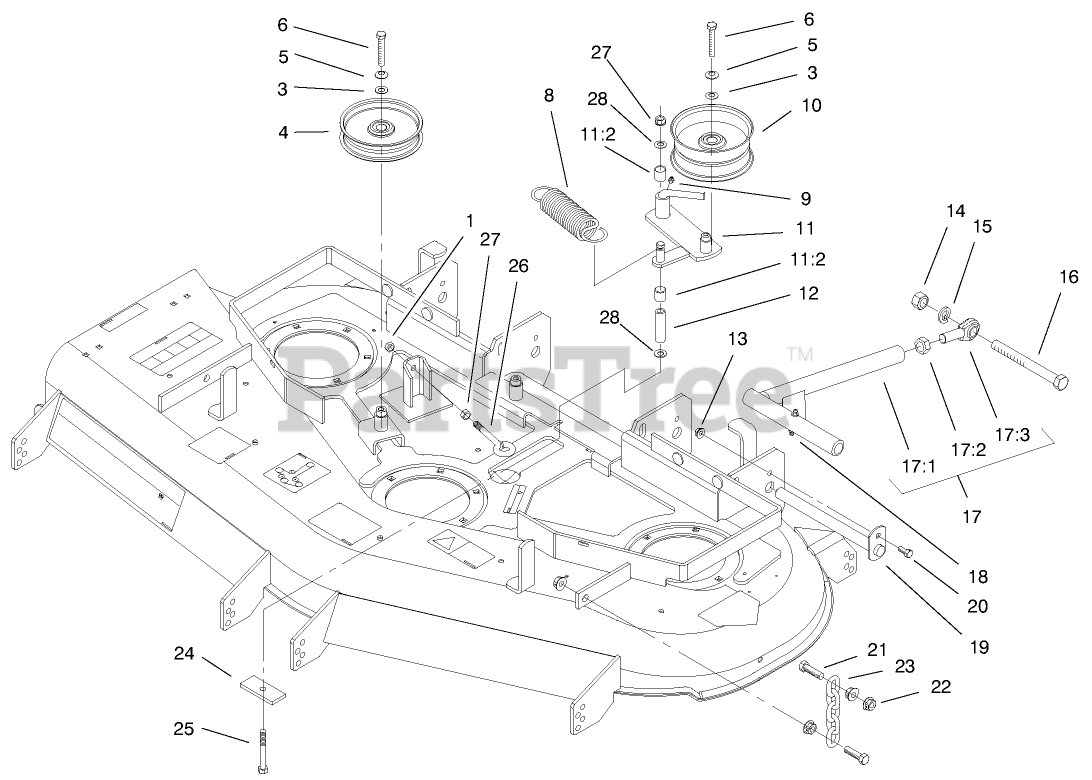

74170 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) Idler, Pulleys/lift Strut, Chains Assembly Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

Idler, Pulleys/lift Strut, Chains Assembly Parts Diagram

  • Title

1

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro E613098

See Supercession: 1-613098
(Superseded to 1-613098)

$51.99

$

In Stock, Qty 20+

0

5

Toro E303327

See Supercession: 98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

6

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro E633151

See Supercession: 116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 18

0

9

Toro E811008

See Supercession: 302-40
(Superseded to 302-40)

$3.99

$

In Stock, Qty 20+

0

10

Toro 99-8912

See Supercession: 116-4669
(Superseded to 116-4669)

$86.99

$

In Stock, Qty 18

0

11

Toro 99-8914

IDLER ARM ASM

$

$

Not available

11:2

Toro E513034

See Supercession: 1-513034
(Superseded to 1-513034)

$7.99

$

In Stock, Qty 20+

0

12

Toro E603384

See Supercession: 1-603384
(Superseded to 1-603384)

$14.99

$

In Stock, Qty 20+

0

13

Toro 3296-41

NUT-LOCK NI

$6.99

$

In Stock, only 2 left!

0

14

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

15

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro E800344

See Supercession: 1-800344
(Superseded to 1-800344)

$17.99

$

Usually ships in 3-6 days

0

17

Toro E634726

See Supercession: 103-1081
(Superseded to 103-1081)

$300.99

$

In Stock, only 1 left!

0

17:1

Toro E632690

See Supercession: 109-1181
(Superseded to 109-1181)

$128.99

$

In Stock, Qty 20+

0

17:2

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

17:3

Toro E633029

See Supercession: 1-633029
(Superseded to 1-633029)

$71.99

$

In Stock, Qty 11

0

18

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

19

Toro E632199

See Supercession: 1-632199-01
(Superseded to 1-632199-01)

$38.99

$

In Stock, Qty 10

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

23

Toro E633447

See Supercession: 1-633447
(Superseded to 1-633447)

$11.99

$

In Stock, only 1 left!

0

24

Toro 99-3946-01

PLATE-RETAINER, BOLT

$

$

Not available

25

Toro E800805

See Supercession: 1-800805
(Superseded to 1-800805)

$5.99

$

In Stock, Qty 20+

0

26

Toro 94-2547

BOLT-EYE

$30.99

$

Usually ships in 3-6 days

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Toro E809107

See Supercession: 1-809107
(Superseded to 1-809107)

$5.99

$

In Stock, only 2 left!

0
