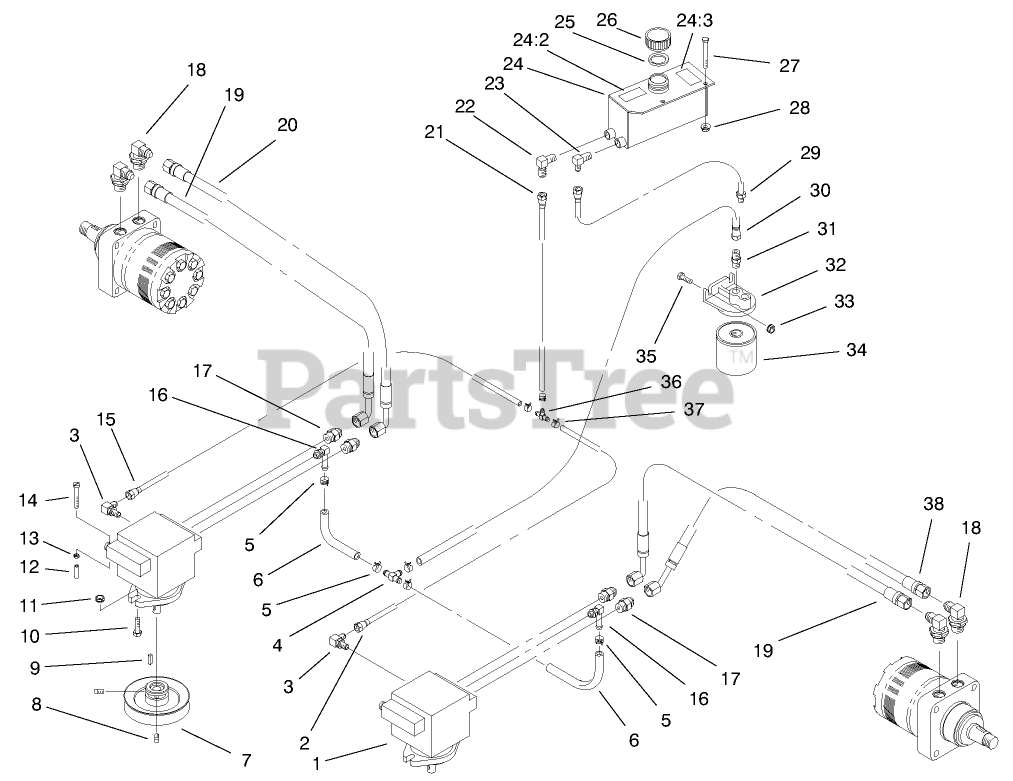

74172 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099002000 - 099999999) (1999) Hydraulic System Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

Hydraulic System Assembly Parts Diagram

  • Title

1

Toro E603841

See Supercession: 103-2766
(Superseded to 103-2766)

$1753.99

$

Usually ships in 3-6 days

0

2

Toro E632285

See Supercession: 1-632285
(Superseded to 1-632285)

$50.99

$

In Stock, only 3 left!

0

3

Toro E513840

See Supercession: 1-513840
(Superseded to 1-513840)

$29.99

$

Usually ships in 3-6 days

0

4

Toro E603721

See Supercession: 1-603721
(Superseded to 1-603721)

$

$

Not available

5

Toro E603827

See Supercession: 1-603827
(Superseded to 1-603827)

$2.99

$

Usually ships in 3-6 days

0

6

Toro E413273

See Supercession: 1-413273
(Superseded to 1-413273)

$15.99

$

Usually ships in 3-6 days

0

7

Toro E653156

See Supercession: 1-653156
(Superseded to 1-653156)

$75.99

$

In Stock, only 2 left!

0

8

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

9

Toro E807272

See Supercession: 1-807272
(Superseded to 1-807272)

$6.49

$

In Stock, Qty 20+

0

10

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro E613073

See Supercession: 1-613073
(Superseded to 1-613073)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro E801063

See Supercession: 1-801063
(Superseded to 1-801063)

$5.99

$

In Stock, only 2 left!

0

15

Toro E632286

See Supercession: 1-632286
(Superseded to 1-632286)

$32.99

$

In Stock, only 3 left!

0

16

Toro E603989

See Supercession: 1-603989
(Superseded to 1-603989)

$42.99

$

Usually ships in 3-6 days

0

17

Toro E603990

See Supercession: 1-603990
(Superseded to 1-603990)

$19.99

$

In Stock, only 4 left!

0

18

Toro E633605

See Supercession: 1-633605
(Superseded to 1-633605)

$54.99

$

Usually ships in 3-6 days

0

19

Toro E653186

See Supercession: 1-653186
(Superseded to 1-653186)

$91.99

$

In Stock, Qty 5

0

20

Toro E653187

See Supercession: 1-653187
(Superseded to 1-653187)

$92.99

$

In Stock, only 3 left!

0

21

Toro E654144

See Supercession: 1-654144
(Superseded to 1-654144)

$72.99

$

Usually ships in 3-6 days

0

22

Toro E603987

See Supercession: 1-603987
(Superseded to 1-603987)

$25.99

$

Usually ships in 3-6 days

0

23

Toro E603988

See Supercession: 1-603988
(Superseded to 1-603988)

$

$

Not available

24

Toro 99-4625

DISCONTINUED

$

$

Not available

24:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

24:3

Toro E513890

See Supercession: 1-513890
(Superseded to 1-513890)

$7.99

$

Usually ships in 3-6 days

0

25

Toro E523103

See Supercession: 1-523103
(Superseded to 1-523103)

$7.99

$

In Stock, Qty 7

0

26

Toro E513167

See Supercession: 1-513167
(Superseded to 1-513167)

$32.99

$

In Stock, Qty 10

0

27

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 14

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro E654145

DISCONTINUED
(Superseded to 1-654145)

$

$

Not available

30

Toro E654197

See Supercession: 1-654197
(Superseded to 1-654197)

$

$

Not available

31

Toro E513510

See Supercession: 1-513510
(Superseded to 1-513510)

$13.99

$

Usually ships in 3-6 days

0

32

Toro E603720

DISCONTINUED
(Superseded to 1-603720)

$

$

Not available

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro E633750

See Supercession: 1-633750
(Superseded to 1-633750)

$28.99

$

In Stock, Qty 20+

0

34

Toro E633752

See Supercession: 1-633752
(Superseded to 1-633752)

$37.99

$

In Stock, only 3 left!

0

35

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro E603722

See Supercession: 1-603722
(Superseded to 1-603722)

$28.99

$

Usually ships in 3-6 days

0

37

Toro E603826

See Supercession: 1-603826
(Superseded to 1-603826)

$1.49

$

Usually ships in 3-6 days

0

38

Toro E653188

See Supercession: 1-653188
(Superseded to 1-653188)

$

$

Not available

39

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

40

Toro E513890

See Supercession: 1-513890
(Superseded to 1-513890)

$7.99

$

Usually ships in 3-6 days

0
