74176 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) Deck Spindle Assembly Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

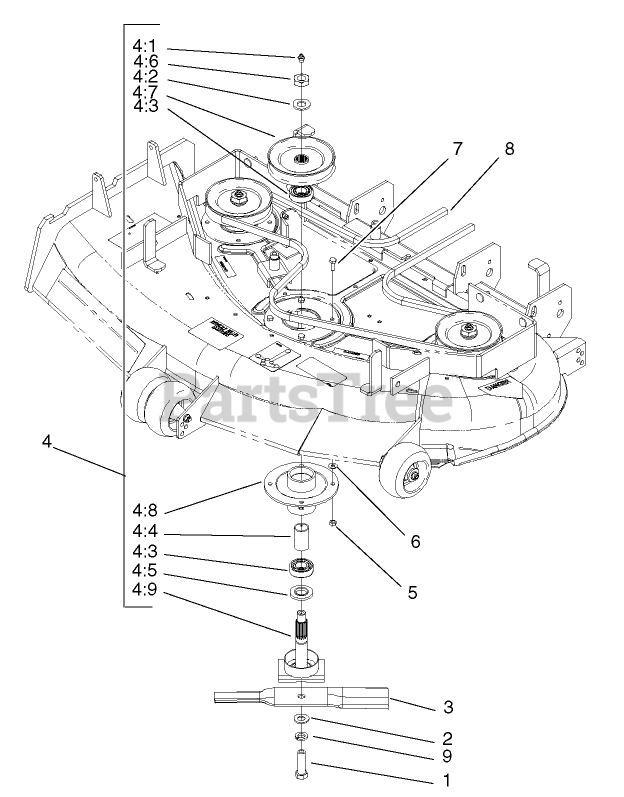

Deck Spindle Assembly Parts Diagram

  • Title

1

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

2

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

3

Toro 54-0010

See Supercession: 54-0010-03
(Superseded to 54-0010-03)

$33.99

$

In Stock, Qty 20+

0

4

Toro 100-3963

SPINDLE HOUSING ASM

$

$

Not available

4:1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

4:2

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

4:3

Toro 251-257

BEARING-BALL

$18.99

$

In Stock, only 4 left!

0

4:4

Toro 67-7580

SPACER-BEARING

$

$

Not available

4:5

Toro 67-7570

SPACER-SPINDLE

$

$

Not available

4:6

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

4:7

Toro 99-8929

PULLEY ASM

$

$

Not available

4:8

Toro 67-7590

HOUSING-SPINDLE

$360.99

$

Usually ships in 3-6 days

0

4:9

Toro 100-3974

SPINDLE SHAFT ASM

$232.99

$

In Stock, only 2 left!

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

8

Toro 99-3913

BELT

$203.99

$

Usually ships in 3-6 days

0

9

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
