74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000313 - 220999999) (2002) Hydraulic System Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

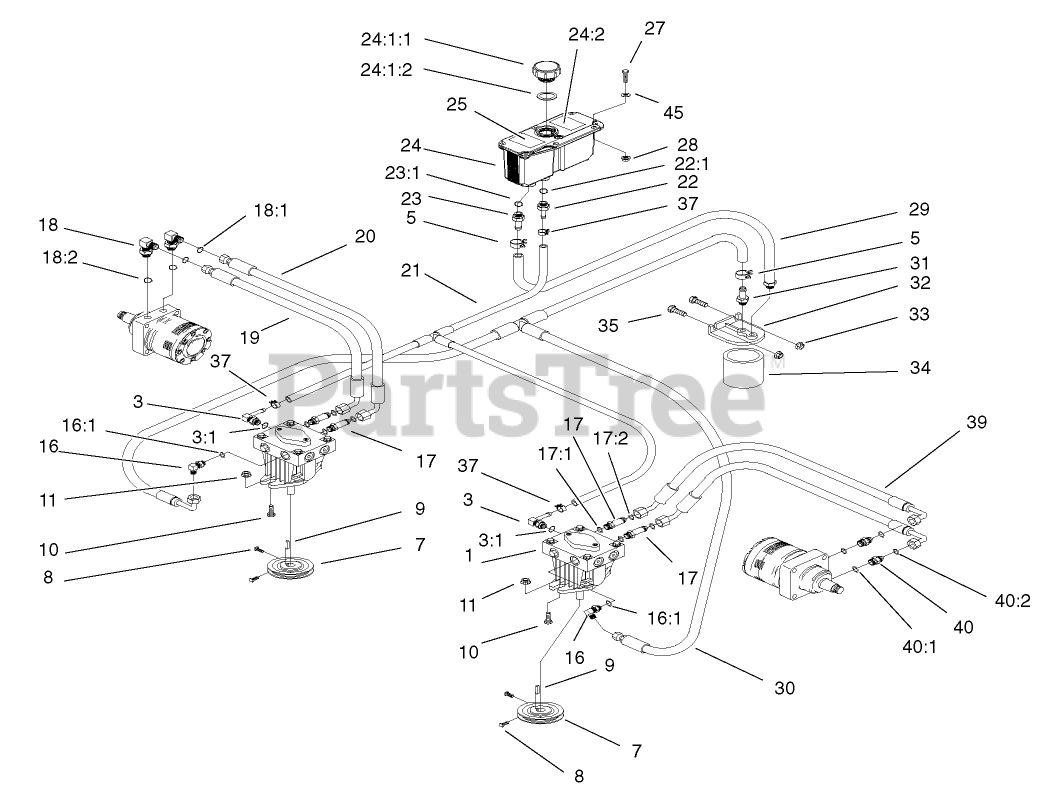

Hydraulic System Assembly Parts Diagram

  • Title

1

Toro 103-1942

PUMP-HYD

$1303.99

$

In Stock, only 2 left!

0

1:1

Toro 105-6184

SEAL OVERHAUL KIT

Note: Not illustrated

$101.99

$

In Stock, Qty 9

0

1:2

Toro 105-6185

PLATE-VALVE

Note: Not illustrated

$125.99

$

Usually ships in 3-6 days

0

1:8

Toro 103-2664

INPUT SHAFT KIT

Note: Not illustrated

$261.99

$

Usually ships in 3-6 days

0

1:9

Toro 103-2665

See Supercession: 94-6922
(Superseded to 94-6922)

Note: Not illustrated

$70.99

$

In Stock, only 2 left!

0

1:10

Toro 103-2666

CYLINDER BLOCK KIT

Note: Not illustrated

$614.99

$

Usually ships in 3-6 days

0

3

Toro 103-1799

ELBOW-90 DEG

$34.99

$

In Stock, only 1 left!

0

3:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

5

Toro 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

7

Toro 1-653156

PULLEY

$75.99

$

In Stock, only 2 left!

0

8

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, only 2 left!

0

9

Toro 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

10

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Toro 103-1802

FITTING-ELBOW, 90 DEG

$27.99

$

In Stock, only 2 left!

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

17

Toro 103-1940

ADAPTER-STR, LONG

$27.99

$

In Stock, only 3 left!

0

17:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

17:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

18

Toro 1-633605

FITTING-HYD, 90 DEG

$54.99

$

Usually ships in 3-6 days

0

18:1

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

18:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

19

Toro 1-653186

HOSE-FRONT

$91.99

$

In Stock, Qty 5

0

20

Toro 1-653187

HOSE-REAR, RH

$92.99

$

In Stock, only 3 left!

0

21

Toro 103-1800

HYD HOSE ASM

$63.99

$

Usually ships in 3-6 days

0

22

Toro 103-1801

ADAPTER-STRAIGHT

$35.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

23

Toro 103-1912

ADAPTER-STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

24

Toro 103-1947

HYD RESERVOIR ASM

$286.99

$

Usually ships in 3-6 days

0

24:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

24:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$37.99

$

In Stock, Qty 20+

0

24:1:2

Toro 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

24:2

Toro 1-523552

DECAL-TANK, HYD

$2.49

$

In Stock, Qty 11

0

25

Toro 103-2644

DECAL-EXHAUST

$

$

Not available

27

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro 103-1805

HYD HOSE ASM

$

$

Not available

30

Toro 103-1803

HYD HOSE ASM

$

$

Not available

31

Toro 103-1804

FITTING-STR

$

$

Not available

32

Toro 1-603720

DISCONTINUED

$

$

Not available

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-633750

FILTER-OIL, HYD

$28.99

$

In Stock, Qty 20+

0

34

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$37.99

$

In Stock, only 3 left!

0

35

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

39

Toro 103-1680

See Supercession: 103-3809
(Superseded to 103-3809)

$120.99

$

In Stock, only 2 left!

0

40

Toro 1-603991

FITTING-STRAIGHT

$25.99

$

In Stock, only 4 left!

0

40:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

40:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

45

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
