74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) Fuel System Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

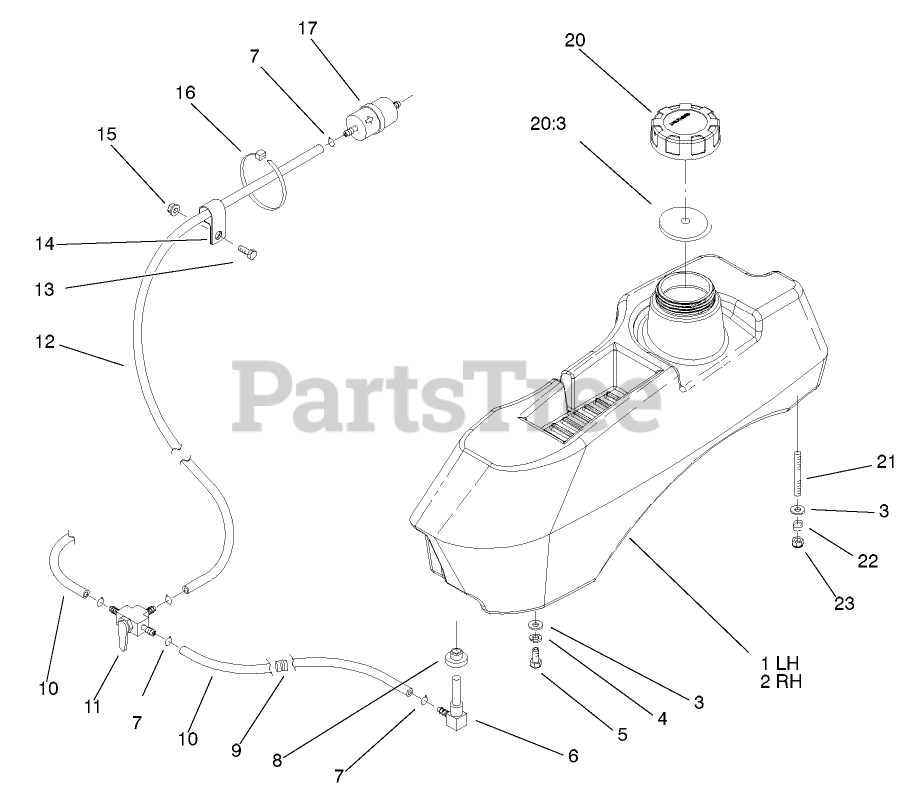

Fuel System Assembly Parts Diagram

  • Title

1

Toro 104-5120

DISCONTINUED
(Superseded to 108-2753)

$

$

Not available

2

Toro 104-5121

See Supercession: 110-0432
(Superseded to 110-0432)

$491.99

$

Usually ships in 3-6 days

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 1-543277

ELBOW-TANK, FUEL

$13.99

$

In Stock, Qty 20+

0

7

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

8

Toro 1-513645

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

9

Toro 1-543296

GROMMET

$9.49

$

In Stock, only 2 left!

0

10

Toro 1-543526

See Supercession: 109-0302
(Superseded to 109-0302)

$13.99

$

Usually ships in 3-6 days

0

11

Toro 1-633347

VALVE-FUEL

$83.99

$

In Stock, Qty 10

0

12

Toro 103-0216

DISCONTINUED

$

$

Not available

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-513762

CLIP-LOOM

$8.49

$

In Stock, only 1 left!

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

17

Toro 24 050 02

Filter-Fuel

$

$

Currently unavailable

20

Toro 88-3980

GAS CAP ASM

$37.99

$

In Stock, Qty 12

0

20:3

Toro 88-4010

GASKET-CAP, GAS

$40.99

$

In Stock, only 2 left!

0

21

Toro 1-633023

STUD

$6.99

$

In Stock, Qty 12

0

22

Toro 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

23

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0
