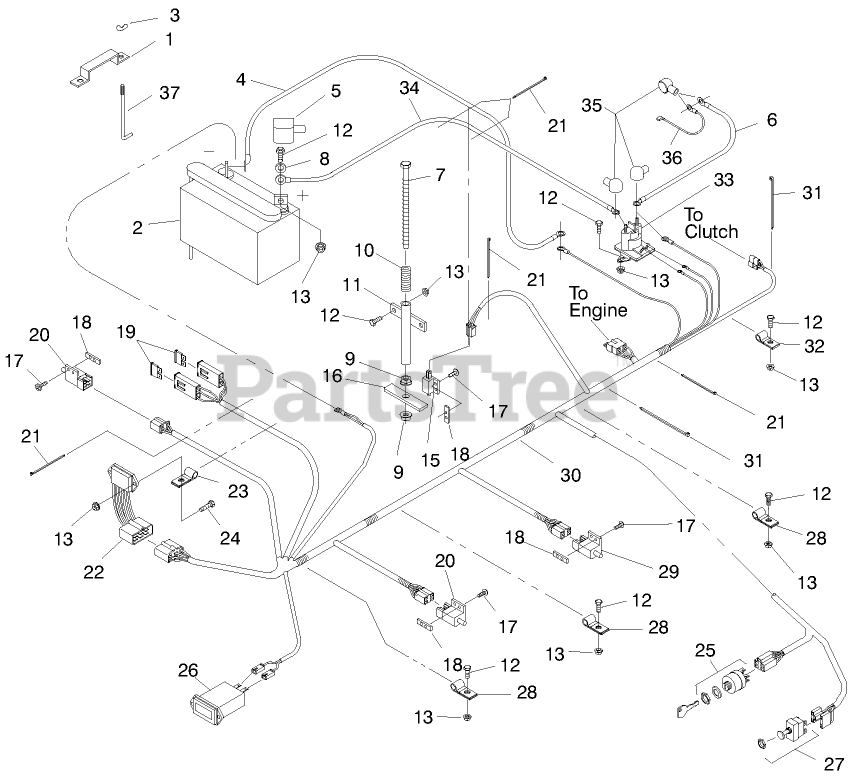

74204 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099002000 - 099004000) (1999) Electrical System Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

Electrical System Assembly Parts Diagram

  • Title

1

Toro E633652

See Supercession: 1-633652-03
(Superseded to 1-633652-03)

$24.99

$

In Stock, only 3 left!

0

2

Toro E603479

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

3

Toro E543792

See Supercession: 1-543792
(Superseded to 1-543792)

$6.99

$

In Stock, Qty 20+

0

4

Toro E633307

See Supercession: 1-633307
(Superseded to 1-633307)

$

$

Not available

5

Toro E543391

See Supercession: 109-2407
(Superseded to 109-2407)

$5.99

$

In Stock, only 2 left!

0

6

Toro E633306

See Supercession: 109-7620
(Superseded to 109-7620)

$

$

Not available

7

Toro E800282

See Supercession: 1-800282
(Superseded to 1-800282)

$5.99

$

In Stock, only 1 left!

0

8

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro E523415

See Supercession: 1-523415
(Superseded to 1-523415)

$37.99

$

In Stock, only 1 left!

0

11

Toro E522424

See Supercession: 1-522424-03
(Superseded to 1-522424-03)

$41.99

$

Usually ships in 3-6 days

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Toro E513152

See Supercession: 1-513152
(Superseded to 1-513152)

$14.99

$

In Stock, Qty 10

0

16

Toro E513180

See Supercession: 1-513180
(Superseded to 1-513180)

$18.99

$

In Stock, only 2 left!

0

17

Toro E803028

See Supercession: 3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

18

Toro E633181

See Supercession: 1-633181
(Superseded to 1-633181)

$7.49

$

In Stock, only 3 left!

0

19

Toro E816001

See Supercession: 1-816001
(Superseded to 1-816001)

$6.99

$

In Stock, only 3 left!

0

20

Toro E633111

See Supercession: 1-633111
(Superseded to 1-633111)

$23.99

$

In Stock, Qty 5

0

21

Toro E303287

See Supercession: 1-303287
(Superseded to 1-303287)

$1.49

$

Usually ships in 3-6 days

0

22

Toro E543316

See Supercession: 1-543316
(Superseded to 1-543316)

$207.99

$

In Stock, only 2 left!

0

23

Toro E513762

See Supercession: 1-513762
(Superseded to 1-513762)

$8.49

$

In Stock, only 1 left!

0

24

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

25

Toro E543070

See Supercession: 1-543070
(Superseded to 1-543070)

$47.99

$

In Stock, Qty 15

0

26

Toro E513374

See Supercession: 1-513374
(Superseded to 1-513374)

$76.99

$

In Stock, Qty 5

0

27

Toro E633673

See Supercession: 103-5221
(Superseded to 103-5221)

$63.99

$

In Stock, Qty 7

0

28

Toro E633396

See Supercession: 1-633396
(Superseded to 1-633396)

$5.99

$

Usually ships in 3-6 days

0

29

Toro E633110

See Supercession: 1-633110
(Superseded to 1-633110)

$25.99

$

In Stock, Qty 5

0

30

Toro E643119

See Supercession: 1-643119
(Superseded to 1-643119)

$

$

Not available

31

Toro E303335

See Supercession: 1-303335
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

32

Toro E323229

See Supercession: 1-323229
(Superseded to 1-323229)

$3.49

$

Usually ships in 3-6 days

0

33

Toro E513075

See Supercession: 117-1197
(Superseded to 117-1197)

$50.99

$

Usually ships in 3-6 days

0

34

Toro E523281

See Supercession: 109-7630
(Superseded to 109-7630)

$46.99

$

In Stock, only 2 left!

0

35

Toro E543393

See Supercession: 1-543393
(Superseded to 1-543393)

$5.99

$

Usually ships in 3-6 days

0

36

Toro E543084

DISCONTINUED
(Superseded to 1-543084)

$

$

Not available

37

Toro E633651

See Supercession: 1-633651
(Superseded to 1-633651)

$8.99

$

In Stock, Qty 20+

0
