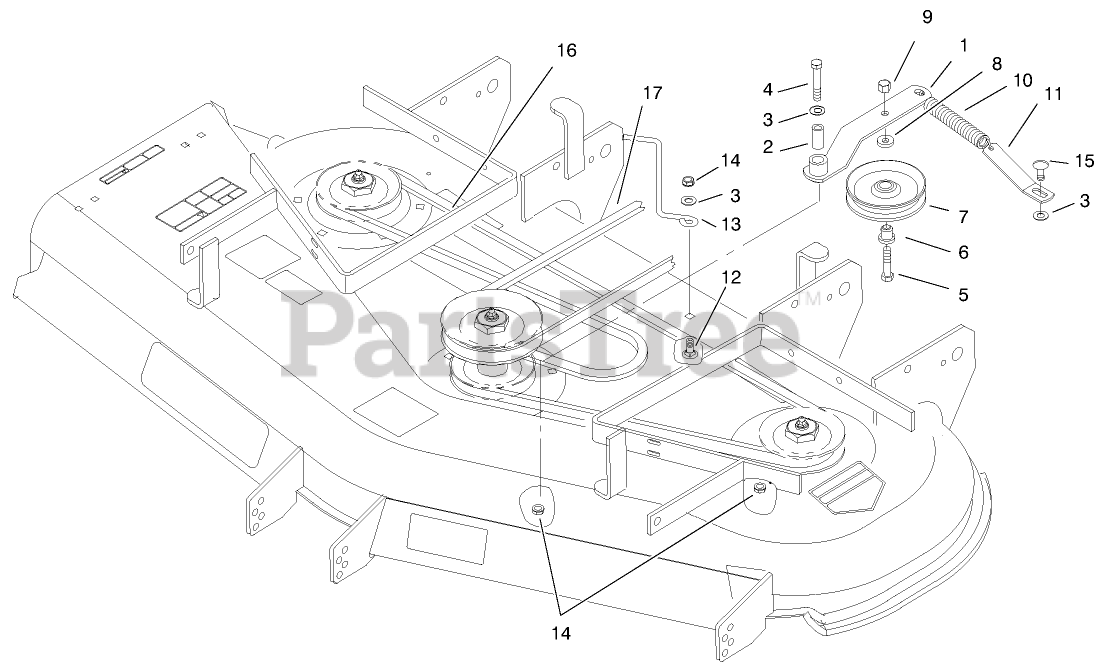

74206 - Toro 52" Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) Belts And Idler Assembly Parts Diagram

52" Side-Discharge Mower Deck

Belts And Idler Assembly Parts Diagram

  • Title

1

Toro 55-7640-03

IDLER ARM ASM

$139.99

$

Usually ships in 3-6 days

0

2

Toro 51-3640

SLEEVE

$18.99

$

In Stock, only 2 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

6

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 20+

0

7

Toro 65-5940

PULLEY-IDLER

$41.99

$

In Stock, Qty 5

0

8

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

9

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

10

Toro 51-3650

SPRING-EXTENSION

$27.99

$

In Stock, only 2 left!

0

11

Toro 55-7650

PLATE-SPRING

$27.99

$

In Stock, Qty 5

0

12

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 98-5980

GUIDE-BELT

$90.99

$

Usually ships in 3-6 days

0

14

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

16

Toro 27-1160

V-BELT

$60.99

$

In Stock, Qty 5

0

17

Toro 98-3780

V-BELT-DRIVE

$155.99

$

In Stock, Qty 6

0
