74206 - Toro 52" Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) Spindles, Blades And Deflector Assembly Parts Diagram

52" Side-Discharge Mower Deck

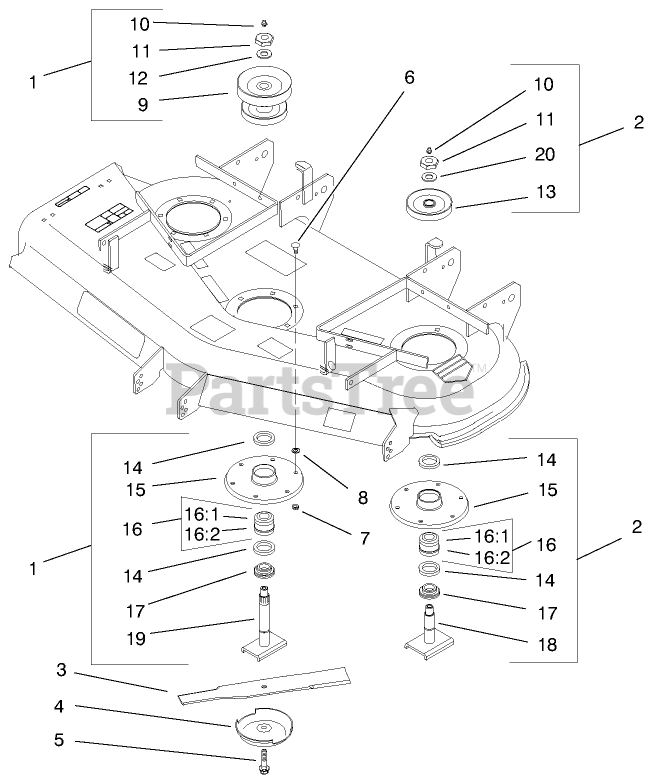

Spindles, Blades And Deflector Assembly Parts Diagram

  • Title

1

Toro 98-5974

ASSEMBLY-SPINDLE HOUSING

$1533.99

$

Usually ships in 3-6 days

0

2

Toro 27-0870-03

See Supercession: 27-0870
(Superseded to 27-0870)

$552.99

$

Usually ships in 3-6 days

0

3

Toro 27-0990

See Supercession: 27-0990-03
(Superseded to 27-0990-03)

$22.99

$

In Stock, Qty 17

0

4

Toro 72-9361

CUP-SCALP, ANTI

$46.99

$

In Stock, only 4 left!

0

5

Toro 92-5816

BOLT-BLADE

$8.49

$

In Stock, Qty 20+

0

6

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

7

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 98-3772

PULLEY ASSEMBLY

$

$

Not available

10

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

11

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

12

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 20+

0

13

Toro 27-0970

See Supercession: 27-0970-03
(Superseded to 27-0970-03)

$60.99

$

Usually ships in 3-6 days

0

14

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 20+

0

15

Toro 61-4160

HOUSING-SPINDLE

$153.99

$

In Stock, only 4 left!

0

16

Toro 46-8530

BEARING ASM

$125.99

$

In Stock, Qty 17

0

16:1

Toro 27-0960

BEARING ASM
(Superseded to 120-3246)

$205.99

$

Usually ships in 3-6 days

0

16:2

Toro 27-5970

SPACER-SET, MATCHED

$77.99

$

Usually ships in 3-6 days

0

17

Toro 27-0950

SPACER

$35.99

$

In Stock, only 2 left!

0

18

Toro 27-0920

SHAFT

$185.99

$

Usually ships in 3-6 days

0

19

Toro 51-3551

See Supercession: 105-1686
(Superseded to 105-1686)

$208.99

$

In Stock, Qty 5

0

20

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0
