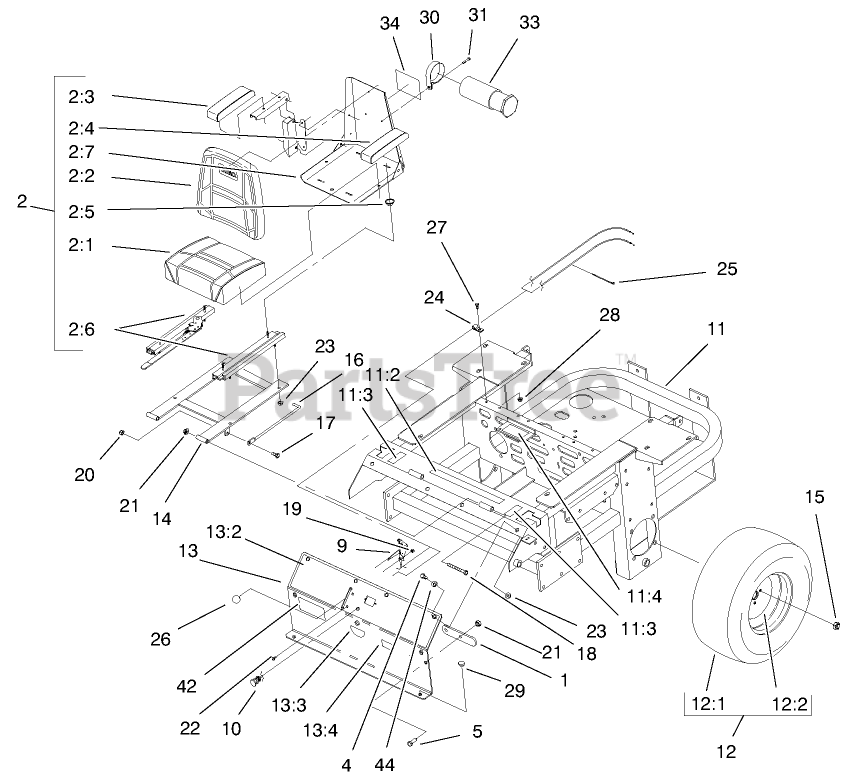

74209 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 0000001 - 0000999) (2000) Rear Frame And Wheel Assembly Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

Rear Frame And Wheel Assembly Parts Diagram

  • Title

1

Toro E633964

See Supercession: 1-633964-03
(Superseded to 1-633964-03)

$13.99

$

Usually ships in 3-6 days

0

2

Toro E633705

See Supercession: 1-633705
(Superseded to 1-633705)

$1533.99

$

Usually ships in 3-6 days

0

2:1

Toro E543407

See Supercession: 103-3521
(Superseded to 103-3521)

$283.99

$

In Stock, only 1 left!

0

2:2

Toro E633709

See Supercession: 104-7754
(Superseded to 104-7754)

$561.99

$

Usually ships in 3-6 days

0

2:3

Toro E633710

See Supercession: 110-4163
(Superseded to 110-4163)

$102.99

$

Usually ships in 3-6 days

0

2:4

Toro E633711

See Supercession: 110-4163
(Superseded to 110-4163)

$102.99

$

Usually ships in 3-6 days

0

2:5

Toro E543401

See Supercession: 1-543401
(Superseded to 1-543401)

$5.49

$

In Stock, only 4 left!

0

2:6

Toro E643255

See Supercession: 1-643255
(Superseded to 1-643255)

$237.99

$

In Stock, only 1 left!

0

2:7

Toro E633859

See Supercession: 1-633859
(Superseded to 1-633859)

$209.99

$

In Stock, only 1 left!

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro E633696

See Supercession: 1-633696
(Superseded to 1-633696)

$68.99

$

In Stock, Qty 19

0

10

Toro E603336

See Supercession: 1-603336
(Superseded to 1-603336)

$44.99

$

In Stock, Qty 13

0

11

Toro 99-4624

FRAME ASM

$4869.99

$

Usually ships in 3-6 days

0

11:2

Toro E513747

See Supercession: 1-513747
(Superseded to 1-513747)

$

$

Not available

11:3

Toro E633354

DISCONTINUED
(Superseded to 1-633354)

$

$

Not available

11:4

Toro E513929

See Supercession: 1-513929
(Superseded to 1-513929)

$

$

Not available

12

Toro E633970

See Supercession: 109-8972
(Superseded to 109-8972)

$493.99

$

In Stock, only 2 left!

0

12:1

Toro E633993

See Supercession: 1-633993
(Superseded to 1-633993)

$311.99

$

Usually ships in 3-6 days

0

12:2

Toro E633992

See Supercession: 109-3156
(Superseded to 109-3156)

$267.99

$

In Stock, only 3 left!

0

13

Toro 99-4623

CONSOLE ASM

$

$

Not available

13:2

Toro 99-4611

DECAL-CONTROL PANEL

$

$

Not available

13:3

Toro E633346

See Supercession: 1-633346
(Superseded to 1-633346)

$9.49

$

Usually ships in 3-6 days

0

13:4

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

Usually ships in 3-6 days

0

14

Toro E632187

See Supercession: 107-3052-03
(Superseded to 107-3052-03)

$453.99

$

Usually ships in 3-6 days

0

15

Toro E513011

See Supercession: 242-50
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

16

Toro E633293

See Supercession: 1-633293
(Superseded to 1-633293)

$

$

Not available

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-21

See Supercession: 323-39
(Superseded to 323-39)

$12.99

$

In Stock, Qty 20+

0

19

Toro 32146-18

See Supercession: 32153-1
(Superseded to 32153-1)

$4.49

$

Usually ships in 3-6 days

0

20

Toro 3296-41

NUT-LOCK NI

$6.99

$

In Stock, only 1 left!

0

21

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

22

Toro E807513

See Supercession: 1-807513
(Superseded to 1-807513)

$2.99

$

In Stock, Qty 20+

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro E513762

See Supercession: 1-513762
(Superseded to 1-513762)

$8.49

$

In Stock, only 1 left!

0

25

Toro E303335

See Supercession: 1-303335
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

26

Toro E513592

See Supercession: 1-513592
(Superseded to 1-513592)

$7.49

$

In Stock, Qty 16

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro E513658

See Supercession: 1-513658
(Superseded to 1-513658)

$7.49

$

In Stock, Qty 20+

0

30

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

31

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 74-0720

TUBE-MANUAL

$27.99

$

Usually ships in 3-6 days

0

34

Toro 93-7340

DECAL

$60.99

$

Usually ships in 3-6 days

0

42

Toro 99-4628

DECAL-Z253

$

$

Not available

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
