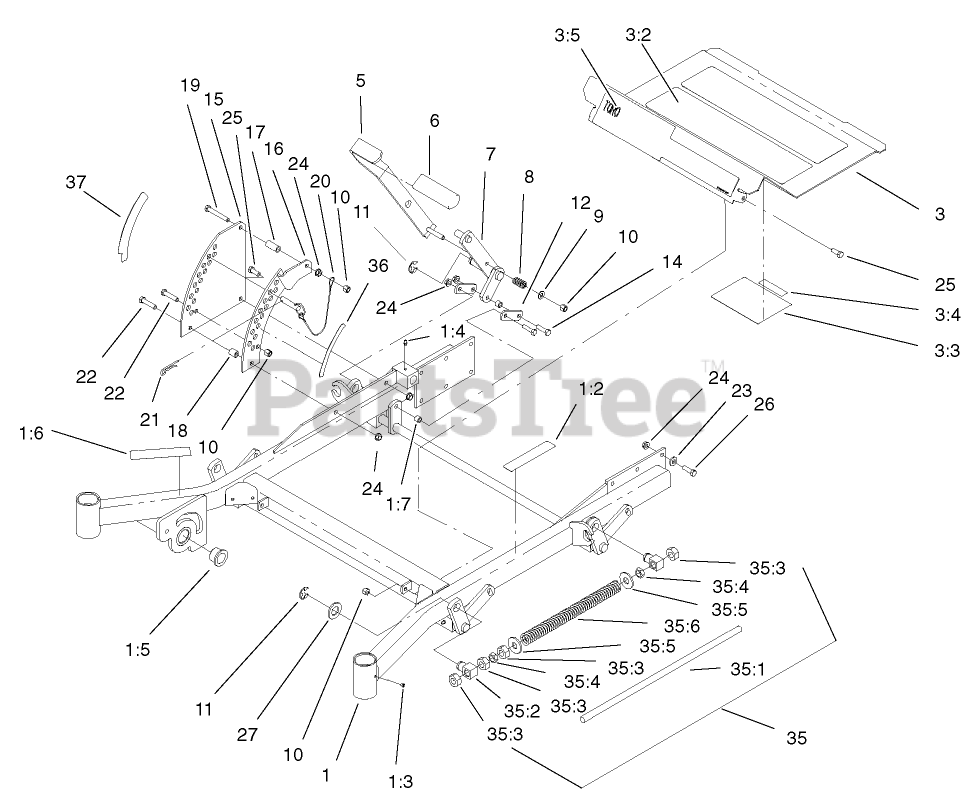

74240 (Z 286 E) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) Front Frame Assembly Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

Front Frame Assembly Parts Diagram

  • Title

1

Toro 104-5132

FRAME ASM

$

$

Not available

1:2

Toro 1-633818

DECAL-WARNING

$

$

Not available

1:3

Toro 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

1:4

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

1:5

Toro 94-1291

BUSHING

$12.99

$

In Stock, only 3 left!

0

1:6

Toro 104-7759

DECAL-WARNING

$7.49

$

Usually ships in 3-6 days

0

1:7

Toro 103-1918

BUSHING

$8.99

$

In Stock, Qty 6

0

3

Toro 100-6509

FLOORPAN ASM

$

$

Not available

3:2

Toro 1-633553

PAD-ANTISKID

$15.99

$

In Stock, Qty 6

0

3:3

Toro 1-633766

DECAL-CHECK

$

$

Not available

3:4

Toro 98-5954

DECAL-COVER, MISSING

$10.99

$

In Stock, Qty 8

0

3:5

Toro 1-633737

DECAL

$55.99

$

Usually ships in 3-6 days

0

5

Toro 103-2083-03

See Supercession: 103-2084
(Superseded to 103-2084)

$86.99

$

Usually ships in 3-6 days

0

6

Toro 1-633295

GRIP-LEVER, LIFT

$8.99

$

In Stock, Qty 8

0

7

Toro 103-2064-03

ARM-LIFT, DECK

$83.99

$

Usually ships in 3-6 days

0

8

Toro 1-633325

SPRING-COMPRESSION

$5.99

$

In Stock, only 1 left!

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

12

Toro 1-633068

ARM-LIFT, DECK

$12.99

$

Usually ships in 3-6 days

0

14

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 8

0

15

Toro 1-633889-01

PLATE-LIFT, DECK

$

$

Not available

16

Toro 1-632899-01

PLATE-LIFT, DECK

$

$

Not available

17

Toro 1-633082

BUSHING-LEVER, LIFT

$12.99

$

In Stock, only 1 left!

0

18

Toro 1-633080

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

19

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

20

Toro 1-633097

PIN-HITCH (W/LANYARD)

$27.99

$

In Stock, only 3 left!

0

21

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

27

Toro 3256-29

WASHER-FLAT

$3.49

$

In Stock, Qty 8

0

35

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

35:1

Toro 1-633096

ROD-LIFT, DECK

$27.99

$

In Stock, Qty 8

0

35:2

Toro 1-633441

SWIVEL-DECK MOUNT, REAR

$29.99

$

Usually ships in 3-6 days

0

35:3

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

35:4

Toro 3218-6

NUT-JAM

$7.49

$

In Stock, Qty 9

0

35:5

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35:6

Toro 1-633064

SPRING-SUPPORT, DECK

$37.99

$

Usually ships in 3-6 days

0

36

Toro 1-633706

DECAL-HEIGHT, DECK

$4.49

$

In Stock, Qty 7

0

37

Toro 1-633345

DECAL-HEIGHT, DECK

$

$

Not available
