74241 (Z 286 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) Spindle And Pulley Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

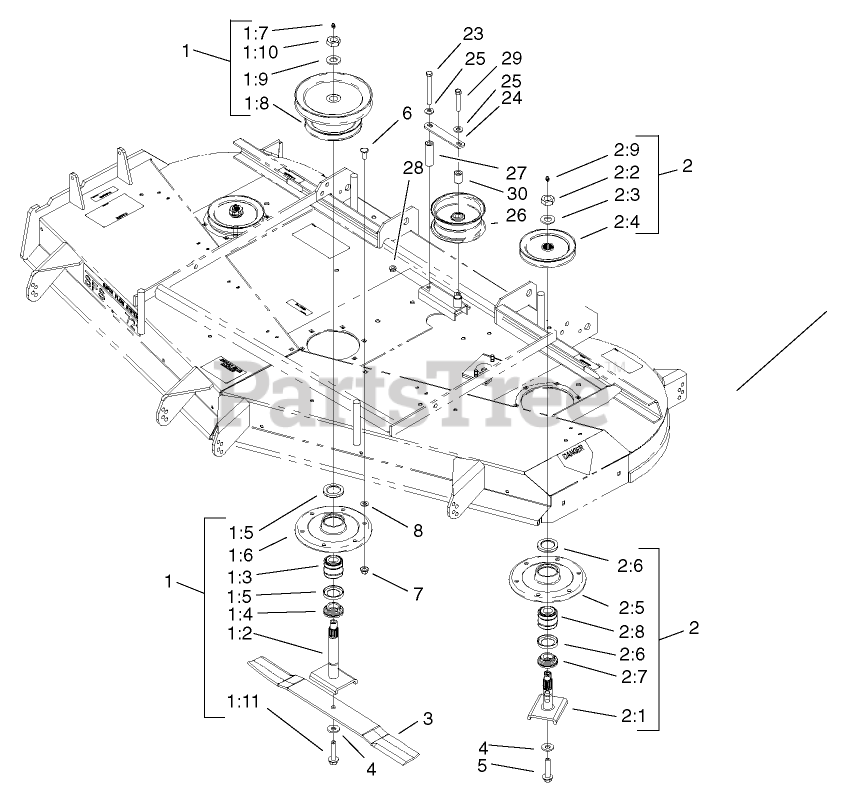

Spindle And Pulley Assembly Parts Diagram

  • Title

1

Toro 100-4321

See Supercession: 105-1691
(Superseded to 105-1691)

$959.99

$

Usually ships in 3-6 days

0

1:2

Toro 51-3551

See Supercession: 105-1686
(Superseded to 105-1686)

$208.99

$

In Stock, Qty 5

0

1:3

Toro 46-8530

BEARING ASM

$125.99

$

In Stock, Qty 17

0

1:4

Toro 27-0950

SPACER

$35.99

$

In Stock, only 2 left!

0

1:5

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 20+

0

1:6

Toro 61-4160

HOUSING-SPINDLE

$153.99

$

In Stock, only 4 left!

0

1:7

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

1:8

Toro 100-4309

PULLEY ASM

$301.99

$

Usually ships in 3-6 days

0

1:9

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 20+

0

1:10

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

1:11

Toro 92-5816

BOLT-BLADE

$8.49

$

In Stock, Qty 20+

0

2

Toro 99-4642

OUTER SPINDLE ASM

$951.99

$

Usually ships in 3-6 days

0

2:1

Toro 27-0920

SHAFT

$185.99

$

Usually ships in 3-6 days

0

2:2

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

2:3

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

2:4

Toro 99-4615

PULLEY AND HUB ASM

$137.99

$

Usually ships in 3-6 days

0

2:5

Toro 61-4160

HOUSING-SPINDLE

$153.99

$

In Stock, only 4 left!

0

2:6

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 20+

0

2:7

Toro 27-0950

SPACER

$35.99

$

In Stock, only 2 left!

0

2:8

Toro 46-8530

BEARING ASM

$125.99

$

In Stock, Qty 17

0

2:9

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

3

Toro 94-1861

See Supercession: 94-1861-03
(Superseded to 94-1861-03)

$42.99

$

In Stock, only 3 left!

0

4

Toro 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

0

5

Toro 92-5816

BOLT-BLADE

$8.49

$

In Stock, Qty 20+

0

6

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

7

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

In Stock, only 2 left!

0

24

Toro 1-653189

PLATE

$13.99

$

Usually ships in 3-6 days

0

25

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

26

Toro 1-413099

See Supercession: 116-4666
(Superseded to 116-4666)

$75.99

$

In Stock, Qty 18

0

27

Toro 99-4659

SPACER-BRACKET

$33.99

$

Usually ships in 3-6 days

0

28

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

30

Toro 1-653190

SPACER

$19.99

$

In Stock, Qty 10

0
