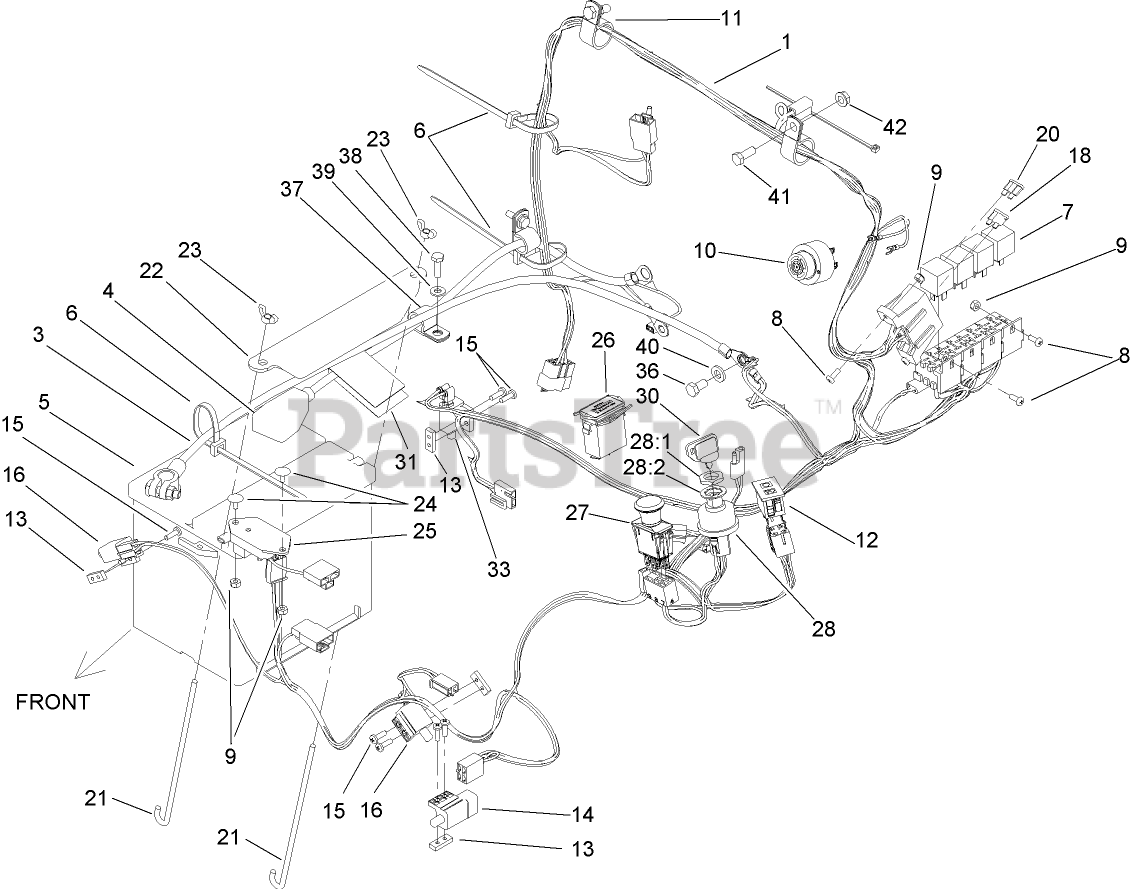

74253 (Z 580) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) Electrical Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

Electrical Assembly Parts Diagram

  • Title

1

Toro 112-1796

HARNESS-WIRE

$848.99

$

Usually ships in 3-6 days

0

3

Toro 110-5786

CABLE-BATTERY, NEGATIVE

$

$

Not available

4

Toro 110-5775

CABLE-BATTERY, POSITIVE

$

$

Not available

5

Toro 106-5187

BATTERY-DRY
(Superseded to 145-2823)

$254.99

$

Usually ships in 3-6 days

0

6

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

7

Toro 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

8

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 9

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 103-0205

ALARM-TONE, DUAL

$74.99

$

In Stock, only 2 left!

0

11

Toro 2412-74

R-CLAMP

$3.49

$

Usually ships in 3-6 days

0

12

Toro 110-5739

LAMP-WARNING

$

$

Not available

13

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

14

Toro 1-633111

SWITCH

$23.99

$

In Stock, Qty 5

0

15

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Toro 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

18

Toro 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, only 4 left!

0

20

Toro 109103

FUSE-BLADE, 30 AMP

$7.49

$

In Stock, only 4 left!

0

21

Toro 103-1312

BOLT-HOLDDOWN

$6.99

$

Usually ships in 3-6 days

0

22

Toro 103-1311-03

HOLDDOWN-BATTERY

$29.99

$

Usually ships in 3-6 days

0

23

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

24

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

25

Toro 103-5218

MODULE-DELAY, SEAT

$49.99

$

In Stock, only 2 left!

0

26

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 5

0

27

Toro 103-5221

SWITCH-PTO

$63.99

$

In Stock, Qty 7

0

28

Toro 104-2541

SWITCH ASM

$43.99

$

In Stock, Qty 20+

0

28:1

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 1 left!

0

28:2

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

30

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

31

Toro 107-9309

DECAL-INSTRUCTIONS, CHARGING

$20.99

$

Usually ships in 3-6 days

0

33

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, Qty 10

0

36

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

38

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

42

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+
