74254 (Z 580) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) 90 Degree Gearbox Assembly No. 110-5771 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

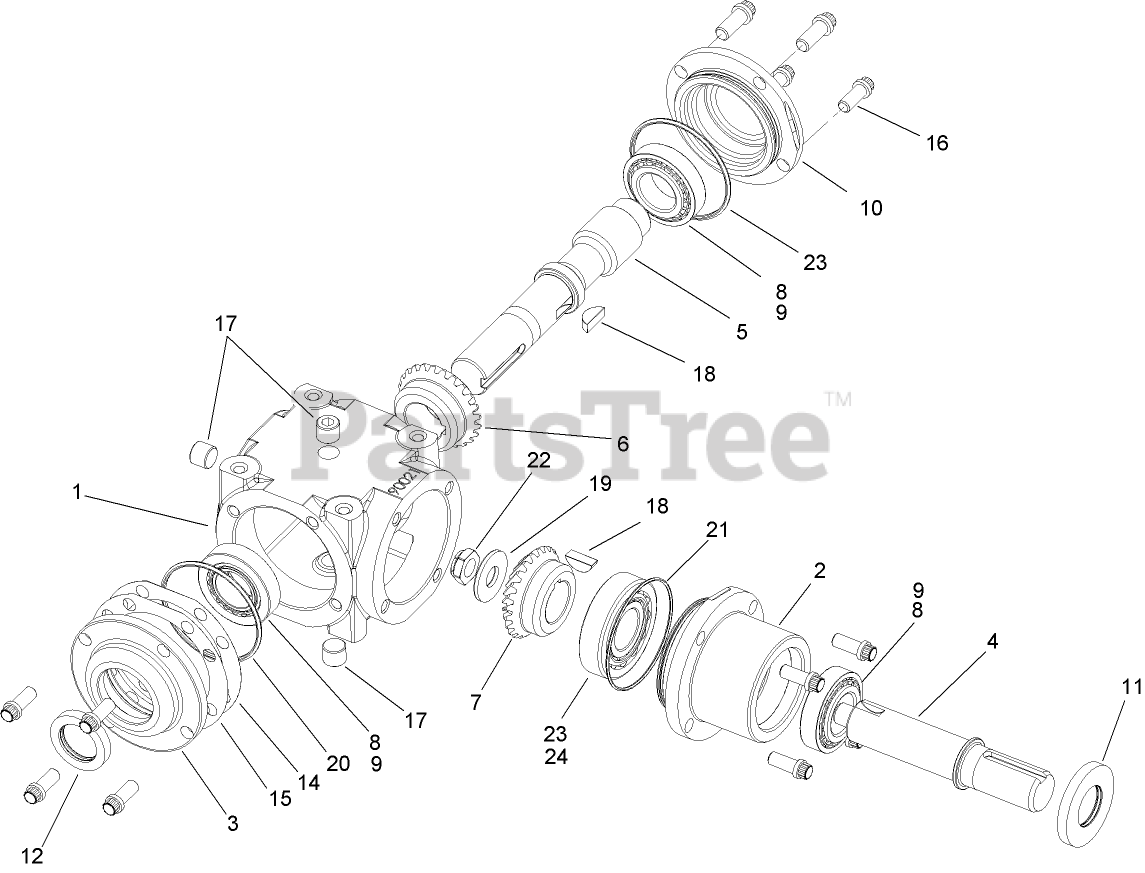

90 Degree Gearbox Assembly No. 110-5771 Parts Diagram

  • Title

1

Toro 114-4413

CASE

$

$

Currently unavailable

2

Toro 110-0853

HOUSING-PINION

$733.99

$

Usually ships in 3-6 days

0

3

Toro 114-4414

CAP, END, OPEN

$

$

Not available

4

Toro 110-0844

SHAFT-PINION

$914.99

$

Usually ships in 3-6 days

0

5

Toro 114-4415

SHAFT, CROSS

$

$

Not available

6

Toro 110-0847

GEAR-SHAFT, CROSS

$784.99

$

Usually ships in 3-6 days

0

7

Toro 110-0846

GEAR-PINION

$784.99

$

Usually ships in 3-6 days

0

8

Toro 110-0848

BEARING-CUP

$60.99

$

Usually ships in 3-6 days

0

9

Toro 110-0849

BEARING-CONE

$62.99

$

In Stock, only 2 left!

0

10

Toro 100-4574

CAP-END, CLOSED

$303.99

$

Usually ships in 3-6 days

0

11

Toro 100-4575

SEAL

$69.99

$

In Stock, only 2 left!

0

12

Toro 110-0850

See Supercession: 253-118
(Superseded to 253-118)

$21.99

$

In Stock, only 4 left!

0

14

Toro 100-4592

SHIM-BLUE, .005IN

$13.99

$

Usually ships in 3-6 days

0

15

Toro 100-4593

SHIM-GREEN, .003IN

$12.99

$

In Stock, only 2 left!

0

16

Toro 100-4578

SCREW

$15.99

$

Usually ships in 3-6 days

0

17

Toro 100-4579

PLUG

$36.99

$

Usually ships in 3-6 days

0

18

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

19

Toro 100-4581

WASHER

$49.99

$

Usually ships in 3-6 days

0

20

Toro 100-4582

O-RING

$9.49

$

In Stock, only 2 left!

0

21

Toro 110-0851

O-RING

$22.99

$

In Stock, only 2 left!

0

22

Toro 110-0852

NUT LOCK

$31.99

$

Usually ships in 3-6 days

0

23

Toro 100-5817

BEARING-CUP

$56.99

$

In Stock, only 1 left!

0

24

Toro 100-5816

BEARING-CONE

$130.99

$

In Stock, only 1 left!

0
