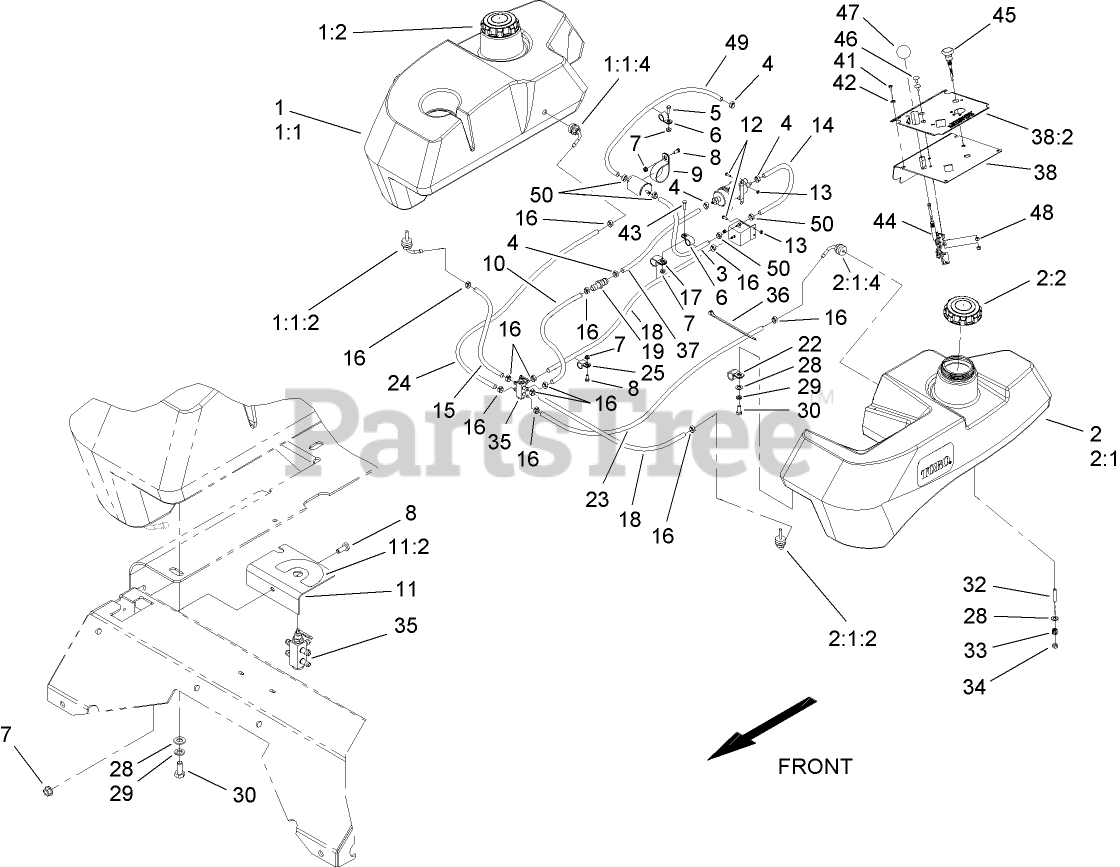

74255 (Z 588 E) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000109 - 260999999) (2006) Fuel Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

Fuel Assembly Parts Diagram

  • Title

1

Toro 105-3641

RH FUEL TANK KIT ASM

$1042.99

$

Usually ships in 3-6 days

0

1:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$41.99

$

In Stock, Qty 6

0

1:1:4

Toro 103-2615

FITTING-FUEL, BULKHEAD

$45.99

$

Usually ships in 3-6 days

0

1:2

Toro 109-0346

CAP-FUEL, GAS

$25.99

$

In Stock, Qty 8

0

2

Toro 105-3642

LH FUEL TANK KIT ASM

$

$

Not available

2:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$41.99

$

In Stock, Qty 6

0

2:1:4

Toro 103-2615

FITTING-FUEL, BULKHEAD

$45.99

$

Usually ships in 3-6 days

0

2:2

Toro 109-0346

CAP-FUEL, GAS

$25.99

$

In Stock, Qty 8

0

3

Toro 103-8279

HOSE, FUEL

$

$

Not available

4

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

In Stock, only 3 left!

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 1-603727

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

7

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 1-643241

CLIP-LOOM

$19.99

$

Usually ships in 3-6 days

0

10

Toro 99-7190

See Supercession: 109-0678
(Superseded to 109-0678)

$5.99

$

Usually ships in 3-6 days

0

11

Toro 107-2115

FUEL VALVE BRACKET ASM

$

$

Not available

11:2

Toro 107-2114

DECAL-VALVE, FUEL

$37.99

$

Usually ships in 3-6 days

0

12

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 103-2490

See Supercession: 109-2067
(Superseded to 109-2067)

$85.99

$

Usually ships in 3-6 days

0

15

Toro 103-2944

HOSE-FUEL

$

$

Not available

16

Toro 1-643293

CLAMP-HOSE, FUEL

$6.99

$

Usually ships in 3-6 days

0

17

Toro 1-643312

CLIP-LOOM

$6.99

$

In Stock, only 2 left!

0

18

Toro 63-7722

See Supercession: 109-0275
(Superseded to 109-0275)

$14.99

$

In Stock, only 1 left!

0

19

Toro 103-2595

CONNECTOR

$6.99

$

Usually ships in 3-6 days

0

22

Toro 103-0373

CLIP

$

$

Not available

23

Toro 107-1889

See Supercession: 109-0307
(Superseded to 109-0307)

$25.99

$

In Stock, only 2 left!

0

24

Toro 99-7191

See Supercession: 110-5701
(Superseded to 110-5701)

$18.99

$

In Stock, only 2 left!

0

25

Toro 1-513762

CLIP-LOOM

$8.49

$

In Stock, only 1 left!

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 1-633023

STUD

$6.99

$

In Stock, Qty 12

0

33

Toro 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

34

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

35

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$224.99

$

In Stock, only 3 left!

0

36

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

37

Toro 93-5484

See Supercession: 109-0308
(Superseded to 109-0308)

$12.99

$

Usually ships in 3-6 days

0

38

Toro 110-3886

CONTROL PANEL ASM

$248.99

$

Usually ships in 3-6 days

0

38:2

Toro 110-5721

DECAL-PANEL, CONTROL

$

$

Not available

41

Toro 3251-1

SCREW-PPH

$11.99

$

In Stock, Qty 6

0

42

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

43

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

44

Toro 110-5717

CABLE-THROTTLE

$103.99

$

In Stock, only 1 left!

0

45

Toro 110-5720

CONTROL-CHOKE, PUSH / PULL

$74.99

$

In Stock, only 4 left!

0

46

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

47

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

48

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

Toro 103-5863

Hose-Fuel

$

$

Not available

50

Toro 103-6711

CLAMP

$

$

Not available
