74263 (Z 560) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270002001 - 270999999) (2007) Steering Control Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

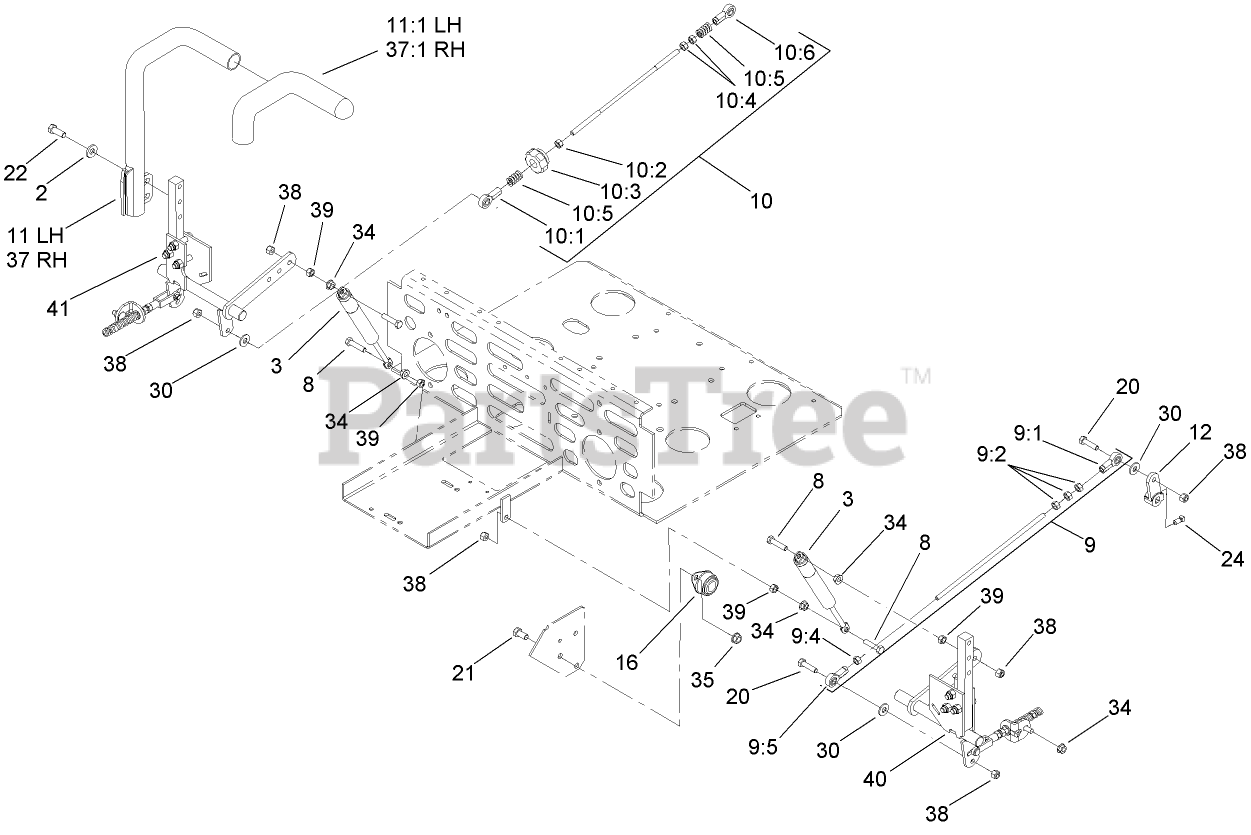

Steering Control Assembly Parts Diagram

  • Title

2

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 109-2339

DAMPER-CONTROL, MOTION

$83.99

$

In Stock, Qty 20+

0

8

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 103-4331

TRACKING ROD ASM

$

$

Not available

9:1

Toro 1-543017

BALLJOINT-RH

$23.99

$

In Stock, Qty 6

0

9:2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

9:4

Toro 1-804524

NUT

$2.99

$

Usually ships in 3-6 days

0

9:5

Toro 1-633152

BALLJOINT-LH

$23.99

$

In Stock, only 4 left!

0

10

Toro 103-4330

TRACKING ROD ASM

$101.99

$

Usually ships in 3-6 days

0

10:1

Toro 1-543017

BALLJOINT-RH

$23.99

$

In Stock, Qty 6

0

10:2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

10:3

Toro 103-3060

KNOB-TRACKING

$7.99

$

In Stock, Qty 16

0

10:4

Toro 1-804524

NUT

$2.99

$

Usually ships in 3-6 days

0

10:5

Toro 1-323245

SPRING-COMPRESSION

$7.49

$

In Stock, Qty 20+

0

10:6

Toro 1-633152

BALLJOINT-LH

$23.99

$

In Stock, only 4 left!

0

11

Toro 108-7238

LH LEVER ASM

$152.99

$

Usually ships in 3-6 days

0

11:1

Toro 106-9987

GRIP-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

12

Toro 1-632208

ARM-CONTROL, PUMP

$30.99

$

In Stock, Qty 20+

0

16

Toro 1-633102

BEARING-FLANGE, SIDE

$21.99

$

In Stock, only 3 left!

0

20

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

21

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

22

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

37

Toro 108-7237

RH LEVER ASM

$152.99

$

Usually ships in 3-6 days

0

37:1

Toro 106-9987

GRIP-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

38

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

39

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

40

Toro 109-3906

LH MOTION CONTROL ASM

$153.99

$

Usually ships in 3-6 days

0

41

Toro 109-3907

RH MOTION CONTROL ASM

$147.99

$

Usually ships in 3-6 days

0
