74264 TE (7000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) Traction Frame and Floor Pan Assembly Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

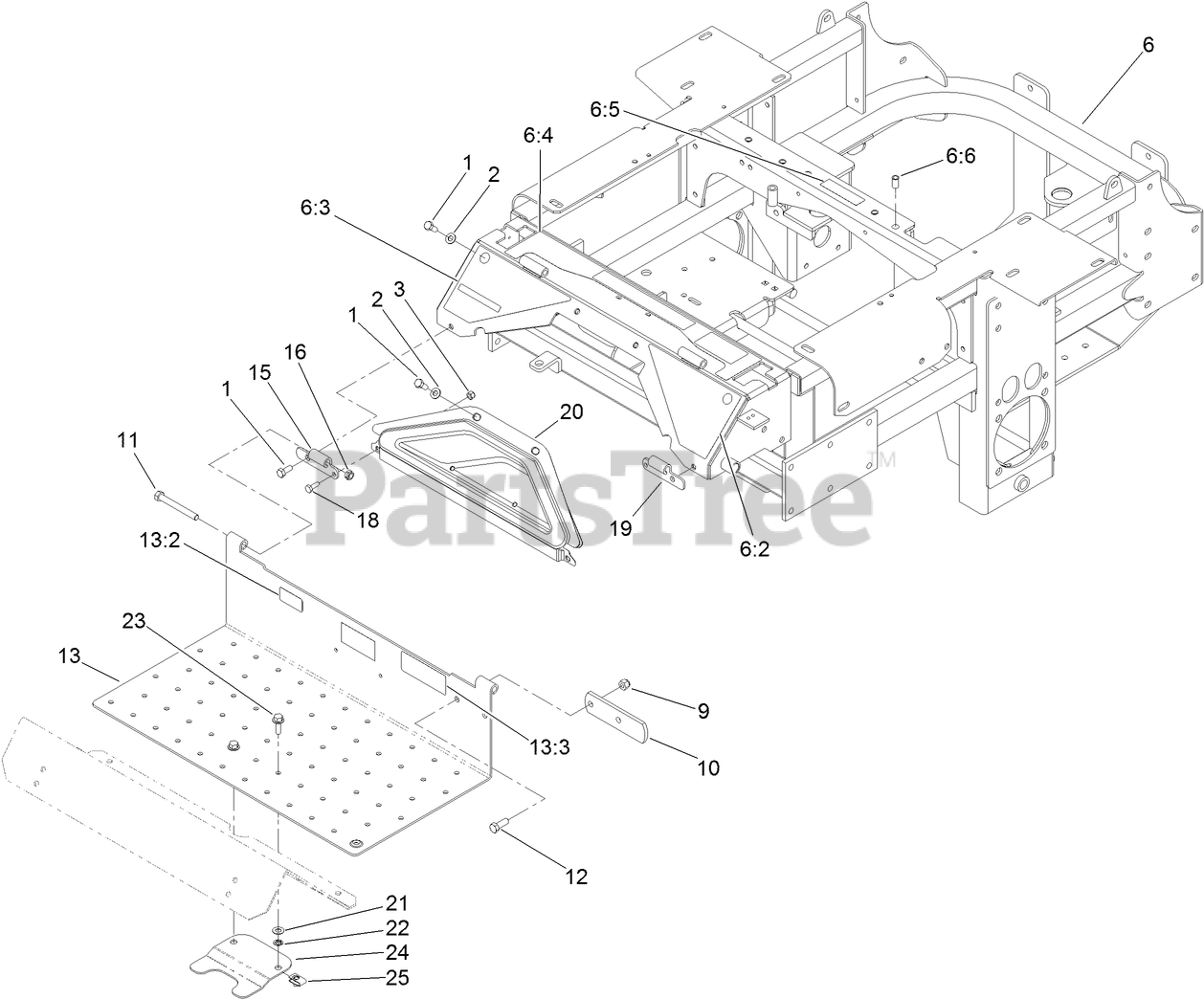

Traction Frame and Floor Pan Assembly Parts Diagram

  • Title

1

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

2

Toro 3256-70

WASHER-FLAT

$1.99

$

In Stock, Qty 7

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 115-2757

See Supercession: 131-7712
(Superseded to 131-7712)

$2873.99

$

Usually ships in 3-6 days

0

6:2

Toro 107-3963

DECAL-DANGER, LEFT

$125.99

$

Usually ships in 3-6 days

0

6:3

Toro 107-3964

DECAL-WARNING, RIGHT

$125.99

$

Usually ships in 3-6 days

0

6:4

Toro 110-0820

DECAL-CONSOLE, TOP (CE)

$78.99

$

Usually ships in 3-6 days

0

6:5

Toro 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

6:6

Toro 32148-11

NUT-CLINCH

$2.49

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 1-633964-03

STOP-BRAKE, PARK

$13.99

$

Usually ships in 3-6 days

0

11

Toro 323-20

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

12

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 115-3851

FLOOR PAN ASM

$253.99

$

Usually ships in 3-6 days

0

13:2

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

Usually ships in 3-6 days

0

13:3

Toro 121-7559

DECAL-DIESEL, BIO-READY

$8.49

$

Usually ships in 3-6 days

0

15

Toro 106-7488-03

HINGE-FLOORPAN, LH

$25.99

$

Usually ships in 3-6 days

0

16

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-7489-03

HINGE-FLOORPAN, RH

$25.99

$

Usually ships in 3-6 days

0

20

Toro 106-7498

POCKET

$38.99

$

Usually ships in 3-6 days

0

21

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

22

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

23

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

24

Toro 119-0395-03

ADAPTER-CAPTIVE

$26.99

$

Usually ships in 3-6 days

0

25

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0
