74267 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) STARTER COMPONENTS ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

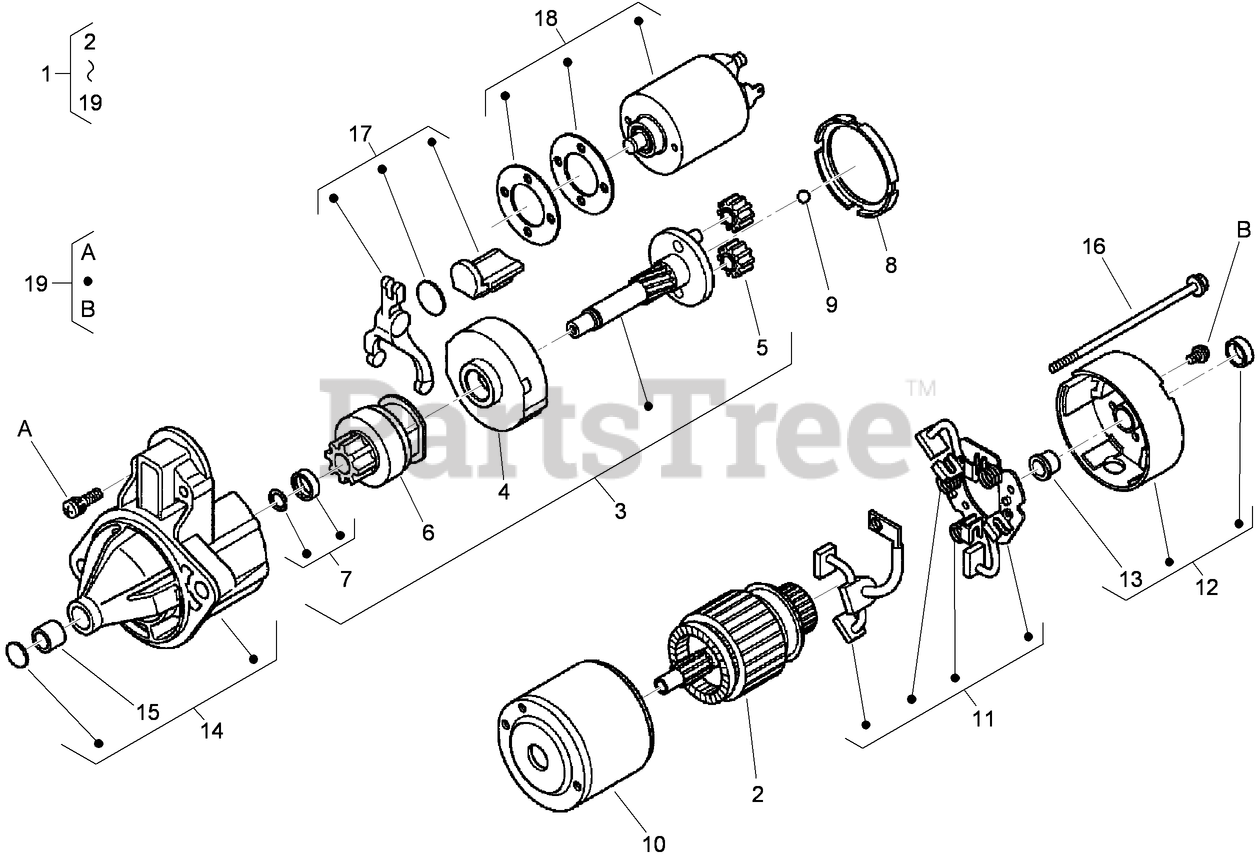

STARTER COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 110-3800

STARTER ASM

$955.99

$

Usually ships in 3-6 days

0

2

Toro 110-3801

ARMATURE

$1683.99

$

Usually ships in 3-6 days

0

3

Toro 110-3802

SHAFT ASM

$1591.99

$

Usually ships in 3-6 days

0

4

Toro 110-3803

GEAR-INTERNAL
(Superseded to 120-3142)

$63.99

$

Usually ships in 3-6 days

0

5

Toro 110-3804

GEAR-PLANETARY

$142.99

$

Usually ships in 3-6 days

0

6

Toro 110-3805

CLUTCH-RUNNING, OVER

$854.99

$

In Stock, only 1 left!

0

7

Toro 110-3806

STOPPER

$36.99

$

Usually ships in 3-6 days

0

8

Toro 110-3807

GASKET

$

$

Not available

9

Toro 110-3808

BALL

$4.99

$

Usually ships in 3-6 days

0

10

Toro 110-3809

YOKE

$1498.99

$

Usually ships in 3-6 days

0

11

Toro 110-3810

BRUSH HOLDER ASM

$677.99

$

Usually ships in 3-6 days

0

12

Toro 110-3811

REAR BRACKET ASM

$234.99

$

Usually ships in 3-6 days

0

13

Toro 110-3812

BUSHING

$20.99

$

Usually ships in 3-6 days

0

14

Toro 110-3813

FRONT BRACKET ASM

$792.99

$

Usually ships in 3-6 days

0

15

Toro 110-3814

BUSHING

$24.99

$

Usually ships in 3-6 days

0

16

Toro 110-3815

BOLT

$19.99

$

Usually ships in 3-6 days

0

17

Toro 110-3816

FORK LEVER ASM

$71.99

$

Usually ships in 3-6 days

0

18

Toro 110-3817

MAGNETIC SWITCH ASM

$473.99

$

Usually ships in 3-6 days

0

19

Toro 110-3818

SCREWS (SET OF 4)

$9.49

$

Usually ships in 3-6 days

0
