74268 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) DECK ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

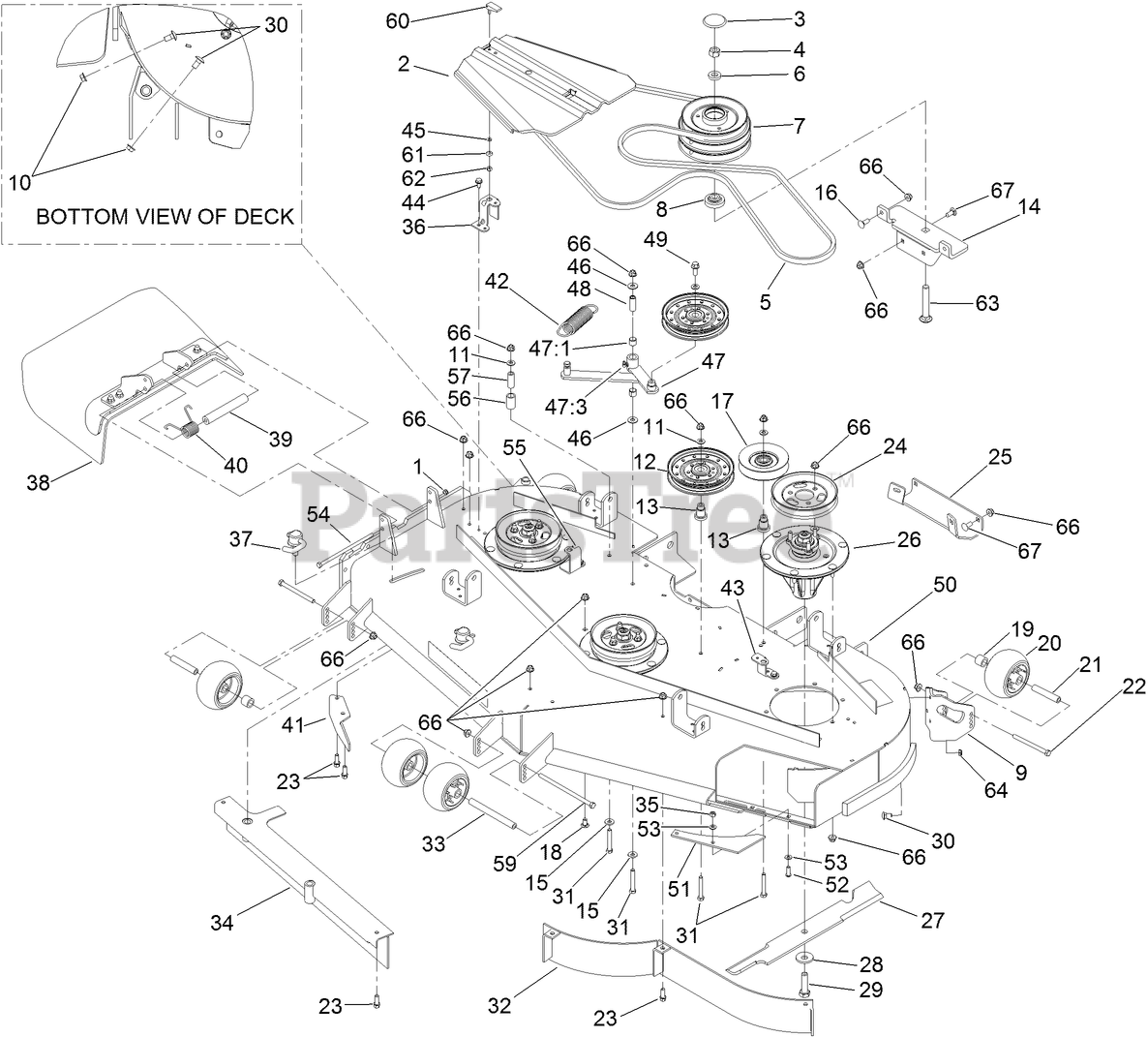

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

2

Toro 112-8664

COVER-BELT

$44.99

$

In Stock, only 4 left!

0

3

Toro 112-8049

CAP-PLASTIC

$4.49

$

In Stock, only 2 left!

0

4

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

5

Toro 107-7667

BELT-V

$89.99

$

Usually ships in 3-6 days

0

6

Toro 105-0842

SPACER

$19.99

$

Usually ships in 3-6 days

0

7

Toro 114-0210

PULLEY AND BEARING ASM

$266.99

$

In Stock, only 1 left!

0

8

Toro 112-8048

SPACER-FLANGED

$51.99

$

Usually ships in 3-6 days

0

9

Toro 106-7354-01

MOUNT-WHEEL, LH

$120.99

$

Usually ships in 3-6 days

0

10

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 116-4667

IDLER-PULLEY, FLAT
(Superseded to 132-9424)

$47.99

$

In Stock, Qty 20+

0

13

Toro 106-3214

MOUNT-PULLEY

$13.99

$

In Stock, Qty 20+

0

14

Toro 110-5893-01

MOUNTING BRACKET ASM

$

$

Not available

15

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 1-603805

PULLEY-IDLER

$67.99

$

In Stock, Qty 6

0

18

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

19

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

20

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

21

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

22

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

23

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

24

Toro 105-7735

Pulley

$47.99

$

In Stock, only 4 left!

0

25

Toro 105-8792-01

Plate-Skid

$93.99

$

Usually ships in 3-6 days

0

26

Toro 119-8560

SPINDLE ASM

$665.99

$

In Stock, Qty 10

0

27

Toro 105-7718-03

BLADE-HI FLOW

$27.99

$

In Stock, Qty 20+

0

28

Toro 103-0865

Washer-Blade Bolt, Heavy

$6.49

$

In Stock, Qty 20+

0

29

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

30

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 13

0

31

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Toro 105-7657-01

Baffle

$188.99

$

Usually ships in 3-6 days

0

33

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

34

Toro 105-7669-01

BAFFLE

$332.99

$

Usually ships in 3-6 days

0

35

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

36

Toro 119-4220-01

BRACKET-COVER

$13.99

$

In Stock, only 4 left!

0

37

Toro 107-1664

LEVER ASM

$84.99

$

In Stock, only 2 left!

0

38

Toro 108-2792

RUBBER DEFLECTOR ASM

$255.99

$

Usually ships in 3-6 days

0

39

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

40

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

41

Toro 106-3216-01

BAFFLE-DISCHARGE

$28.99

$

Usually ships in 3-6 days

0

42

Toro 105-6992

SPRING-EXTENSION

$34.99

$

Usually ships in 3-6 days

0

43

Toro 108-2177-01

BRACKET-COVER, TALL

$35.99

$

In Stock, only 2 left!

0

44

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

45

Toro 99-3058

WASHER

$3.99

$

In Stock, Qty 20+

0

46

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

47

Toro 107-9868

IDLER ARM ASM

$149.99

$

Usually ships in 3-6 days

0

47:1

Toro 103-4681

SLEEVE-BEARING

$5.99

$

In Stock, Qty 12

0

47:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

48

Toro 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

49

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

50

Toro 117-3857

DECK DECAL ASM

$

$

Not available

51

Toro 107-3137

PLATE-TURBO

$53.99

$

Usually ships in 3-6 days

0

52

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

53

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

54

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

55

Toro 119-4221-01

BRACKET-COVER

$34.99

$

Usually ships in 3-6 days

0

56

Toro 112-8051

SPACER-RUBBER

$8.49

$

Usually ships in 3-6 days

0

57

Toro 80-7710

SPACER-PIVOT, IDLER

$36.99

$

Usually ships in 3-6 days

0

59

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

60

Toro 106-6777

HANDLE-LATCH, SWELL

$29.99

$

In Stock, only 3 left!

0

61

Toro 106-6778

BUSHING-LATCH, SWELL

$1.99

$

In Stock, Qty 20+

0

62

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

63

Toro 112-8046

BOLT-CARRIAGE

$10.99

$

Usually ships in 3-6 days

0

64

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, only 4 left!

0

66

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

67

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0
