74268 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) DECK BELT DRIVE ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

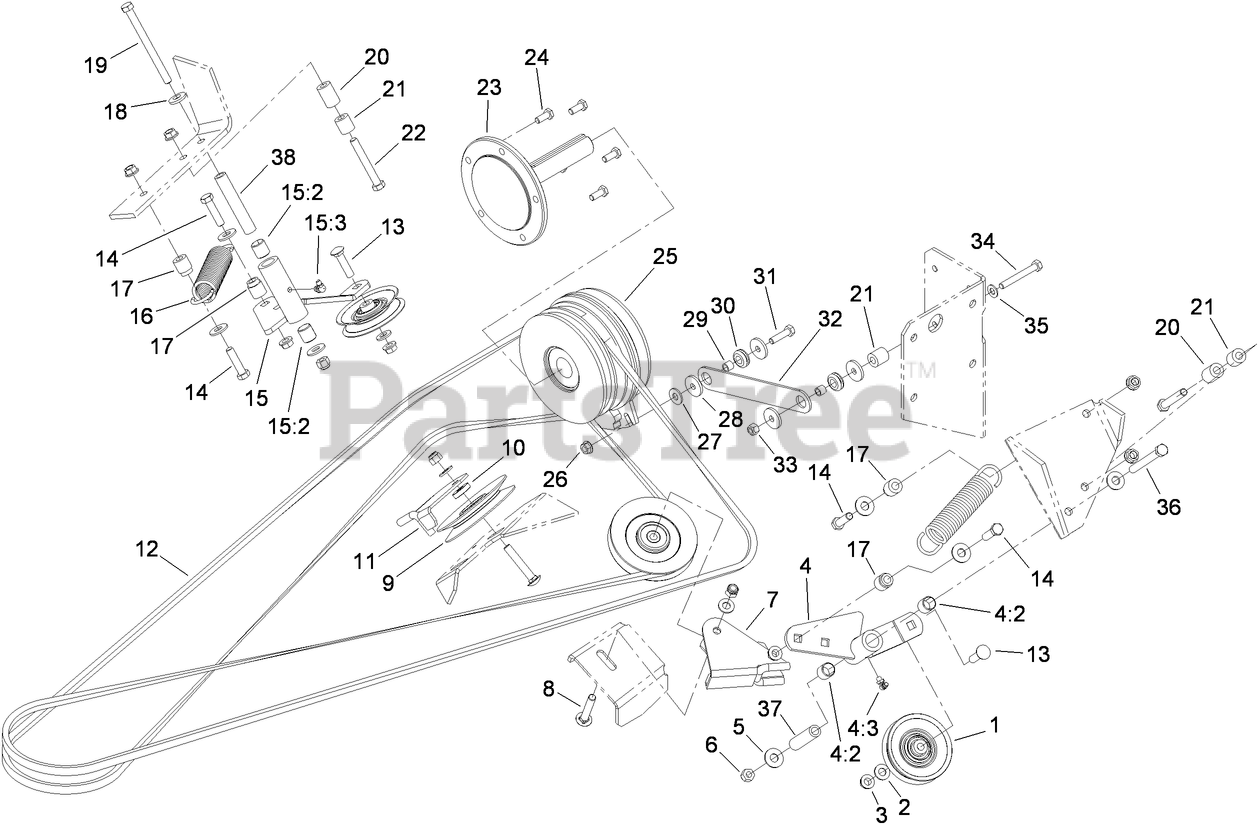

DECK BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 103-0983

SHEAVE

$75.99

$

In Stock, only 2 left!

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Toro 107-9851

LH IDLER ASM

$197.99

$

Usually ships in 3-6 days

0

4:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

4:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

5

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 103-4011-03

GUARD-BELT SHEAVE, LH

$118.99

$

Usually ships in 3-6 days

0

8

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

9

Toro 103-0984

SHEAVE

$79.99

$

In Stock, Qty 6

0

10

Toro 103-3186

SPACER-BRACKET, GUIDE

$26.99

$

In Stock, only 1 left!

0

11

Toro 103-4039-03

GUARD-BELT SHEAVE, RH

$84.99

$

Usually ships in 3-6 days

0

12

Toro 107-7738

BELT-V

$70.99

$

In Stock, Qty 6

0

13

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 107-9861

RH IDLER ASM

$192.99

$

Usually ships in 3-6 days

0

15:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

15:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

16

Toro 103-1767

Spring-Extension

$19.99

$

In Stock, only 1 left!

0

17

Toro 103-1503

SPACER-TIGHTENER, BELT

$13.99

$

Usually ships in 3-6 days

0

18

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

19

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

20

Toro 103-1361

SPACER-HYDRO CONTROL, LH

$9.49

$

Usually ships in 3-6 days

0

21

Toro 103-0193

SPACER-STRAP, CLUTCH

$13.99

$

Usually ships in 3-6 days

0

22

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

23

Toro 103-0286

SHAFT-STUB

$439.99

$

Usually ships in 3-6 days

0

24

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

25

Toro 109-6627

CLUTCH KIT

$982.99

$

In Stock, only 1 left!

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

29

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

30

Toro 1-633630

GROMMET

$6.49

$

In Stock, Qty 20+

0

31

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

32

Toro 103-0192-03

STRAP-CLUTCH / BRAKE

$18.99

$

Usually ships in 3-6 days

0

33

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

35

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

36

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

37

Toro 103-0919

BUSHING-TIGHTENER, PIVOT

$21.99

$

In Stock, only 2 left!

0

38

Toro 103-0040

BUSHING-TIGHTENER, PIVOT

$19.99

$

In Stock, only 3 left!

0
