74268 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) ELECTRICAL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

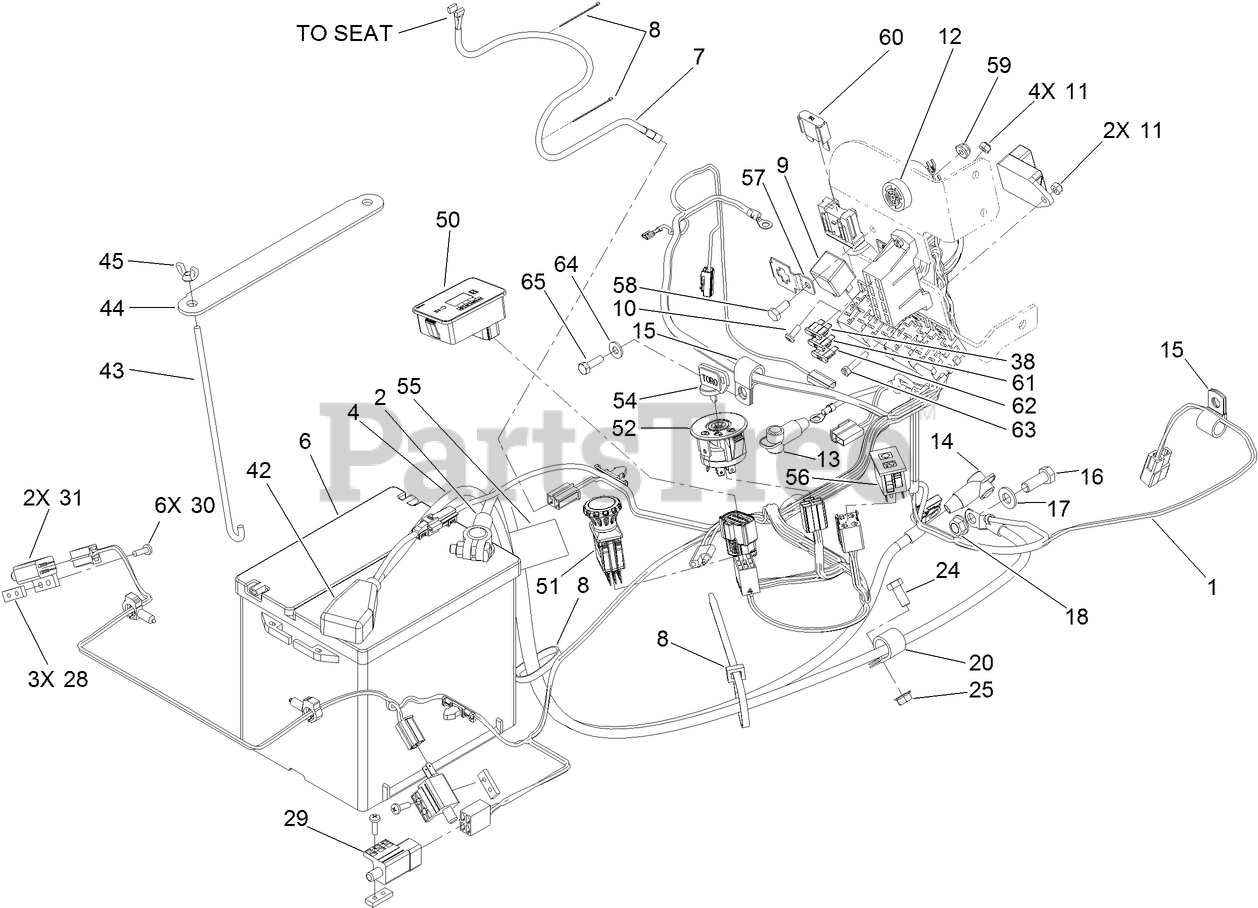

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-3817

HARNESS-ELECTRICAL

$830.99

$

Usually ships in 3-6 days

0

2

Toro 117-3851

CABLE-BATTERY, NEGATIVE

$

$

Not available

4

Toro 103-1160

CABLE-STARTER

$134.99

$

Usually ships in 3-6 days

0

6

Toro 106-5187

BATTERY-DRY
(Superseded to 145-2823)

$254.99

$

Usually ships in 3-6 days

0

7

Toro 103-1227

HARNESS-WIRING, SEAT

$26.99

$

Usually ships in 3-6 days

0

8

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

9

Toro 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

10

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 9

0

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 103-0205

ALARM-TONE, DUAL

$74.99

$

In Stock, only 2 left!

0

13

Toro 1-643178

CAP-INSULATOR, RED

$5.99

$

Usually ships in 3-6 days

0

14

Toro 103-1420

INSULATOR-STARTER

$7.49

$

Usually ships in 3-6 days

0

15

Toro 1-603727

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

16

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

20

Toro 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

29

Toro 1-633111

SWITCH

$23.99

$

In Stock, Qty 5

0

30

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

31

Toro 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

38

Toro 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

42

Toro 103-1340

INSULATOR-TERMINAL, BATTERY

$5.99

$

Usually ships in 3-6 days

0

43

Toro 103-1312

Bolt-Holddown

$6.99

$

Usually ships in 3-6 days

0

44

Toro 103-1311-03

HOLDDOWN-BATTERY

$29.99

$

Usually ships in 3-6 days

0

45

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

50

Toro 117-3884

MODULE ASM
(Superseded to 116-5609)

$181.99

$

In Stock, only 2 left!

0

51

Toro 116-0124

SWITCH-PTO, 10 AMP
(Superseded to 135-3653)

$75.99

$

In Stock, Qty 20+

0

52

Toro 117-2221

SWITCH-IGNITION
(Superseded to 137-4100)

$30.99

$

In Stock, Qty 20+

0

54

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

55

Toro 107-9309

DECAL-INSTRUCTIONS, CHARGING

$20.99

$

Usually ships in 3-6 days

0

56

Toro 100-8071

LAMP-WARNING

$46.99

$

Usually ships in 3-6 days

0

57

Toro 114-5502

CLIP-FUSE

$17.99

$

Usually ships in 3-6 days

0

58

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

59

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

60

Toro 94-8002

FUSE-BLADE, 50 AMP

$30.99

$

Usually ships in 3-6 days

0

61

Toro 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, only 4 left!

0

62

Toro 109103

FUSE-BLADE, 30 AMP

$7.49

$

In Stock, only 4 left!

0

63

Toro 32105-12

SCREW

$2.99

$

In Stock, only 1 left!

0

64

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

65

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0
