74268 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) ENGINE FRAME, CONSOLE AND FLOOR PAN ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

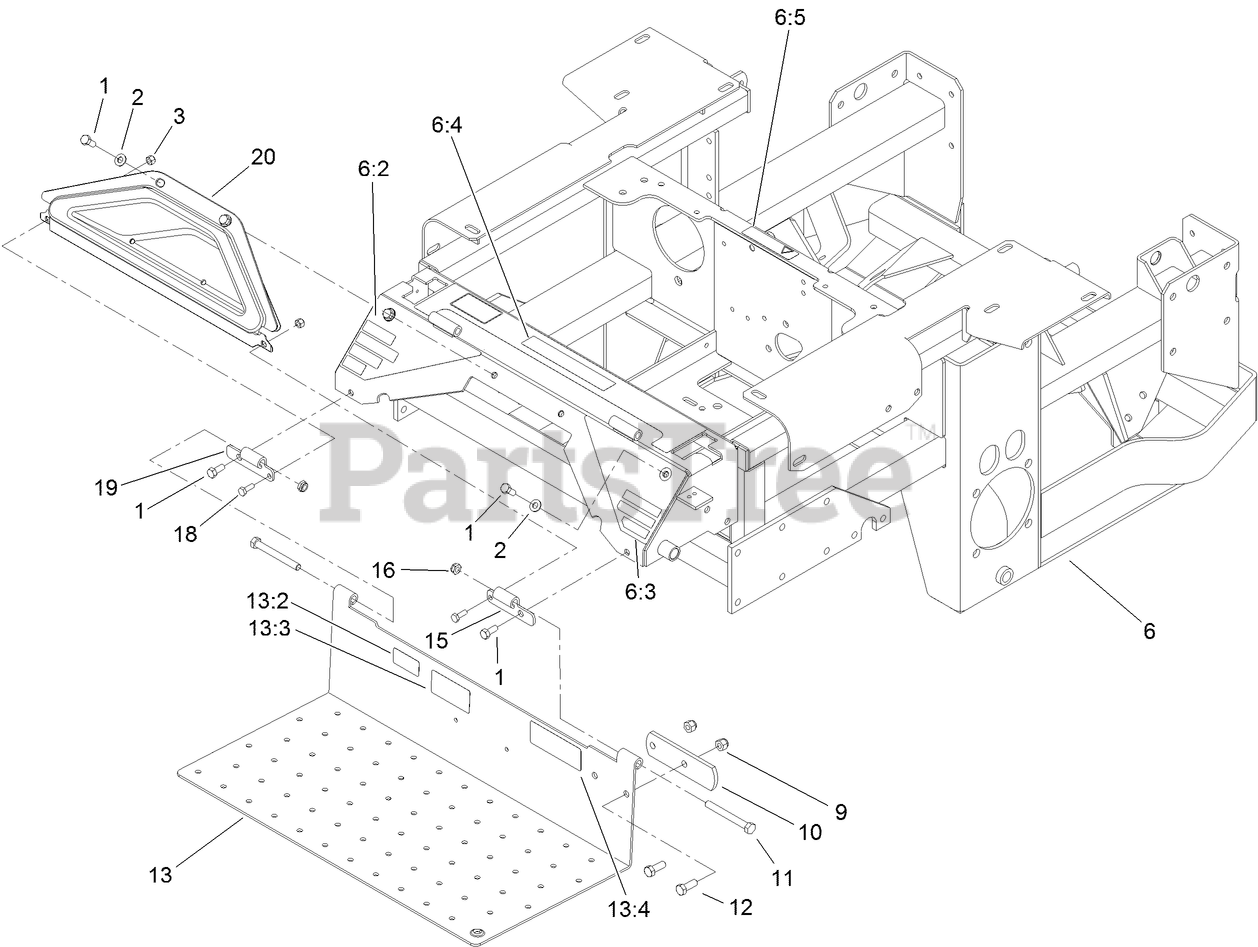

ENGINE FRAME, CONSOLE AND FLOOR PAN ASSEMBLY Parts Diagram

  • Title

1

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

2

Toro 3256-70

WASHER-FLAT

$1.99

$

In Stock, Qty 8

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 115-3551

ENGINE FRAME ASM

$4775.99

$

Usually ships in 3-6 days

0

6:2

Toro 106-9989

Decal-Warning

$

$

Not available

6:3

Toro 106-7492

Decal-Danger

$22.99

$

Usually ships in 3-6 days

0

6:4

Toro 107-9866

DECAL-CONSOLE, TOP

$67.99

$

Usually ships in 3-6 days

0

6:5

Toro 98-5954

DECAL-COVER, MISSING

$10.99

$

In Stock, Qty 8

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 1-633964-03

STOP-BRAKE, PARK

$13.99

$

Usually ships in 3-6 days

0

11

Toro 323-20

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

12

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 115-3852

FLOOR PAN ASM

$

$

Not available

13:2

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

Usually ships in 3-6 days

0

13:3

Toro 107-1864

Decal-Location, Manual

$9.49

$

Usually ships in 3-6 days

0

13:4

Toro 121-7559

DECAL-DIESEL, BIO-READY

$8.49

$

Usually ships in 3-6 days

0

15

Toro 106-7488-03

Hinge-Floorpan, LH

$25.99

$

Usually ships in 3-6 days

0

16

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-7489-03

Hinge-Floorpan, RH

$25.99

$

Usually ships in 3-6 days

0

20

Toro 106-7498

Pocket

$38.99

$

Usually ships in 3-6 days

0
