74268 TE (Z 597-D) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) Deck Connection Assembly Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

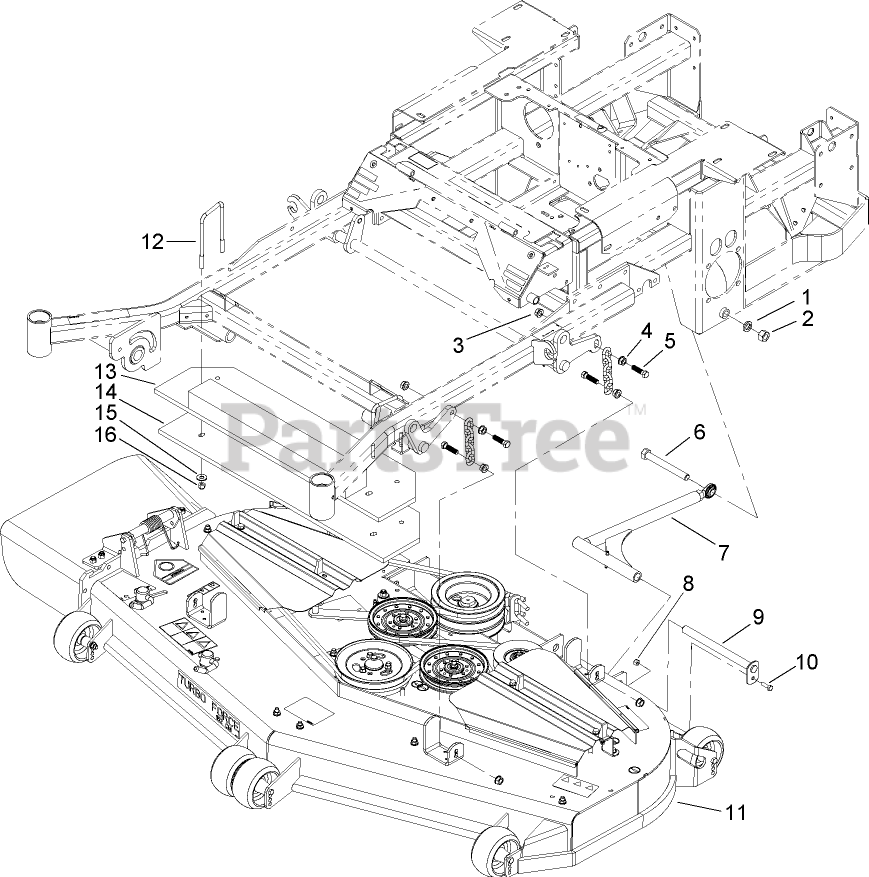

Deck Connection Assembly Parts Diagram

  • Title

1

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

3

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

4

Toro 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, only 1 left!

0

5

Toro 1-800811

SCREW-CAP, HH

$12.99

$

In Stock, only 3 left!

0

6

Toro 327-28

SCREW-HH

$19.99

$

In Stock, Qty 5

0

7

Toro 103-1356

STRUT ASM

$362.99

$

In Stock, Qty 5

0

8

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 1-632199-01

PIN-STRUT

$38.99

$

In Stock, Qty 10

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

12

Toro 100-2339

U-BOLT

$

$

Not available

13

Toro 107-9874-01

WEIGHT

$875.99

$

Usually ships in 3-6 days

0

14

Toro 107-9854-01

BAR-WEIGHT

$350.99

$

Usually ships in 3-6 days

0

15

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
