74269 (7000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) Hydraulic System Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

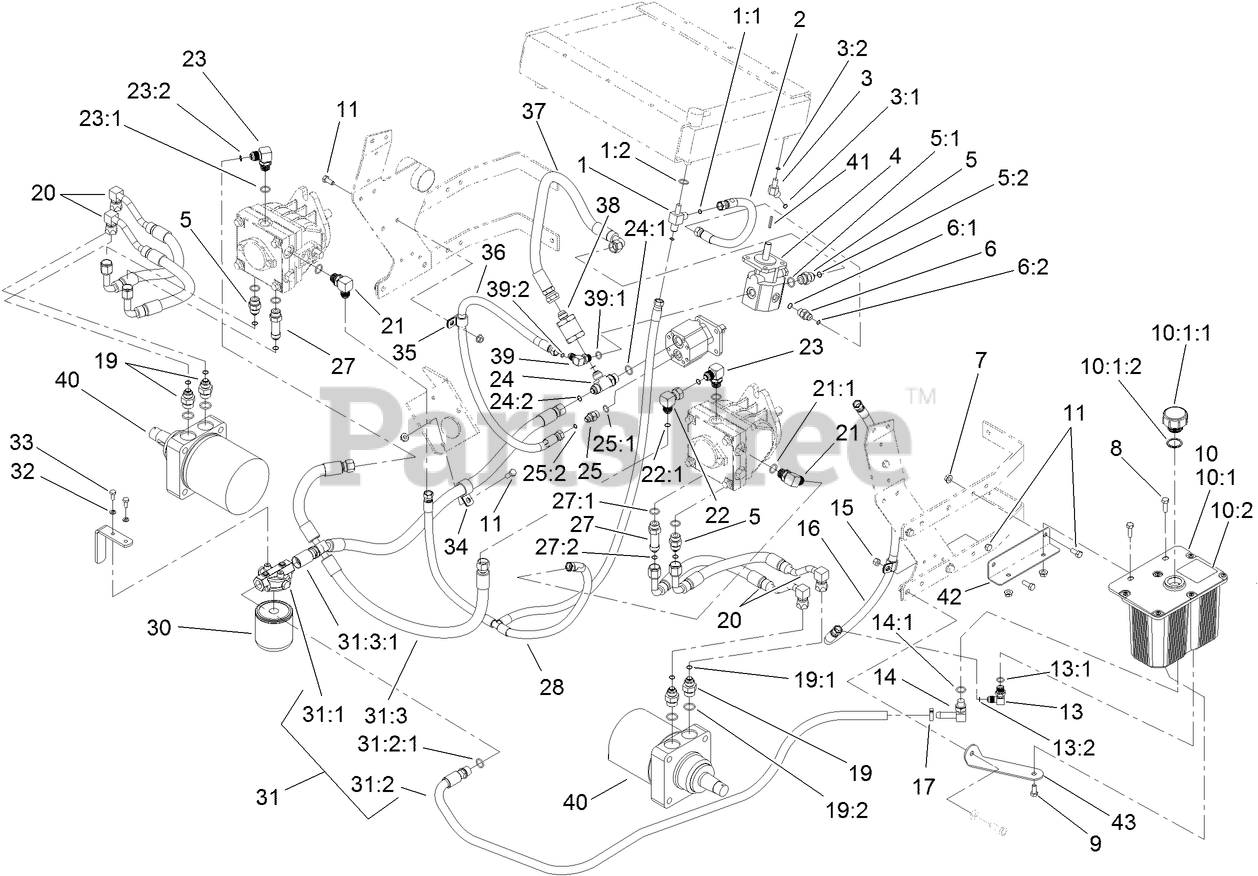

Hydraulic System Assembly Parts Diagram

  • Title

1

Toro 108-5998

FITTING-HYD, STRAIGHT TEE

$

$

Not available

1:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

1:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

2

Toro 103-2173

FAN CASE DRAIN HOSE ASM

$44.99

$

Usually ships in 3-6 days

0

3

Toro 108-5999

FITTING-HYD, 45 ELBOW

$

$

Not available

3:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

3:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

4

Toro 103-7430

MOTOR-FAN, COOLING

$1042.99

$

Usually ships in 3-6 days

0

5

Toro 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, only 4 left!

0

5:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

5:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Toro 103-2157

FITTING-STRAIGHT

$23.99

$

Usually ships in 3-6 days

0

6:1

Toro 1-603923

O-RING

$3.49

$

Usually ships in 3-6 days

0

6:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 109-0582

HYDRAULIC TANK ASM

$468.99

$

Usually ships in 3-6 days

0

10:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

10:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$37.99

$

In Stock, Qty 20+

0

10:1:2

Toro 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

10:2

Toro 1-523552

DECAL-TANK, HYD

$2.49

$

In Stock, Qty 11

0

11

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

13

Toro 103-2155

FITTING-90 DEG

$34.99

$

Usually ships in 3-6 days

0

13:1

Toro 1-603921

See Supercession: 237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

13:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

14

Toro 108-5316

FITTING-ELBOW, 90 DEG

$53.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 103-2174

TANK RETURN HOSE ASM

$57.99

$

Usually ships in 3-6 days

0

17

Toro 103-2104

CLAMP-HOSE

$

$

Not available

19

Toro 1-603991

FITTING-STRAIGHT

$25.99

$

In Stock, only 4 left!

0

19:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

19:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

20

Toro 103-4679

HYD HOSE ASM

$

$

Not available

21

Toro 103-1014

FITTING-ELBOW, 90 DEG

$44.99

$

Usually ships in 3-6 days

0

21:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

22

Toro 103-2315

FITTING-90 DEG

$55.99

$

Usually ships in 3-6 days

0

22:1

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

23

Toro 103-2153

FITTING-90 DEG

$54.99

$

Usually ships in 3-6 days

0

23:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

23:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

24

Toro 103-2159

FITTING-TEE

$

$

Not available

24:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

24:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

25

Toro 103-2156

FITTING-STRAIGHT

$46.99

$

In Stock, only 3 left!

0

25:1

Toro 1-603921

See Supercession: 237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

25:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

27

Toro 103-1940

ADAPTER-STR, LONG

$27.99

$

In Stock, only 3 left!

0

27:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

27:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

28

Toro 103-2172

CASE DRAIN HOSE ASM

$132.99

$

Usually ships in 3-6 days

0

30

Toro 23-9740

FILTER-OIL, HYDRAULIC

$15.99

$

In Stock, only 2 left!

0

31

Toro 103-5120

CHARGE HOSE ASM

$

$

Not available

31:1

Toro 103-2259

HEAD-FILTER

$

$

Not available

31:2

Toro 103-5121

FILTER INLET HOSE ASM

$137.99

$

Usually ships in 3-6 days

0

31:2:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

31:3

Toro 103-2269

PUMP INLET HOSE ASM

$304.99

$

Usually ships in 3-6 days

0

31:3:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

32

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

33

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-643312

CLIP-LOOM

$6.99

$

In Stock, only 2 left!

0

35

Toro 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

36

Toro 103-2148

AUXILLARY PUMP HOSE ASM

$108.99

$

Usually ships in 3-6 days

0

37

Toro 1-323241

HOSE-PRESSURE, HIGH

$96.99

$

Usually ships in 3-6 days

0

38

Toro 103-3110

FILTER-IN LINE, 50 MICRON

$140.99

$

Usually ships in 3-6 days

0

39

Toro 103-2155

FITTING-90 DEG

$34.99

$

Usually ships in 3-6 days

0

39:1

Toro 1-603921

See Supercession: 237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

39:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

40

Toro 103-2489

MOTOR-WHEEL, HYD

$1882.99

$

Usually ships in 3-6 days

0

41

Toro 32150-1

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

42

Toro 112-1768-03

BRACKET-TANK MOUNT, UPPER

$

$

Not available

43

Toro 112-1778-03

BRACKET-TANK MOUNT, LOWER

$

$

Not available
