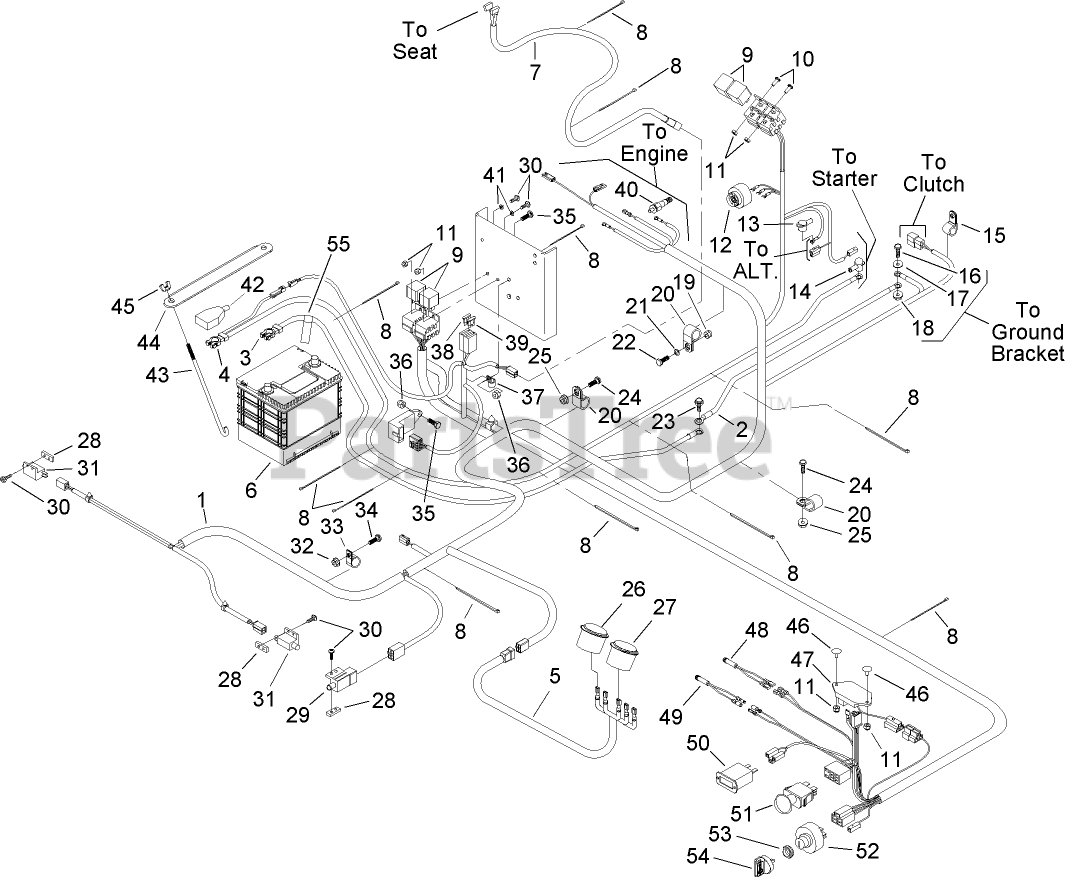

74269 (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) Electrical Component Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

Electrical Component Assembly Parts Diagram

  • Title

1

Toro 103-4340

HARNESS-WIRE

$

$

Not available

2

Toro 103-1349

CABLE-ENGINE NEGATIVE

$20.99

$

Usually ships in 3-6 days

0

3

Toro 103-1159

CABLE-BATTERY NEGATIVE

$31.99

$

Usually ships in 3-6 days

0

4

Toro 103-1160

CABLE-STARTER

$134.99

$

Usually ships in 3-6 days

0

5

Toro 103-4339

HARNESS-GAUGE

$

$

Not available

6

Toro 106-5187

BATTERY-DRY
(Superseded to 145-2823)

$254.99

$

Usually ships in 3-6 days

0

7

Toro 103-1227

HARNESS-WIRING, SEAT

$26.99

$

Usually ships in 3-6 days

0

8

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

9

Toro 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

10

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 9

0

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 103-0205

ALARM-TONE, DUAL

$74.99

$

In Stock, only 2 left!

0

13

Toro 1-643178

CAP-INSULATOR, RED

$5.99

$

Usually ships in 3-6 days

0

14

Toro 103-1420

INSULATOR-STARTER

$7.49

$

Usually ships in 3-6 days

0

15

Toro 1-603727

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

16

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

20

Toro 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 1-643037

GAUGE-VOLTMETER

$231.99

$

In Stock, only 1 left!

0

27

Toro 1-643021

GAUGE-TEMPERATURE

$156.99

$

Usually ships in 3-6 days

0

28

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

29

Toro 1-633111

SWITCH

$23.99

$

In Stock, Qty 5

0

30

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

31

Toro 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

32

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

33

Toro 1-323229

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

34

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

37

Toro 1-513762

CLIP-LOOM

$8.49

$

In Stock, only 1 left!

0

38

Toro 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

39

Toro 103-1368

FUSE-40 AMP

$5.99

$

Usually ships in 3-6 days

0

40

Toro 103-0949

SENDER-TEMPERATURE

$86.99

$

Usually ships in 3-6 days

0

41

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 103-1340

INSULATOR-TERMINAL, BATTERY

$5.99

$

Usually ships in 3-6 days

0

43

Toro 103-1312

BOLT-HOLDDOWN

$6.99

$

Usually ships in 3-6 days

0

44

Toro 103-1311-03

HOLDDOWN-BATTERY

$29.99

$

Usually ships in 3-6 days

0

45

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

46

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

47

Toro 103-5218

MODULE-DELAY, SEAT

$49.99

$

In Stock, only 2 left!

0

48

Toro 1-643267

INDICATOR-LED, RED

$27.99

$

In Stock, only 2 left!

0

49

Toro 103-1320

INDICATOR-LED, AMBER

$45.99

$

Usually ships in 3-6 days

0

50

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 5

0

51

Toro 103-5221

SWITCH-PTO

$63.99

$

In Stock, Qty 7

0

52

Toro 103-0206

SWITCH-STARTING, KEY
(Superseded to 109-4736)

$45.99

$

In Stock, Qty 15

0

53

Toro 103-0498

NUT-SWITCH, IGNITION

$3.99

$

In Stock, Qty 10

0

54

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

55

Toro 107-9309

DECAL-INSTRUCTIONS, CHARGING

$20.99

$

Usually ships in 3-6 days

0
