74271 (Z 558) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270002001 - 270999999) (2007) Front Frame Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

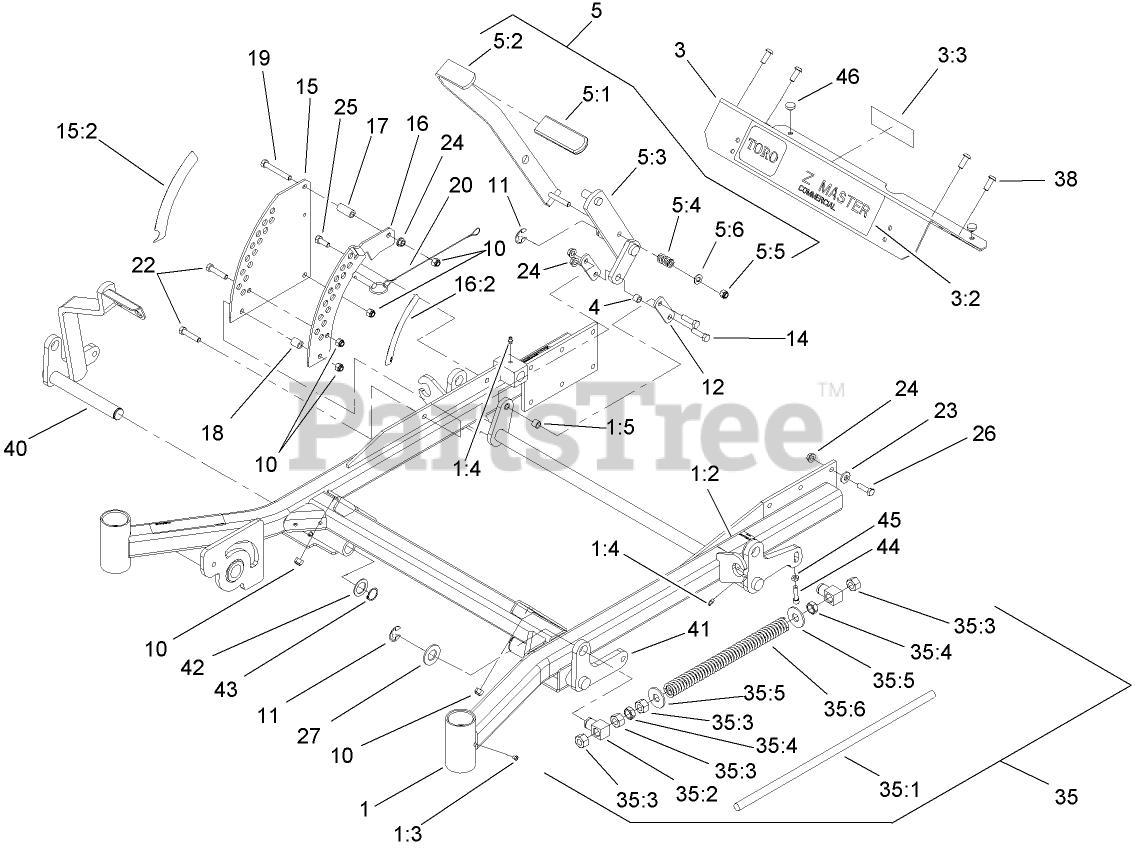

Front Frame Assembly Parts Diagram

  • Title

1

Toro 106-8978

FRAME ASM

$1921.99

$

Usually ships in 3-6 days

0

1:2

Toro 107-1857

DECAL-BRAKE, PARKING

$7.49

$

Usually ships in 3-6 days

0

1:3

Toro 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

1:4

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

1:5

Toro 103-1918

BUSHING

$8.99

$

In Stock, Qty 6

0

3

Toro 106-9981

FOOTREST

$241.99

$

Usually ships in 3-6 days

0

3:2

Toro 106-7451

DECAL

$34.99

$

In Stock, only 1 left!

0

3:3

Toro 107-2112

DECAL-WARNING

$22.99

$

In Stock, only 2 left!

0

4

Toro 103-1918

BUSHING

$8.99

$

In Stock, Qty 6

0

5

Toro 110-5860

DECK LIFT HANDLE ASM

$131.99

$

Usually ships in 3-6 days

0

5:1

Toro 1-633295

GRIP-LEVER, LIFT

$8.99

$

In Stock, Qty 8

0

5:2

Toro 103-2083

See Supercession: 103-2084
(Superseded to 103-2084)

$86.99

$

Usually ships in 3-6 days

0

5:3

Toro 103-2064

See Supercession: 103-2064-03
(Superseded to 103-2064-03)

$83.99

$

Usually ships in 3-6 days

0

5:4

Toro 1-633325

SPRING-COMPRESSION

$5.99

$

In Stock, only 1 left!

0

5:5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5:6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

12

Toro 1-633068

ARM-LIFT, DECK

$12.99

$

Usually ships in 3-6 days

0

14

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 8

0

15

Toro 110-0833

PLATE-DECK LIFT, OUTER

$

$

Not available

15:2

Toro 107-1860

DECAL-HEIGHT, DECK

$12.99

$

In Stock, only 2 left!

0

16

Toro 110-0834

PLATE-DECK LIFT, INNER

$

$

Not available

16:2

Toro 107-1861

DECAL-HEIGHT, DECK

$10.99

$

In Stock, only 2 left!

0

17

Toro 1-633082

BUSHING-LEVER, LIFT

$12.99

$

In Stock, only 1 left!

0

18

Toro 1-633080

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

19

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

20

Toro 106-9951

HITCH PIN ASM

$55.99

$

In Stock, only 1 left!

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

27

Toro 3256-29

WASHER-FLAT

$3.49

$

In Stock, Qty 8

0

35

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

35:1

Toro 1-633096

ROD-LIFT, DECK

$27.99

$

In Stock, Qty 8

0

35:2

Toro 1-633441

SWIVEL-DECK MOUNT, REAR

$29.99

$

Usually ships in 3-6 days

0

35:3

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

35:4

Toro 3218-6

NUT-JAM

$7.49

$

In Stock, Qty 9

0

35:5

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35:6

Toro 1-633064

SPRING-SUPPORT, DECK

$37.99

$

Usually ships in 3-6 days

0

38

Toro 3274-94

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0

40

Toro 108-7786-01

LIFT-DECK, RH FRONT

$192.99

$

Usually ships in 3-6 days

0

41

Toro 106-8984-01

LIFT-DECK, LH

$181.99

$

Usually ships in 3-6 days

0

42

Toro 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

43

Toro 32151-29

RING-RETAINING

$5.99

$

In Stock, only 2 left!

0

44

Toro 3274-18

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

45

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

46

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0
