74271 (Z 558) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270002001 - 270999999) (2007) Roll-Over Protection System Assembly Parts Diagram
52" Z Master Zero-Turn Mower, Side-Discharge Deck

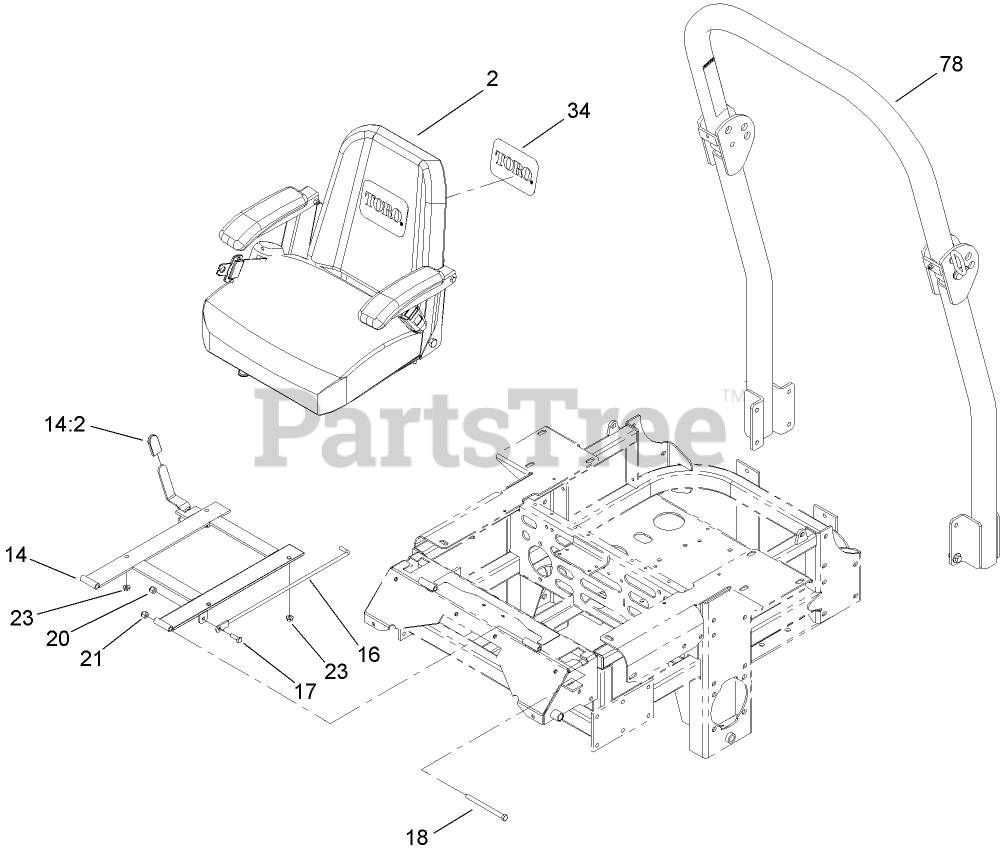

Roll-Over Protection System Assembly Parts Diagram
Toro 110-0446
SEAT ASM
$1431.99
$
Usually ships in 3-6 days
Toro 110-5850
SEAT FRAME AND LATCH ASM
$184.99
$
Usually ships in 3-6 days
Toro 103-4434
GRIP-LEVER
$2.99
$
In Stock, only 4 left!
Toro 1-633293
ROD-HOLDUP, SEAT
$
$
Not available
Toro 322-5
SCREW-HH
$0.99
$
In Stock, Qty 20+
Toro 323-39
SCREW-HH
$12.99
$
In Stock, Qty 20+
Toro 3296-29
NUT-LOCK, NI
$2.99
$
In Stock, Qty 20+
Toro 3296-39
NUT-LOCK, NI
$2.99
$
In Stock, Qty 20+
Toro 32128-20
NUT-HF
$1.49
$
In Stock, Qty 20+
Toro 99-4693
DECAL
$27.99
$
In Stock, only 2 left!
Toro 108-1097
ROPS ASM
$
$
Not available
