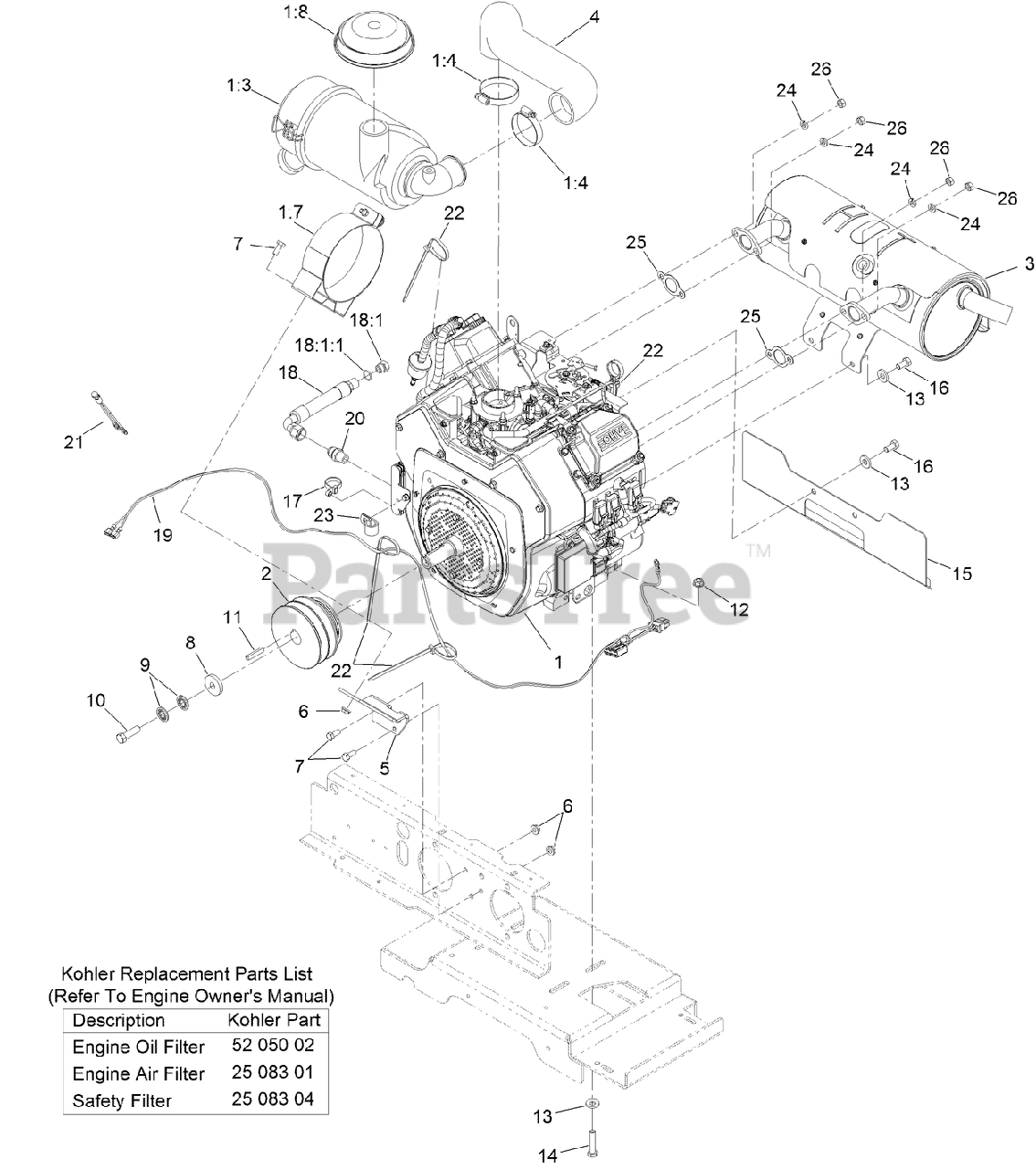

74312 (8000) - Toro 48" Z Master Zero-Turn Mower (SN: 402080000 - 403226947) Engine Assembly Parts Diagram

48" Z Master Zero-Turn Mower

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, ECH730-3064

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

ENGINE-KOHLER, ECH730-3064

Note: Not serviced separately

$

$

Not available

1:3

Toro 103-8569

AIR CLEANER CANISTER ASM

$492.99

$

Usually ships in 3-6 days

0

1:4

Toro 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

1:7

Toro 103-1058

BRACKET-FILTER, AIR

$120.99

$

Usually ships in 3-6 days

0

1:8

Toro 100-2436

HOOD-CLEANER, 2" AIR INTAKE

$78.99

$

Usually ships in 3-6 days

0

2

Toro 103-6731

SHEAVE-ENGINE

$

$

Not available

3

Toro 116-3961

MUFFLER
(Superseded to 142-7225)

$252.99

$

Usually ships in 3-6 days

0

4

Toro 116-4016

HOSE-EFI AIR INTAKE

$102.99

$

Usually ships in 3-6 days

0

5

Toro 103-3695-03

BRACKET-FILTER, AIR

$36.99

$

Usually ships in 3-6 days

0

6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

9

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

10

Toro 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 12

0

11

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 109-0181-03

SHIELD-EXHAUST

$72.99

$

Usually ships in 3-6 days

0

16

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

17

Toro 109-7896

TIE-CABLE

$

$

Currently unavailable

18

Toro 116-5338

OIL DRAIN HOSE ASM

$70.99

$

Usually ships in 3-6 days

0

18:1

Toro 353-508

PLUG-HH

$9.49

$

In Stock, only 2 left!

0

18:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

19

Toro 116-4543

HARNESS-LIGHT INDICATOR (EFI)

$95.99

$

Usually ships in 3-6 days

0

20

Toro 116-1455

FITTING-STRAIGHT

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$7.99

$

Usually ships in 3-6 days

0

21

Toro 1-643267

INDICATOR-LED, RED

$27.99

$

In Stock, only 2 left!

0

22

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

23

Toro 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

24

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

25

Toro 1-653291

See Supercession: 110-6697
(Superseded to 110-6697)

$7.49

$

Usually ships in 3-6 days

0

26

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0
