Toro 74315 (8000) - Toro 42" Z Master Zero-Turn Mower (SN: 415000000 - 999999999) Deck Assembly Parts Lookup with Diagrams

1

Toro 142-2918

DECK-CUTTING 42 W/DECALS

$2017.99

$

Usually ships in 3-6 days

2

Toro 103-9487

DISCHARGE TUBE ASM

$367.99

$

In Stock, only 1 left!

3

Toro 109-0321

FRONT DECK HEIGHT ADJUST ASM

$109.99

$

In Stock, only 1 left!

3:1

Toro 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 20+

3:2

Toro 103-7353

PIN-CUT HEIGHT

$12.99

$

In Stock, Qty 10

3:3

Toro 103-8496

NUT-JAM

$5.99

$

Usually ships in 3-6 days

4

Toro 103-3460

GEARBOX ASM

$4081.99

$

Usually ships in 3-6 days

5

Toro 130-2894

GEARBOX COVER ASM

$175.99

$

Usually ships in 3-6 days

5:2

Toro 103-8626

PAD-ANTI SKID

$19.99

$

Usually ships in 3-6 days

5:3

Toro 119-0217

DECAL-DANGER

$5.99

$

Usually ships in 3-6 days

6

Toro 103-8363

DECK LATCH ASM

$143.99

$

Usually ships in 3-6 days

6:1

Toro 103-7994

BALLJOINT-RH

$47.99

$

Usually ships in 3-6 days

6:2

Toro 103-8307

LATCH-DECK

$46.99

$

In Stock, only 1 left!

6:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

6:4

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

7

Toro 109-0322

REAR DECK HEIGHT ADJUST ASM

$133.99

$

Usually ships in 3-6 days

8

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

10

Toro 116-7842-01

GUARD-DRIVE SHAFT

$52.99

$

Usually ships in 3-6 days

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

12

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

13

Toro 103-6290-03

STRAP-DRIVE, LINE COVER

$43.99

$

Usually ships in 3-6 days

14

Toro 103-6183-03

BRACKET-GUARD, PTO

$42.99

$

Usually ships in 3-6 days

15

Toro 103-5979

GUARD-PTO

$92.99

$

Usually ships in 3-6 days

16

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

17

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

18

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

19

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

20

Toro 103-7705

DRIVER-BLADE

$49.99

$

In Stock, Qty 10

21

Toro 99-0283

BOLT-SHEAR

$8.49

$

In Stock, Qty 20+

22

Toro 130-2859

BLADE-22IN, RH

$41.99

$

In Stock, Qty 8

23

Toro 130-2860

BLADE-22IN, LH

$41.99

$

In Stock, Qty 8

24

Toro 30-8770

WASHER

$12.99

$

In Stock, only 2 left!

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

26

Toro 92-5816

BOLT-BLADE

$8.49

$

In Stock, Qty 20+

27

Toro 103-3700

ROLLER-DECK

$21.99

$

Usually ships in 3-6 days

28

Toro 103-4230

SPACER-ROLLER

$13.99

$

Usually ships in 3-6 days

29

Toro 325-14

SCREW-HH

$4.99

$

In Stock, only 2 left!

30

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

31

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

33

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

34

Toro 103-9485

DRIVE SHAFT ASM

$609.99

$

Usually ships in 3-6 days

35

Toro 3247-2

SCREW-SET, HSH

$4.49

$

Usually ships in 3-6 days

36

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

39

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

40

Toro 103-8841

SPRING-EXTENSION

$15.99

$

Usually ships in 3-6 days

41

Toro 1-513690

CLIP-DECK, HOLD UP ROD

$5.99

$

Usually ships in 3-6 days

42

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 16

43

Toro 103-8610

STAND-OFF

$25.99

$

Usually ships in 3-6 days

44

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

45

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

46

Toro 142-2236-01

BRACKET-LATCH PIVOT

$25.99

$

Usually ships in 3-6 days

47

Toro 108-9087

COLLAR-BASKET

$14.99

$

Usually ships in 3-6 days

48

Toro 110-4068

WASHER-PLASTIC

$4.49

$

Usually ships in 3-6 days

49

Toro 142-2475

LATCH - DECK

$17.99

$

Usually ships in 3-6 days

50

Toro 75-3960

SPRING-TORSION, LH (YELLOW)

$31.99

$

Usually ships in 3-6 days

51

Toro 75-3970

SPRING-TORSION, RH

$31.99

$

In Stock, only 1 left!

52

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

53

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

54

Toro 3230-10

BOLT-CARR

$4.49

$

In Stock, Qty 20+

55

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

56

Toro 130-2888

DECAL

$24.99

$

Usually ships in 3-6 days

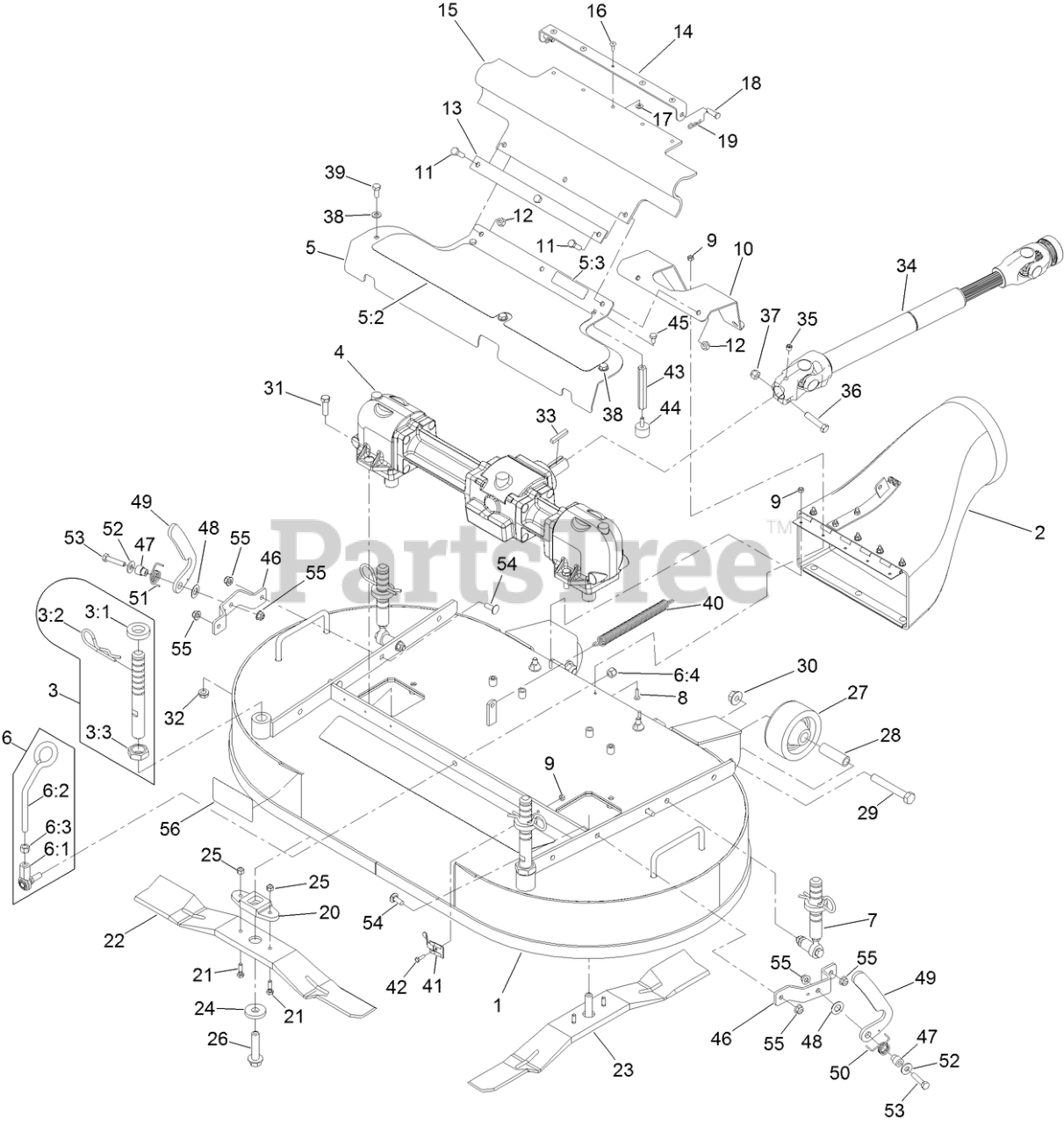

74315 (8000) - Toro 42" Z Master Zero-Turn Mower (SN: 415000000 - 999999999) Deck Assembly Parts Diagram

Deck Assembly Parts Diagram
