74315 (8000) - Toro 42" Z Master Zero-Turn Mower (SN: 415000000 - 999999999) Deck Support Frame Assembly Parts Diagram

42" Z Master Zero-Turn Mower

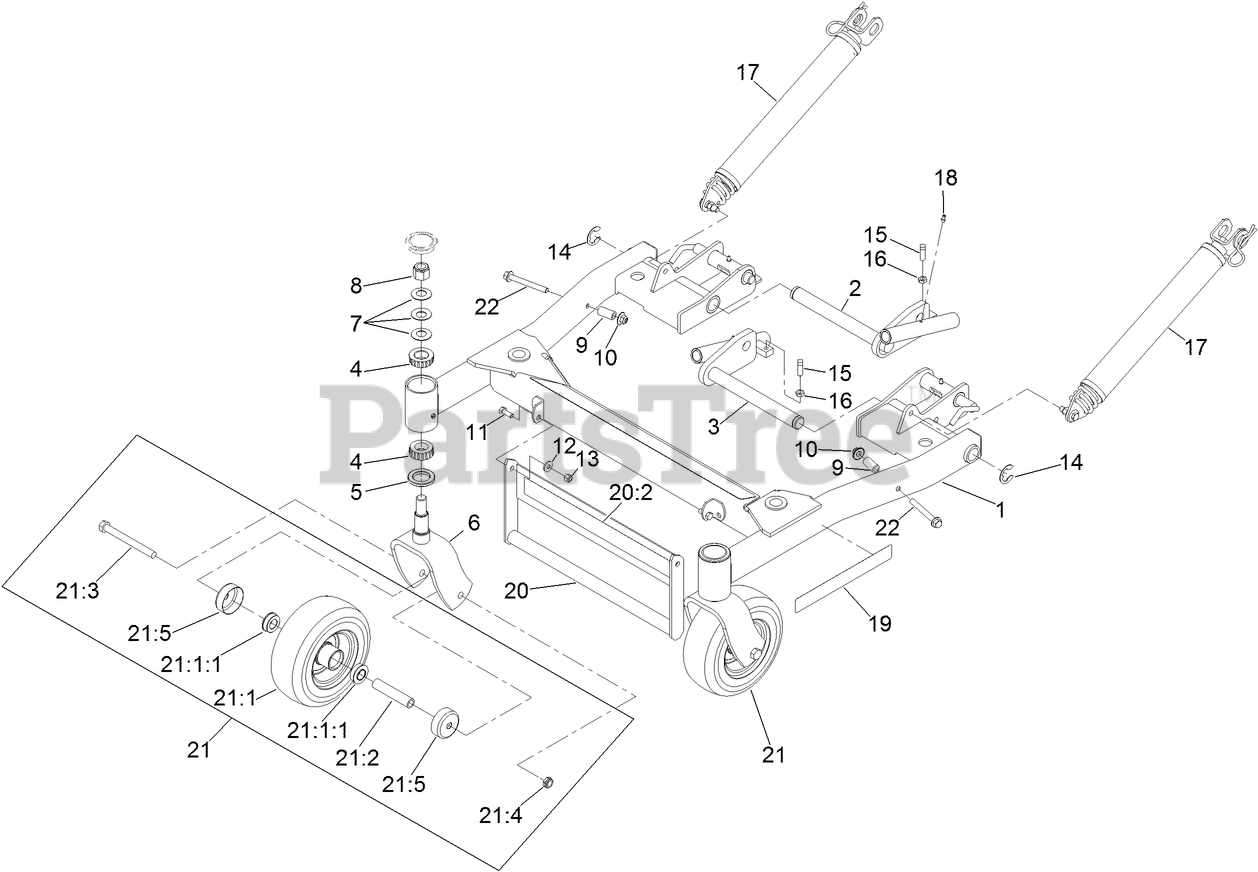

Deck Support Frame Assembly Parts Diagram

  • Title

1

Toro 142-2910

FRAME-DECK SUPPORT W/DECALS

$994.99

$

Usually ships in 3-6 days

0

2

Toro 103-3729-01

PIVOT-DECK, RH

$306.99

$

Usually ships in 3-6 days

0

3

Toro 103-3732-01

PIVOT-DECK, LH

$306.99

$

Usually ships in 3-6 days

0

4

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

5

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 17

0

6

Toro 109-1933-01

FORK-CASTER

$201.99

$

Usually ships in 3-6 days

0

7

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

8

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

9

Toro 108-6544

SPACER

$14.99

$

In Stock, Qty 20+

0

10

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

12

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 1-808519

RING-SNAP

$2.99

$

In Stock, Qty 18

0

15

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

16

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

17

Toro 116-7850

LIFT ASSIST SPRING ASM

$460.99

$

Usually ships in 3-6 days

0

18

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

19

Toro 130-2884

DECAL

$16.99

$

Usually ships in 3-6 days

0

20

Toro 130-2897

DECK LIFT HANDLE ASM

$197.99

$

Usually ships in 3-6 days

0

20:2

Toro 130-2883

DECAL

$23.99

$

Usually ships in 3-6 days

0

21

Toro 135-5967

WHEEL AND AXLE ASM

$158.99

$

Usually ships in 3-6 days

0

21:1

Toro 135-5964

WHEEL AND TIRE ASM

$152.99

$

Usually ships in 3-6 days

0

21:1:1

Toro 135-5963

BEARING-BALL

$6.49

$

Usually ships in 3-6 days

0

21:2

Toro 109-2094

SPACER-CASTER, FRONT

$18.99

$

Usually ships in 3-6 days

0

21:3

Toro 325-19

SCREW-HH

$9.49

$

In Stock, Qty 12

0

21:4

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

21:5

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

22

Toro 3234-41

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0
