74315 (8000) - Toro 42" Z Master Zero-Turn Mower (SN: 415000000 - 999999999) Parking Brake Assembly Parts Diagram

42" Z Master Zero-Turn Mower

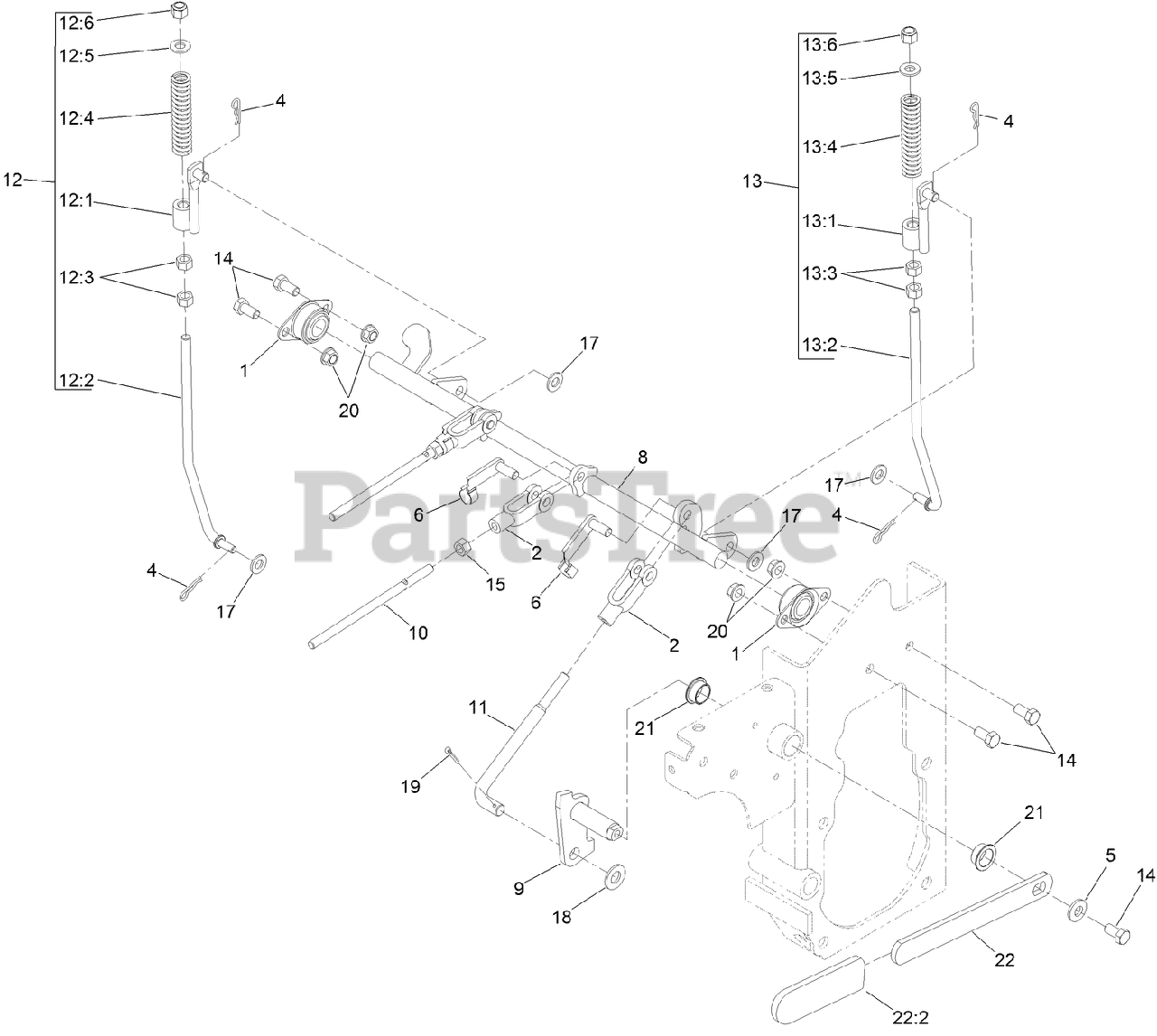

Parking Brake Assembly Parts Diagram

  • Title

1

Toro 1-633102

BEARING-FLANGE, SIDE

$21.99

$

In Stock, only 3 left!

0

2

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 7

0

4

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

5

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

6

Toro 103-2399

PIN-SPRING, CLEVIS

$6.99

$

In Stock, Qty 20+

0

8

Toro 116-7483-03

SHAFT-BRAKE

$100.99

$

Usually ships in 3-6 days

0

9

Toro 116-7486

PIVOT-BRAKE

$47.99

$

Usually ships in 3-6 days

0

10

Toro 116-7838

ROD-LINKAGE, BRAKE

$17.99

$

Usually ships in 3-6 days

0

11

Toro 116-8474

ROD-LINKAGE, BRAKE

$41.99

$

Usually ships in 3-6 days

0

12

Toro 116-9748

RH BRAKE LINKAGE ASM

$96.99

$

Usually ships in 3-6 days

0

12:1

Toro 116-8467

BRAKE LINKAGE ASM

$37.99

$

Usually ships in 3-6 days

0

12:2

Toro 116-8465

LINK-BRAKE, RH

$52.99

$

Usually ships in 3-6 days

0

12:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

12:4

Toro 116-8470

SPRING-COMPRESSION

$10.99

$

Usually ships in 3-6 days

0

12:5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12:6

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

13

Toro 116-9749

LH BRAKE LINKAGE ASM

$96.99

$

Usually ships in 3-6 days

0

13:1

Toro 116-8467

BRAKE LINKAGE ASM

$37.99

$

Usually ships in 3-6 days

0

13:2

Toro 116-8464

LINK-BRAKE, LH

$52.99

$

Usually ships in 3-6 days

0

13:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

13:4

Toro 116-8470

SPRING-COMPRESSION

$10.99

$

Usually ships in 3-6 days

0

13:5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13:6

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

15

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

20

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

21

Toro 108519

BUSHING-BRONZE

$17.99

$

In Stock, only 1 left!

0

22

Toro 103-9469

PARK BRAKE HANDLE ASM

$51.99

$

Usually ships in 3-6 days

0

22:2

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 17

0
