74381 (Z 4202) - Toro 42" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010) 42 Inch Deck Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

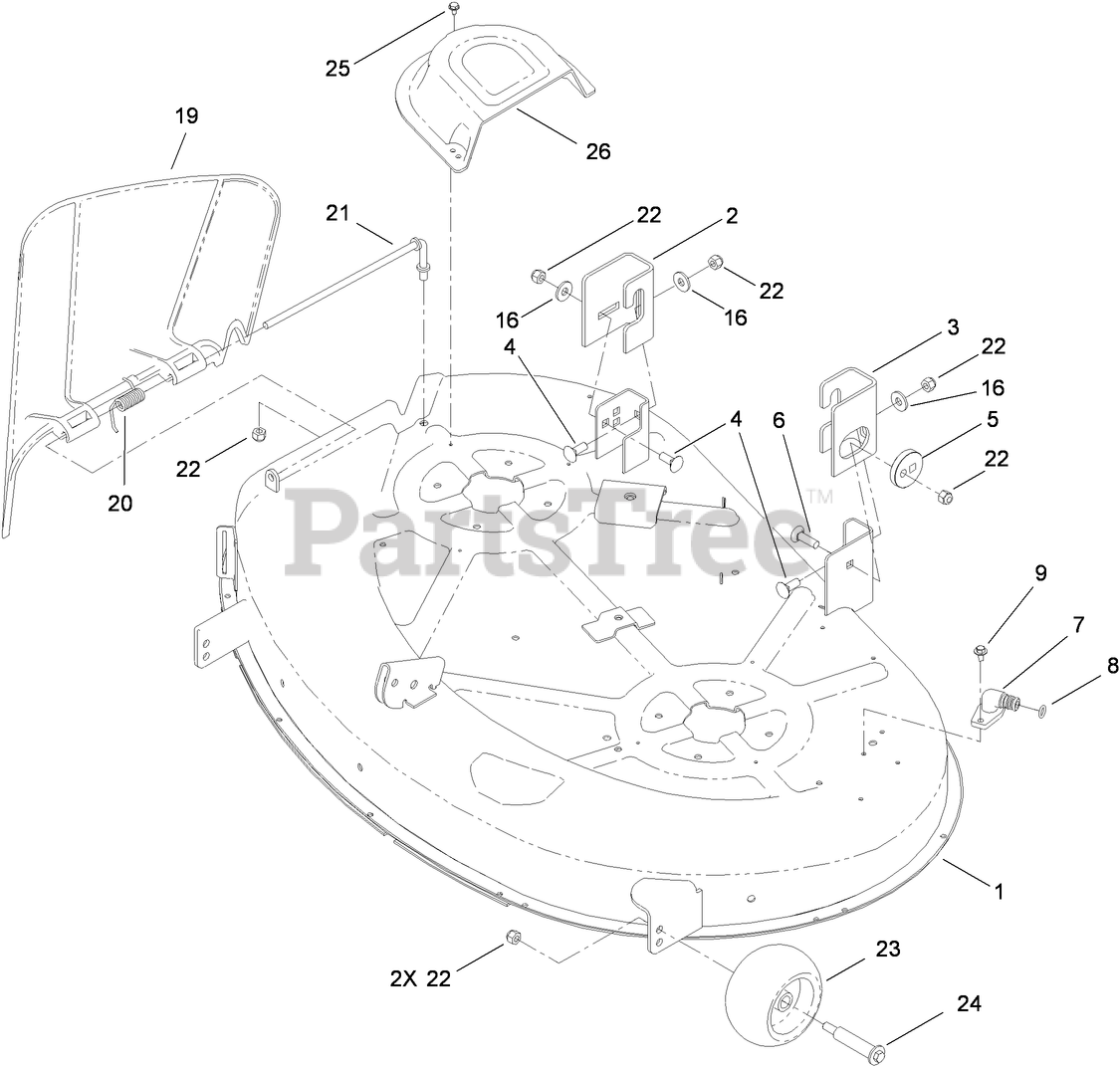

42 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 117-1290

See Supercession: 132-6931
(Superseded to 132-6931)

$1393.99

$

Usually ships in 3-6 days

0

2

Toro 108-7836

BRACKET-HANGER, RIGHT REAR

$27.99

$

In Stock, Qty 20+

0

3

Toro 108-7838

BRACKET-HANGER, LEFT REAR

$27.99

$

In Stock, Qty 19

0

4

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

5

Toro 112-3980

ECCENTRIC

$8.49

$

In Stock, only 4 left!

0

6

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

7

Toro 95-2747

See Supercession: 133-9289
(Superseded to 133-9289)

$7.49

$

In Stock, Qty 20+

0

8

Toro 46-6290

O-RING

$3.49

$

In Stock, Qty 20+

0

9

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

16

Toro 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

0

19

Toro 112-3951

DEFLECTOR

$70.99

$

In Stock, Qty 20+

0

20

Toro 110-6694

SPRING-TORSION

$7.49

$

In Stock, Qty 18

0

21

Toro 112-4026

ROD-PIVOT

$22.99

$

In Stock, only 4 left!

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

24

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

25

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 108-7889

COVER-BELT

$38.99

$

In Stock, only 4 left!

0
