74381 (Z 4202) - Toro 42" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010) Engine and Clutch Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

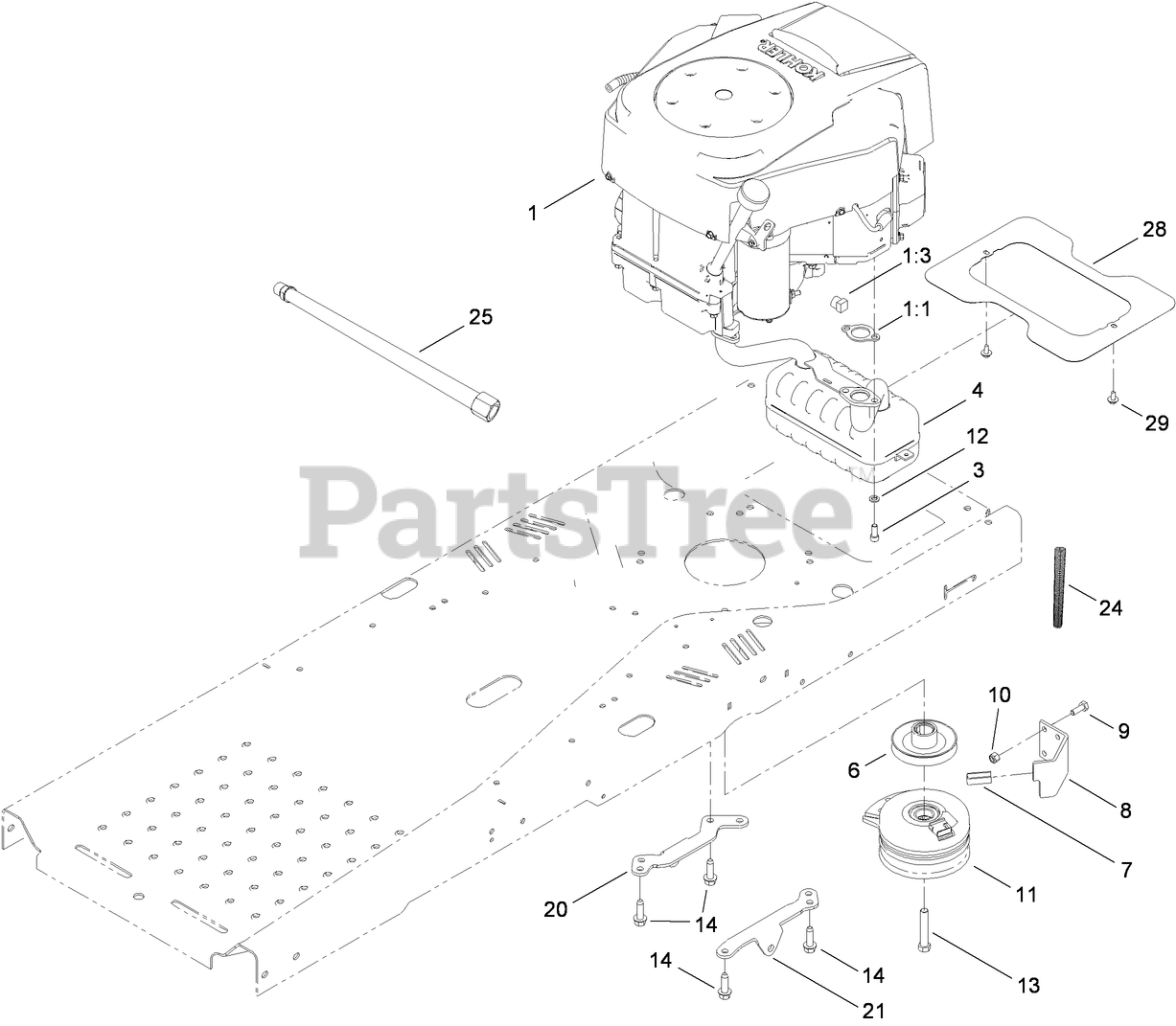

Engine and Clutch Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, SV710-0031

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, SV710-0031

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Toro 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

1:3

Toro 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0

3

Toro 3274-10

SCREW-HSH

$11.99

$

In Stock, Qty 20+

0

4

Toro 117-7462

MUFFLER-KOHLER

$274.99

$

Usually ships in 3-6 days

0

6

Toro 114-1622

PULLEY-ENGINE

$152.99

$

Usually ships in 3-6 days

0

7

Toro 112-4033

BUMPER-PAD

$8.99

$

In Stock, only 1 left!

0

8

Toro 110-6896

STOP-CLUTCH

$

$

Not available

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

10

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 117-7468

CLUTCH-ELECTRIC

$248.99

$

In Stock, only 1 left!

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3212-10

SCREW-HH

$6.99

$

In Stock, Qty 11

0

14

Toro 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

20

Toro 110-6798

SUPPORT-HYDRO, RH

$32.99

$

In Stock, Qty 10

0

21

Toro 110-6799

SUPPORT-HYDRO, LH

$32.99

$

In Stock, Qty 12

0

24

Toro 112-9849

TUBING-CONVOLUTED

$3.99

$

Usually ships in 3-6 days

0

25

Toro 117-1261

HOSE-DRAIN, OIL

$34.99

$

In Stock, Qty 15

0

28

Toro 114-8544-03

SHIELD-HEAT

$20.99

$

In Stock, only 2 left!

0

29

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0
