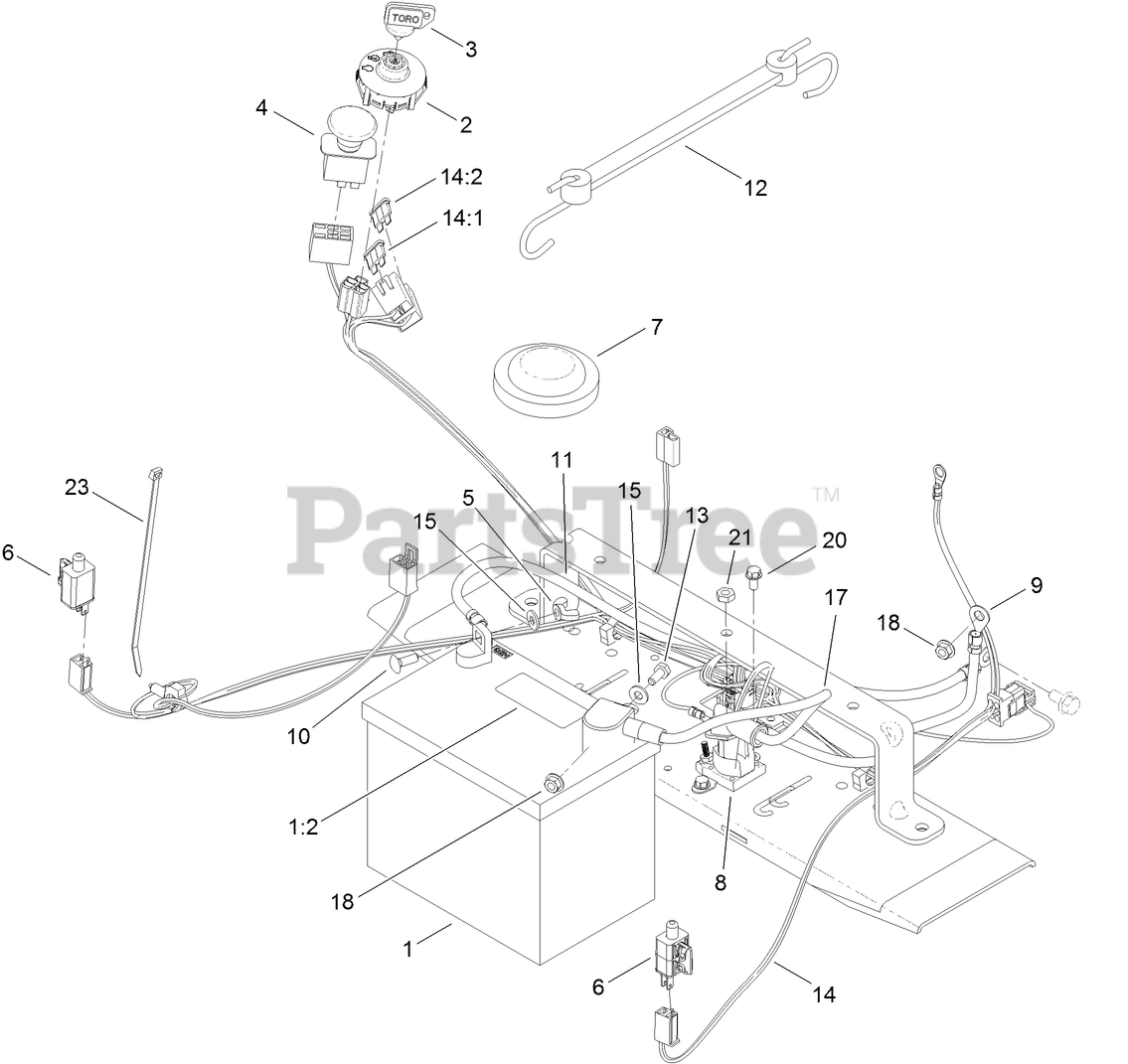

74385 (ZS 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 312000001 - 312999999) (2012) Electrical Assembly Parts Diagram

32" TimeCutter Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 105-1692

BATTERY

$

$

Not available

1:2

Toro 104-4164

Decal-Battery

$

$

Currently unavailable

2

Toro 117-2221

See Supercession: 137-4100
(Superseded to 137-4100)

$30.99

$

In Stock, Qty 20+

0

3

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

4

Toro 103-5221

SWITCH-PTO

$63.99

$

In Stock, Qty 7

0

5

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 3 left!

0

6

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

7

Toro 100-3524

SWITCH-SEAT

$68.99

$

In Stock, Qty 10

0

8

Toro 117-1197

SOLENOID

$50.99

$

Usually ships in 3-6 days

0

9

Toro 119-8898

CABLE-BATTERY, RED

$18.99

$

In Stock, only 2 left!

0

10

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 119-8899

CABLE-BATTERY, BLACK

$18.99

$

In Stock, only 2 left!

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 2 left!

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 121-5652

See Supercession: 136-9184
(Superseded to 136-9184)

$164.99

$

In Stock, only 2 left!

0

14:1

Toro 109103

FUSE-BLADE, 30 AMP

$7.49

$

In Stock, only 4 left!

0

14:2

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 16

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 119-8897

CABLE-BATTERY, RED

$25.99

$

In Stock, only 2 left!

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

23

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5
