74401 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) 44in Deck Assembly Parts Diagram

44" TimeCutter Zero-Turn Mower

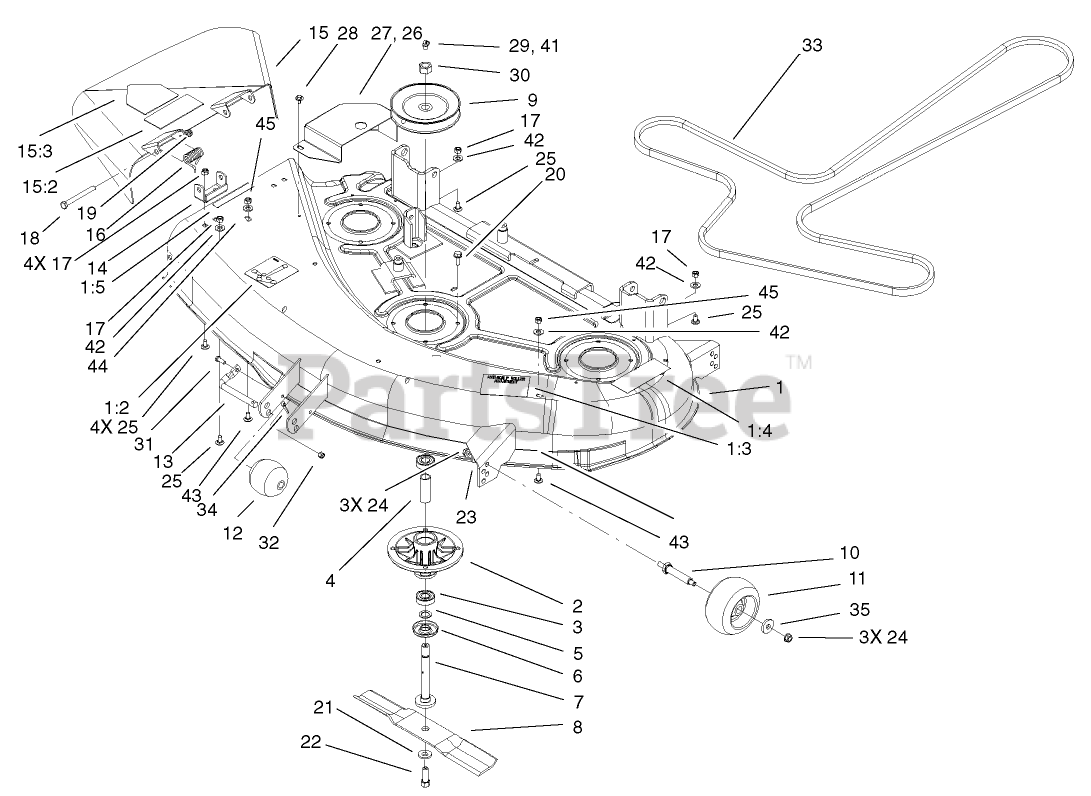

44in Deck Assembly Parts Diagram

  • Title

1

Toro 105-6967

DISCONTINUED

$

$

Not available

1:2

Toro 99-3943

DECAL-ROUTING, BELT

$8.49

$

In Stock, Qty 6

0

1:3

Toro 99-8939

DECAL-ANTI SCALP

$30.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-7317

DECAL-DANGER

$

$

Not available

1:5

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 7

0

2

Toro 88-4510

HOUSING-SPINDLE

$116.99

$

In Stock, Qty 10

0

3

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

4

Toro 94-7959

SPACER-BEARING

$46.99

$

Usually ships in 3-6 days

0

5

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 20+

0

6

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 20+

0

7

Toro 94-7547

SHAFT-CENTER, SPINDLE

$121.99

$

Usually ships in 3-6 days

0

8

Toro 54-0010-03

BLADE

$33.99

$

In Stock, Qty 20+

0

9

Toro 105-6973

PULLEY ASM

$140.99

$

Usually ships in 3-6 days

0

10

Toro 99-2842

See Supercession: 126-2928
(Superseded to 126-2928)

$42.99

$

In Stock, Qty 20+

0

11

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$26.99

$

In Stock, Qty 20+

0

12

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 6

0

13

Toro 118960-03

SHAFT-ROLLER

$50.99

$

In Stock, only 2 left!

0

14

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

15

Toro 98-5049

DEFLECTOR ASM

$

$

Not available

15:2

Toro 93-7317

DECAL-DANGER

$

$

Not available

15:3

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

16

Toro 40-6230

SPRING

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

19

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

20

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

21

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

22

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

26

Toro 105-6975-01

COVER-BELT, LH

$

$

Not available

27

Toro 105-6974-01

COVER-BELT, RH

$

$

Not available

28

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

29

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

30

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 105-6977

BELT V

$389.99

$

Usually ships in 3-6 days

0

34

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

35

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

41

Toro 302-60

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

42

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

44

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

45

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
