74403 (Z 420) - Toro 42" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) 42in Deck Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

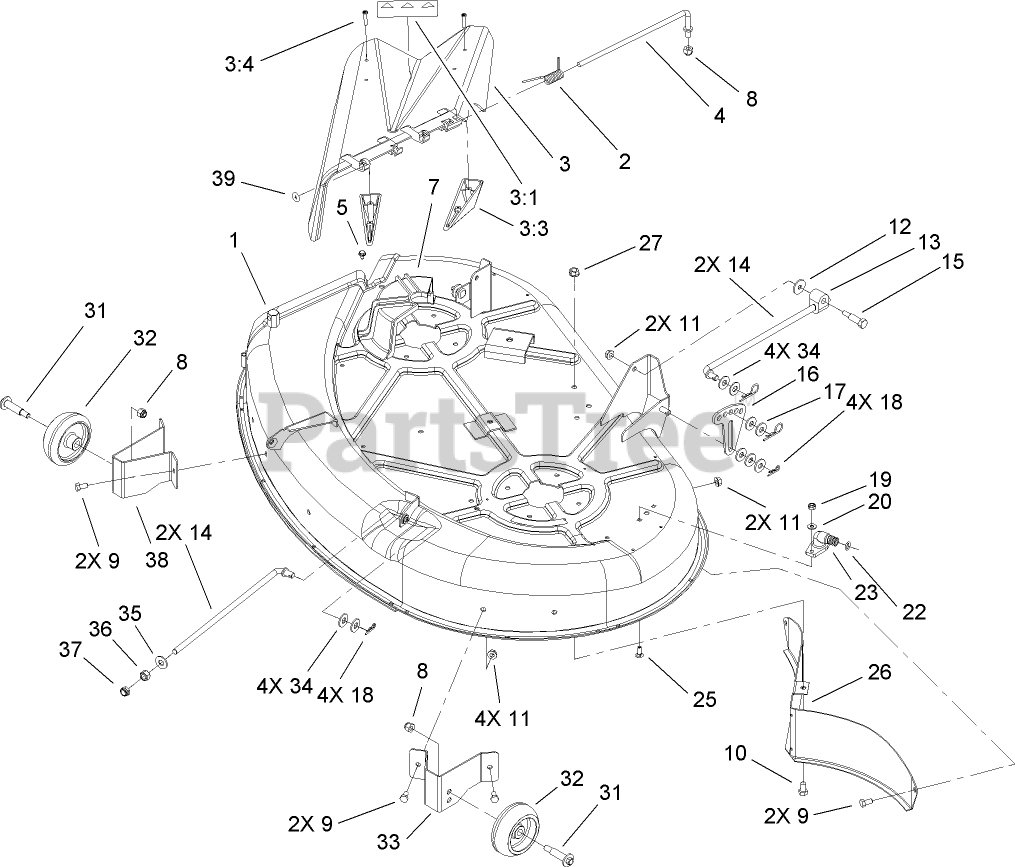

42in Deck Assembly Parts Diagram

  • Title

1

Toro 110-1890

See Supercession: 132-9330
(Superseded to 132-9330)

$1487.99

$

Usually ships in 3-6 days

0

2

Toro 57-6950

SPRING

$30.99

$

In Stock, Qty 6

0

3

Toro 93-7695

DEFLECTOR ASM

$106.99

$

In Stock, only 1 left!

0

3:1

Toro 93-7010

DECAL-DANGER

$13.99

$

Usually ships in 3-6 days

0

3:3

Toro 93-7696

KICKER

$15.99

$

In Stock, only 4 left!

0

3:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

4

Toro 95-1661

ROD-PIVOT

$23.99

$

In Stock, only 3 left!

0

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 88-4030

GUIDE-BELT, LH

Note: Not illustrated

$46.99

$

In Stock, only 2 left!

0

7

Toro 88-4020

GUIDE-BELT, RH

$46.99

$

Usually ships in 3-6 days

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 323-34

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

11

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 9

0

12

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

13

Toro 88-4230

TRUNNION-HOC

$16.99

$

In Stock, only 4 left!

0

14

Toro 105-3437

ROD-HANGER

$36.99

$

In Stock, only 4 left!

0

15

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, Qty 6

0

16

Toro 88-5570-03

LINK-ADJUSTING, HOC

$16.99

$

Usually ships in 3-6 days

0

17

Toro 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

0

18

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

19

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

20

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 46-6290

O-RING

$3.49

$

In Stock, Qty 20+

0

23

Toro 95-2747

See Supercession: 133-9289
(Superseded to 133-9289)

$7.49

$

In Stock, Qty 20+

0

25

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

26

Toro 108-8513-03

BAFFLE-REAR

$222.99

$

Usually ships in 3-6 days

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 2 left!

0

32

Toro 701756

WHEEL-GAGE

$8.99

$

In Stock, Qty 10

0

33

Toro 106-8702-03

BRACKET-GAGE WHEEL, FRONT (LH)

$33.99

$

In Stock, only 2 left!

0

34

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

36

Toro 3219-4

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

37

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

38

Toro 106-8701-03

BRACKET-GAGE WHEEL, FRONT (RH)

$55.99

$

Usually ships in 3-6 days

0

39

Toro 106-8745

O-RING

$1.99

$

In Stock, only 2 left!

0
