74407 (ZX 525) - Toro 52" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) 52in Deck Belt Drive Assembly Parts Diagram

52" TimeCutter Zero-Turn Mower

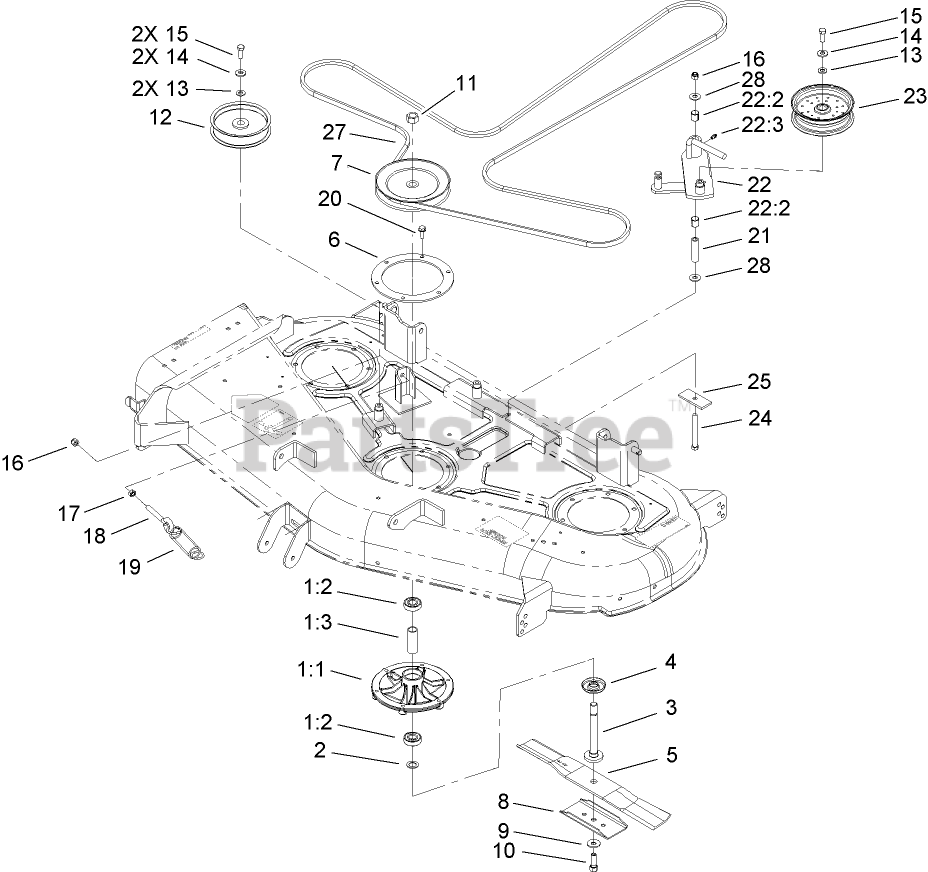

52in Deck Belt Drive Assembly Parts Diagram

  • Title

1

Spindle ASM

Note: Not illustrated

$

$

Not available

1

Spindle ASM

Note: Not serviced separately

$

$

Not available

1:1

Toro 107-1739

HOUSING-SPINDLE

$100.99

$

In Stock, Qty 7

0

1:2

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

1:3

Toro 62-3661

SPACER

$17.99

$

In Stock, Qty 20+

0

2

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 20+

0

3

Toro 80-4341

SHAFT-SPINDLE

$57.99

$

In Stock, Qty 10

0

4

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 20+

0

5

Toro 107-1742-03

BLADE-RECYCLER

$46.99

$

In Stock, only 1 left!

0

6

Toro 107-1743-03

RING-SUPPORT, DECK

$

$

Not available

7

Toro 107-1740

PULLEY AND HUB ASM

$165.99

$

Usually ships in 3-6 days

0

8

Toro 80-0510-03

STIFFENER-BLADE

$20.99

$

In Stock, Qty 5

0

9

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

11

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

12

Toro 1-613098

PULLEY-IDLER

$51.99

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

15

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

18

Toro 94-2547

BOLT-EYE

$30.99

$

Usually ships in 3-6 days

0

19

Toro 105-6992

SPRING-EXTENSION

$34.99

$

Usually ships in 3-6 days

0

20

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

21

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

22

Toro 105-7010

IDLER ARM ASM

$

$

Not available

22:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

22:3

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

23

Toro 99-8912

See Supercession: 116-4669
(Superseded to 116-4669)

$86.99

$

In Stock, Qty 18

0

24

Toro 1-800805

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

25

Toro 104-8037-03

PLATE-BOLT, RETAINER

$

$

Not available

27

Toro 106-2217

BELT-V

$165.99

$

Usually ships in 3-6 days

0

28

Toro 1-809107

WASHER-HARDENED

$5.99

$

In Stock, only 2 left!

0
