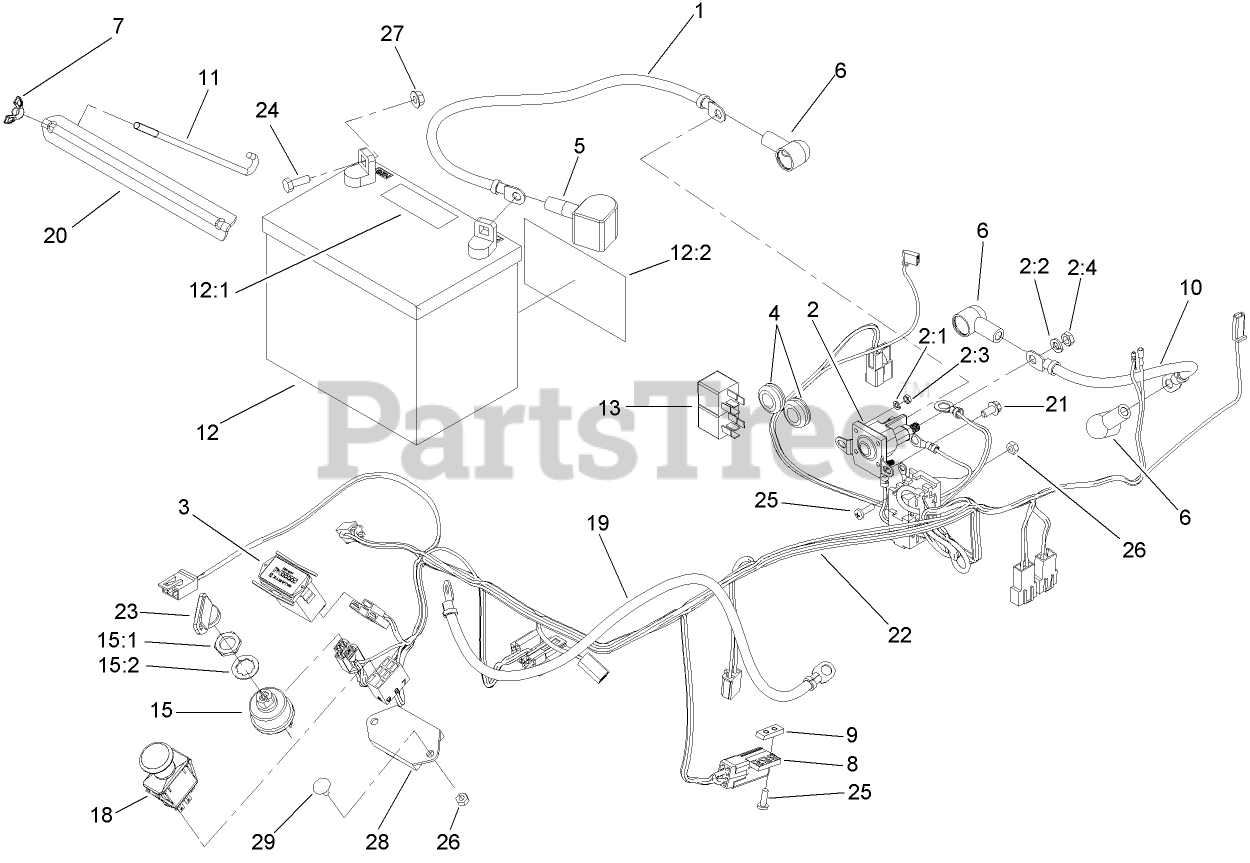

74409 (Z 340) - Toro 40" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000701 - 270999999) (2007) Electrical Assembly Parts Diagram

40" Z Master Zero-Turn Mower, Side-Discharge Deck

Electrical Assembly Parts Diagram

  • Title

1

Toro 1-513053

See Supercession: 109-7653
(Superseded to 109-7653)

$38.99

$

In Stock, only 1 left!

0

2

Toro 1-513075

See Supercession: 117-1197
(Superseded to 117-1197)

$50.99

$

In Stock, Qty 20+

0

2:1

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

2:2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2:3

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

2:4

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

3

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 5

0

4

Toro 1-543296

GROMMET

$9.49

$

In Stock, only 2 left!

0

5

Toro 1-543391

See Supercession: 109-2407
(Superseded to 109-2407)

$5.99

$

In Stock, only 2 left!

0

6

Toro 1-543393

INSULATOR-SOLENOID

$5.99

$

Usually ships in 3-6 days

0

7

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

8

Toro 1-633111

SWITCH

$23.99

$

In Stock, Qty 5

0

9

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

10

Toro 1-633306

See Supercession: 109-7620
(Superseded to 109-7620)

$

$

Not available

11

Toro 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

12

Toro 105-1692

BATTERY

$

$

Not available

12:1

Toro 104-4163

Decal-Battery

$

$

Currently unavailable

12:2

Toro 104-4164

Decal-Battery

$

$

Currently unavailable

13

Toro 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

15

Toro 104-2541

SWITCH ASM

$43.99

$

In Stock, Qty 20+

0

15:1

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 1 left!

0

15:2

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

18

Toro 103-5221

SWITCH-PTO

$63.99

$

In Stock, Qty 6

0

19

Toro 103-8355

CABLE-BATTERY, NEGATIVE

$18.99

$

Usually ships in 3-6 days

0

20

Toro 103-9944-03

ANGLE-BATTERY

$18.99

$

Usually ships in 3-6 days

0

21

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

22

Toro 109-4112

HARNESS-WIRE

$

$

Not available

23

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 100-6186

MODULE-DELAY, SEAT

$47.99

$

In Stock, Qty 6

0

29

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0
