74411 (Z 149) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) Deck Assembly No. 107-8562 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

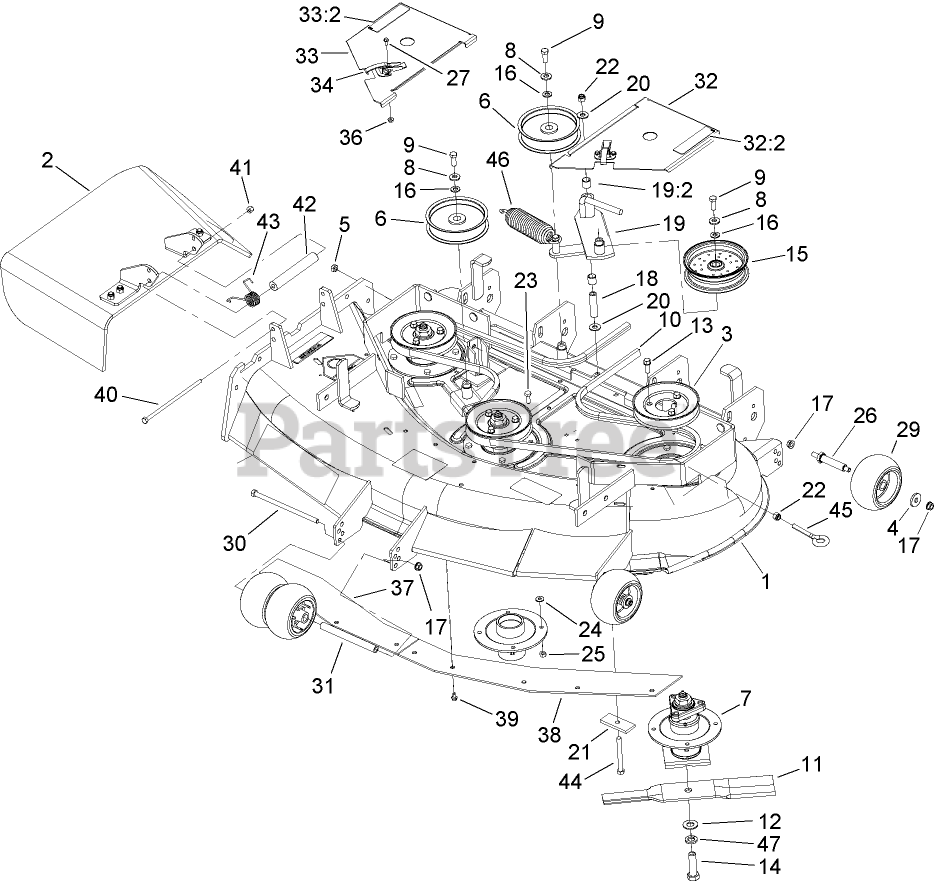

Deck Assembly No. 107-8562 Parts Diagram

  • Title

1

Toro 107-8580

DECK DECAL ASM

$2617.99

$

Usually ships in 3-6 days

0

2

Toro 108-4060

See Supercession: 108-2792
(Superseded to 108-2792)

$255.99

$

Usually ships in 3-6 days

0

3

Toro 107-8586

PULLEY

$

$

Not available

4

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

5

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

6

Toro 1-613098

PULLEY-IDLER

$51.99

$

In Stock, Qty 20+

0

7

Toro 107-8570

SPINDLE HOUSING ASM

$

$

Not available

8

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

9

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 98-3780

V-BELT-DRIVE

$155.99

$

In Stock, Qty 6

0

11

Toro 54-0010-03

BLADE

$33.99

$

In Stock, Qty 20+

0

12

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

13

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

14

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

15

Toro 99-8912

See Supercession: 116-4669
(Superseded to 116-4669)

$86.99

$

In Stock, Qty 18

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

19

Toro 99-8914

IDLER ARM ASM

$

$

Not available

19:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

20

Toro 1-809107

WASHER-HARDENED

$5.99

$

In Stock, only 2 left!

0

21

Toro 99-3946-01

PLATE-RETAINER, BOLT

$

$

Not available

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

24

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

25

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

26

Toro 99-2842

See Supercession: 126-2928
(Superseded to 126-2928)

$42.99

$

In Stock, Qty 20+

0

27

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

29

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

30

Toro 323-28

SCREW-HH

$9.49

$

In Stock, Qty 6

0

31

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

32

Toro 99-3928

LH COVER ASM

$

$

Not available

32:2

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

33

Toro 99-3929

RH COVER ASM

$

$

Not available

33:2

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

34

Toro 249-21

CLAMP-SLOTTED

$22.99

$

In Stock, only 2 left!

0

36

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, only 4 left!

0

37

Toro 100-3257-03

PLATE-BLOWOUT, RH

$183.99

$

Usually ships in 3-6 days

0

38

Toro 100-3258-03

PLATE-BLOWOUT, LH

$183.99

$

Usually ships in 3-6 days

0

39

Toro 12-3270

SCREW

$3.99

$

In Stock, only 2 left!

0

40

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

41

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

42

Toro 105-4622

SPACER

$11.99

$

In Stock, only 3 left!

0

43

Toro 107-1663

SPRING-TORSION

$

$

Not available

44

Toro 1-800805

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

45

Toro 94-2547

BOLT-EYE

$30.99

$

Usually ships in 3-6 days

0

46

Toro 103-3330

See Supercession: 116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

47

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

99

Toro 55-4940-03

BLADE-LIFT, HIGH

Note: Not illustrated

$42.99

$

In Stock, only 1 left!

0

99

Toro 55-4940-03

BLADE-LIFT, HIGH

Note: Optional Equipment

$42.99

$

In Stock, only 1 left!

0

99

Toro 104-1300

BLADE-ATOMIC

Note: Optional Equipment

$49.99

$

Usually ships in 3-6 days

0

99

Toro 104-1300

BLADE-ATOMIC

Note: Not illustrated

$49.99

$

Usually ships in 3-6 days

0
