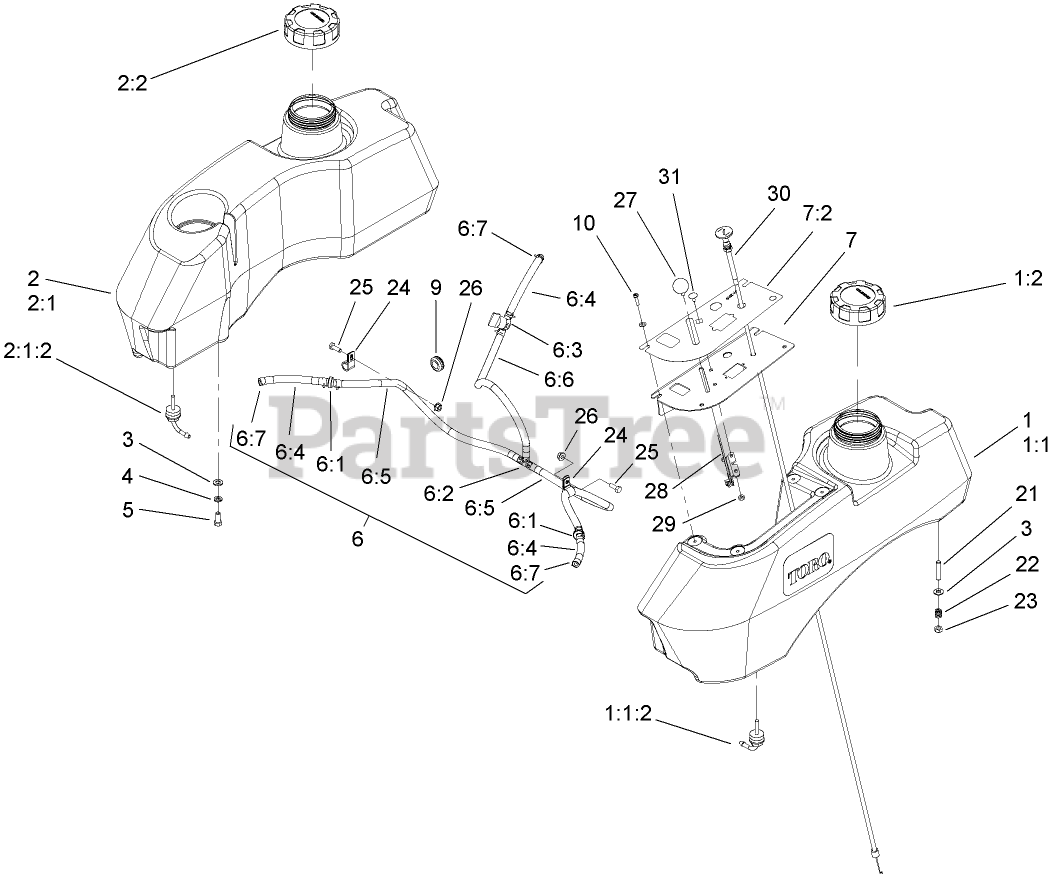

74416 (Z 453) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270002000) (2007) Fuel System Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

Fuel System Assembly Parts Diagram

  • Title

1

Toro 110-4165

LH FUEL TANK SERVICE KIT

$

$

Not available

1:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$41.99

$

In Stock, Qty 6

0

1:2

Toro 109-0346

CAP-FUEL, GAS

$25.99

$

In Stock, Qty 8

0

2

Toro 105-3639

RH FUEL TANK SERVICE KIT

$

$

Not available

2:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$41.99

$

In Stock, Qty 6

0

2:2

Toro 109-0346

CAP-FUEL, GAS

$25.99

$

In Stock, Qty 8

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

6:1

Toro 99-5000

VALVE-CHECK, FUEL

$10.99

$

In Stock, Qty 6

0

6:2

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

6:3

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, Qty 5

0

6:4

Toro 109-0678

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

6:5

Toro 110-5701

HOSE-FUEL

$18.99

$

In Stock, only 2 left!

0

6:6

Toro 109-0297

HOSE-FUEL

$8.99

$

Usually ships in 3-6 days

0

6:7

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

7

Toro 107-2149

CONTROL PANEL ASM

$143.99

$

Usually ships in 3-6 days

0

7:2

Toro 110-0439

DECAL-PANEL, CONTROL

$46.99

$

Usually ships in 3-6 days

0

9

Toro 1-543296

GROMMET

$9.49

$

In Stock, only 2 left!

0

10

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 9

0

21

Toro 1-633023

STUD

$6.99

$

In Stock, Qty 12

0

22

Toro 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

23

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

24

Toro 1-513762

CLIP-LOOM

$8.49

$

In Stock, only 1 left!

0

25

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 16

0

28

Toro 1-633696

THROTTLE CABLE ASM

$68.99

$

In Stock, Qty 19

0

29

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 106-9962

CONTROL-CHOKE, PUSH / PULL

$91.99

$

In Stock, only 2 left!

0

31

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+
