74433 (ZD 420) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) Engine Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

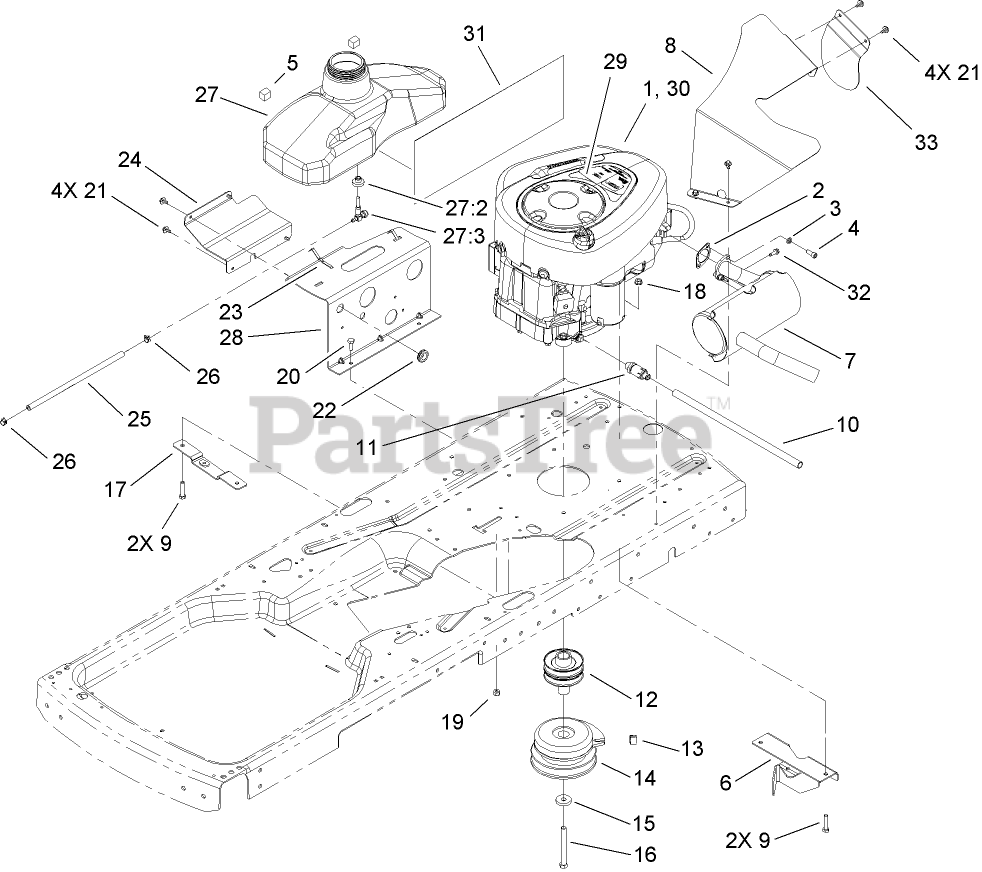

Engine Assembly Parts Diagram

  • Title

1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

1

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 88-4410

GASKET-EXHAUST

$20.99

$

In Stock, only 4 left!

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 3274-10

SCREW-HSH

$11.99

$

In Stock, Qty 20+

0

5

Toro 104-2488

FOAM-SWITCH, SEAT

$8.99

$

Usually ships in 3-6 days

0

6

Toro 107-4873

BRACKET-PIVOT

$

$

Not available

7

Toro 106-7007

MUFFLER

$521.99

$

In Stock, only 1 left!

0

8

Toro 110-1982-03

SHIELD-CLIPPING

$

$

Not available

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 106-7022

TUBE-DRAIN, OIL

$10.99

$

In Stock, Qty 5

0

11

Toro 92-6877

VALVE-DRAIN, OIL

$45.99

$

In Stock, only 2 left!

0

12

Toro 105-3472

PULLEY-ENGINE

$337.99

$

Usually ships in 3-6 days

0

13

Toro 98-5023

BUMPER

$9.49

$

Usually ships in 3-6 days

0

14

Toro 104-3334

CLUTCH-ELECTRIC

$517.99

$

In Stock, only 2 left!

0

15

Toro 112843

WASHER

$3.99

$

In Stock, only 4 left!

0

16

Toro 3212-16

SCREW-HH

$21.99

$

In Stock, Qty 11

0

17

Toro 106-2156

PLATE-MOUNT, IDLER

$42.99

$

Usually ships in 3-6 days

0

18

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 9

0

19

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

21

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

22

Toro 237-124

GROMMET

$2.99

$

Usually ships in 3-6 days

0

23

Toro 609830

SPRING

$5.99

$

In Stock, Qty 11

0

24

Toro 108-2315-03

PLATE-SUPPORT

$

$

Not available

25

Toro 109-0297

HOSE-FUEL

$8.99

$

Usually ships in 3-6 days

0

26

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

27

Toro 105-3464

GAS TANK ASM

$

$

Not available

27:2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

27:3

Toro 110-6565

VALVE-FUEL

$43.99

$

Usually ships in 3-6 days

0

28

Toro 108-2314-03

PLATE-TANK

$

$

Not available

29

Toro 112-4775

DECAL-ENGINE

$

$

Not available

30

Toro 88-4490

REDUCER-THROTTLE, RPM

Note: Not illustrated

$21.99

$

Usually ships in 3-6 days

0

31

Toro 112-4776

FOIL-SHIELD, HEAT

$

$

Not available

32

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0

33

Toro 114-3608-03

SHIELD-DEFLECTOR, HEAT

$

$

Not available
