74452 (HD 1500) - Toro 60" Titan Zero-Turn Mower (SN: 402100000 - 403350940) Engine Assembly Parts Diagram

60" Titan Zero-Turn Mower

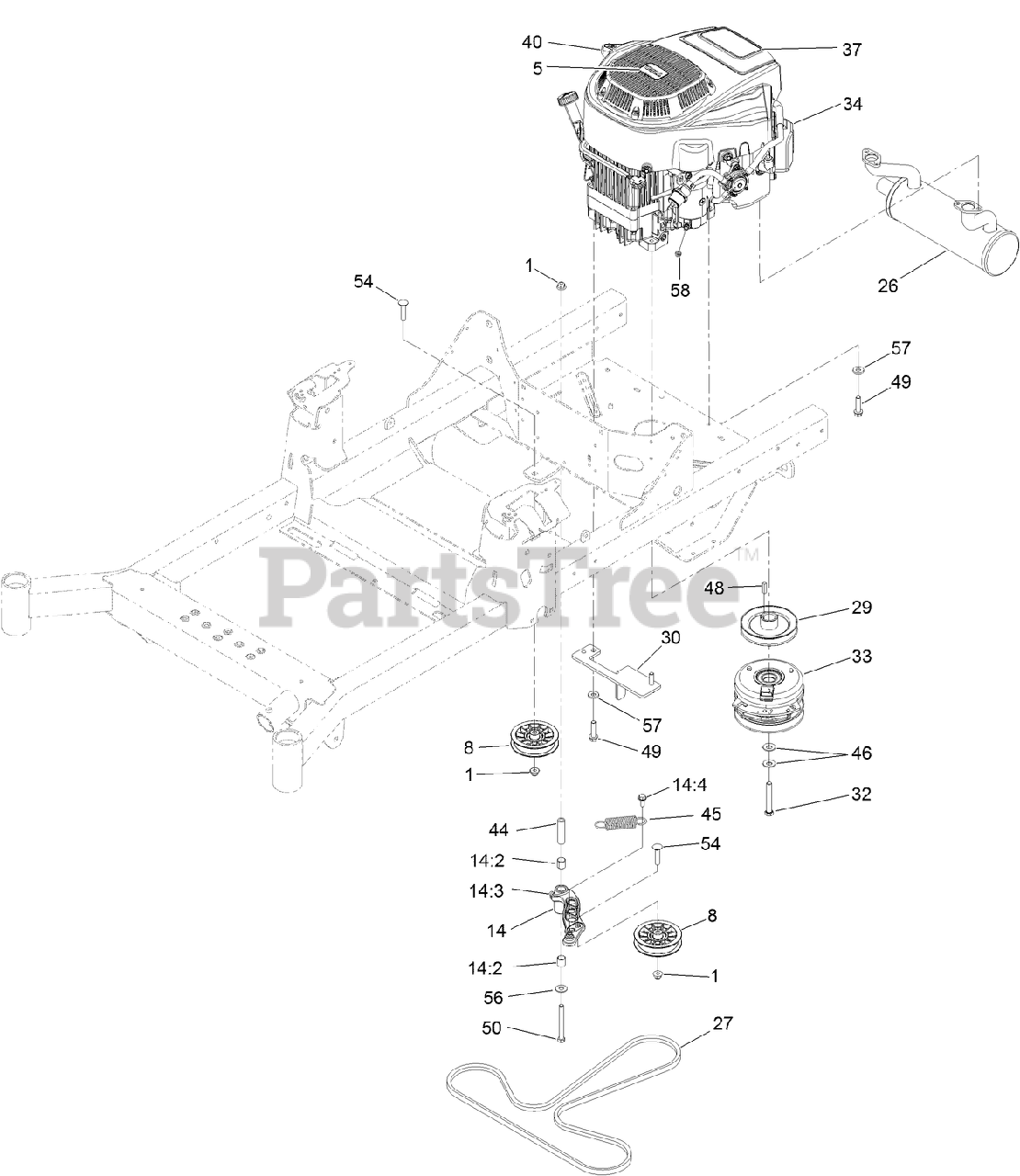

Engine Assembly Parts Diagram

  • Title

1

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 110-1136

DECAL

$3.49

$

Usually ships in 3-6 days

0

8

Toro 116-2456

PULLEY-FLAT IDLER

$26.99

$

In Stock, Qty 20+

0

14

Toro 126-0973

IDLER ARM ASM

$98.99

$

In Stock, only 2 left!

0

14:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

14:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

14:4

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

26

Toro 126-5864

MUFFLER

$169.99

$

Usually ships in 3-6 days

0

27

Toro 126-5993

BELT-V

$54.99

$

In Stock, Qty 20+

0

29

Toro 135-0134

SHEAVE-ENGINE

$71.99

$

Usually ships in 3-6 days

0

30

Toro 126-6687-03

ANCHOR-CLUTCH

$28.99

$

In Stock, only 1 left!

0

32

Toro 126-7198

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$20.99

$

In Stock, only 2 left!

0

33

Toro 127-3410

CLUTCH-PTO

$421.99

$

In Stock, only 2 left!

0

34

Toro 127-9451

See Supercession: 136-7818
(Superseded to 136-7818)

$3111.99

$

Usually ships in 3-6 days

0

37

Toro 126-9182

DECAL-HP, ENGINE

$7.49

$

Usually ships in 3-6 days

0

40

Toro 131-1097

DECAL-DRAIN, OIL

$2.99

$

In Stock, only 2 left!

0

44

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

45

Toro 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

46

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

48

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

49

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

50

Toro 323-15

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

54

Toro 3231-29

SCREW-CARR

$8.49

$

In Stock, Qty 16

0

56

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

58

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0
