74461 (HD 2000) - Toro 52" Titan Zero-Turn Mower (SN: 400000000 - 999999999) FRAME, ROLL-OVER PROTECTION SYSTEM AND WHEEL ASSEMBLY Parts Diagram

52" Titan Zero-Turn Mower

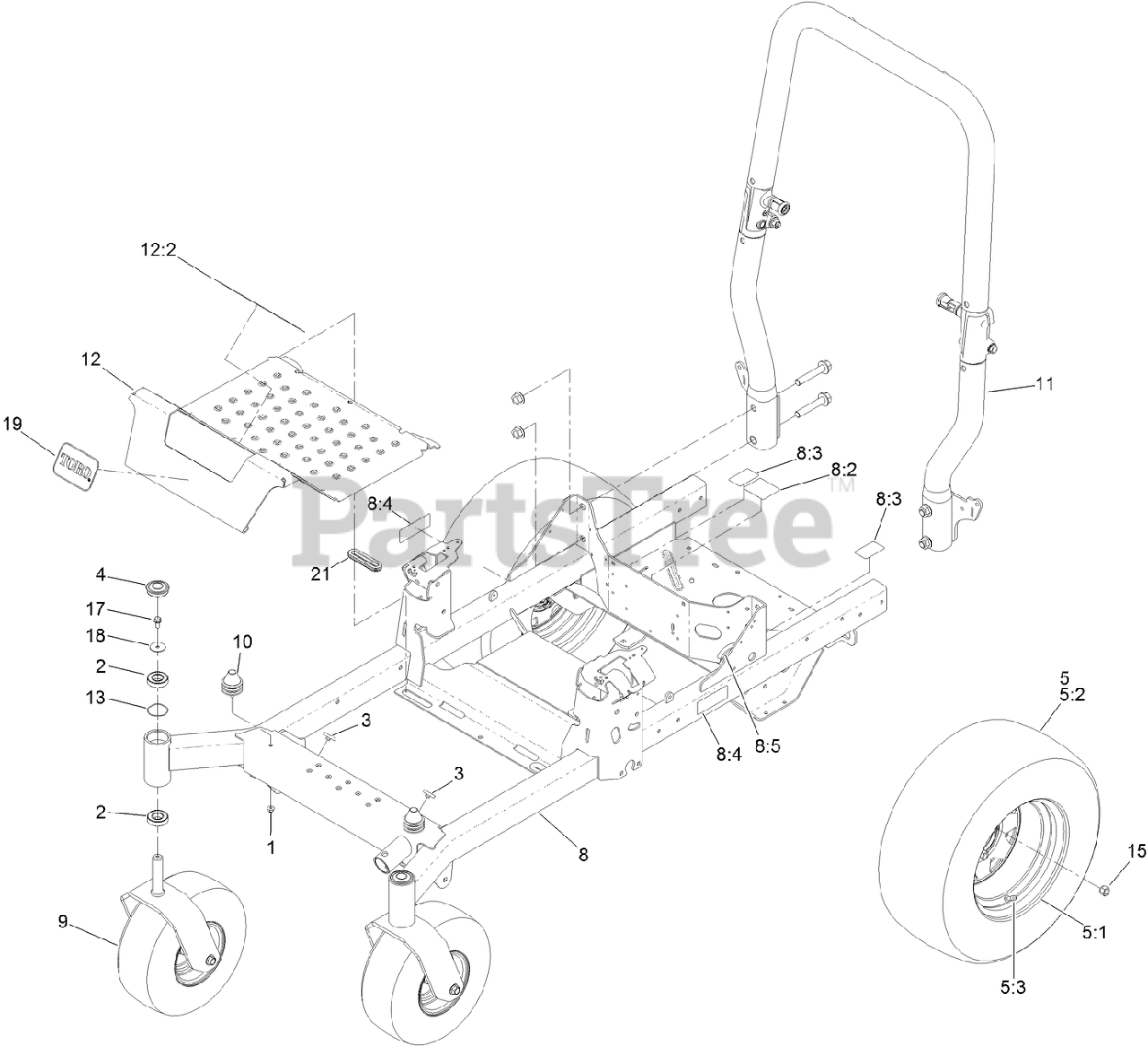

FRAME, ROLL-OVER PROTECTION SYSTEM AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

3

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.99

$

In Stock, Qty 10

0

4

Toro 116-4348

CAP-GREASE

$5.99

$

In Stock, Qty 20+

0

5

Toro 126-7829

WHEEL AND TIRE ASM

$550.99

$

Usually ships in 3-6 days

0

5:1

Toro 126-7828

RIM-WHEEL

$149.99

$

Usually ships in 3-6 days

0

5:2

Toro 126-3288

TIRE

$326.99

$

Usually ships in 3-6 days

0

5:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

8

Toro 126-4699

FRAME ASM

$1175.99

$

Usually ships in 3-6 days

0

8:2

Toro 109-6014

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 4 left!

0

8:3

Toro 116-8588

DECAL-RELEASE, DRIVE

$2.99

$

Usually ships in 3-6 days

0

8:4

Toro 126-4363

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0

8:5

Toro 127-6618

STRIP-SEAL

$7.49

$

Usually ships in 3-6 days

0

9

FRONT CASTER ASM (W/FORK)

Note: Not serviced separately

$

$

Not available

10

Toro 126-5491

ISOLATOR

$22.99

$

Usually ships in 3-6 days

0

11

Toro 126-9526

ROPS ASM

$806.99

$

Usually ships in 3-6 days

0

12

Toro 126-5872

PAN-FLOOR

$211.99

$

Usually ships in 3-6 days

0

12:2

Toro 126-8383

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

13

Toro 126-5897

SPRING

$1.99

$

In Stock, Qty 20+

0

15

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

17

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

19

Toro 67-1300

DECAL

$35.99

$

In Stock, only 2 left!

0

21

Toro 126-7065

GROMMET-RUBBER

$5.99

$

In Stock, only 2 left!

0
