74470 (HD 2500) - Toro 48" Titan Zero-Turn Mower (SN: 403351044 - 404314999) Engine Assembly Parts Diagram

48" Titan Zero-Turn Mower

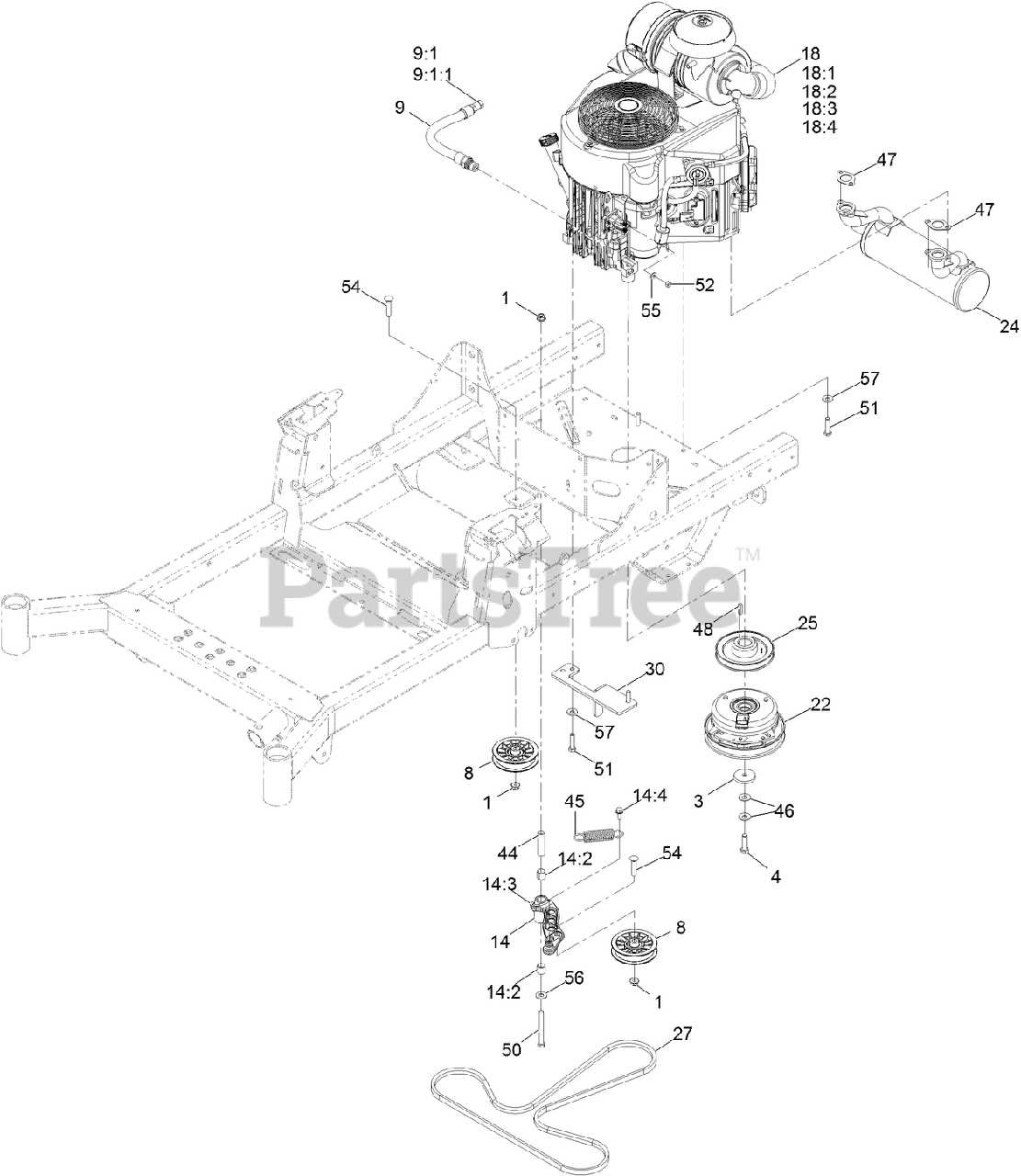

Engine Assembly Parts Diagram

  • Title

1

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 9

0

4

Toro 109-9761

SCREW-HH, W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.99

$

In Stock, Qty 13

0

8

Toro 116-2456

PULLEY-FLAT IDLER

$26.99

$

In Stock, Qty 20+

0

9

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Torque to 23-29 ft-lb

$42.99

$

In Stock, Qty 6

0

9:1

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

9:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

14

Toro 126-0973

IDLER ARM ASM

$98.99

$

In Stock, only 2 left!

0

14:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

14:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

14:4

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

18

ENGINE-KAWASAKI, FX651V

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

18

ENGINE-KAWASAKI, FX651V

Note: Not serviced separately

$

$

Not available

18:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: Not serviced separately

$

$

Not available

18:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

18:2

KAWASAKI 49019-7005 FUEL FILTER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

18:2

KAWASAKI 49019-7005 FUEL FILTER

Note: Not serviced separately

$

$

Not available

18:3

KAWASAKI 11013-7045 SAFETY FILTER

Note: Not serviced separately

$

$

Not available

18:3

KAWASAKI 11013-7045 SAFETY FILTER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

18:4

KAWASAKI 11013-7044 ENGINE AIR FILTER

Note: Not serviced separately

$

$

Not available

18:4

KAWASAKI 11013-7044 ENGINE AIR FILTER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

22

Toro 126-4324

CLUTCH

$421.99

$

In Stock, only 1 left!

0

24

Toro 126-4360

MUFFLER

$169.99

$

Usually ships in 3-6 days

0

25

Toro 126-5358

SHEAVE (W/HUB)

$71.99

$

In Stock, only 1 left!

0

27

Toro 126-5993

BELT-V

$54.99

$

In Stock, Qty 20+

0

30

Toro 126-6687-03

ANCHOR-CLUTCH

$28.99

$

In Stock, only 1 left!

0

44

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

45

Toro 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

46

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

47

Toro 1-653313

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0

48

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

50

Toro 323-15

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

51

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 9

0

54

Toro 3231-29

SCREW-CARR

$8.49

$

In Stock, Qty 16

0

55

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

56

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0
