74529 - Toro 52" GrandStand Multi-Force Stand-On Mower (SN: 400000000 - 403294015) LH Transaxle Assembly No. 136-4103 Parts Diagram

52" GrandStand Multi-Force Stand-On Mower

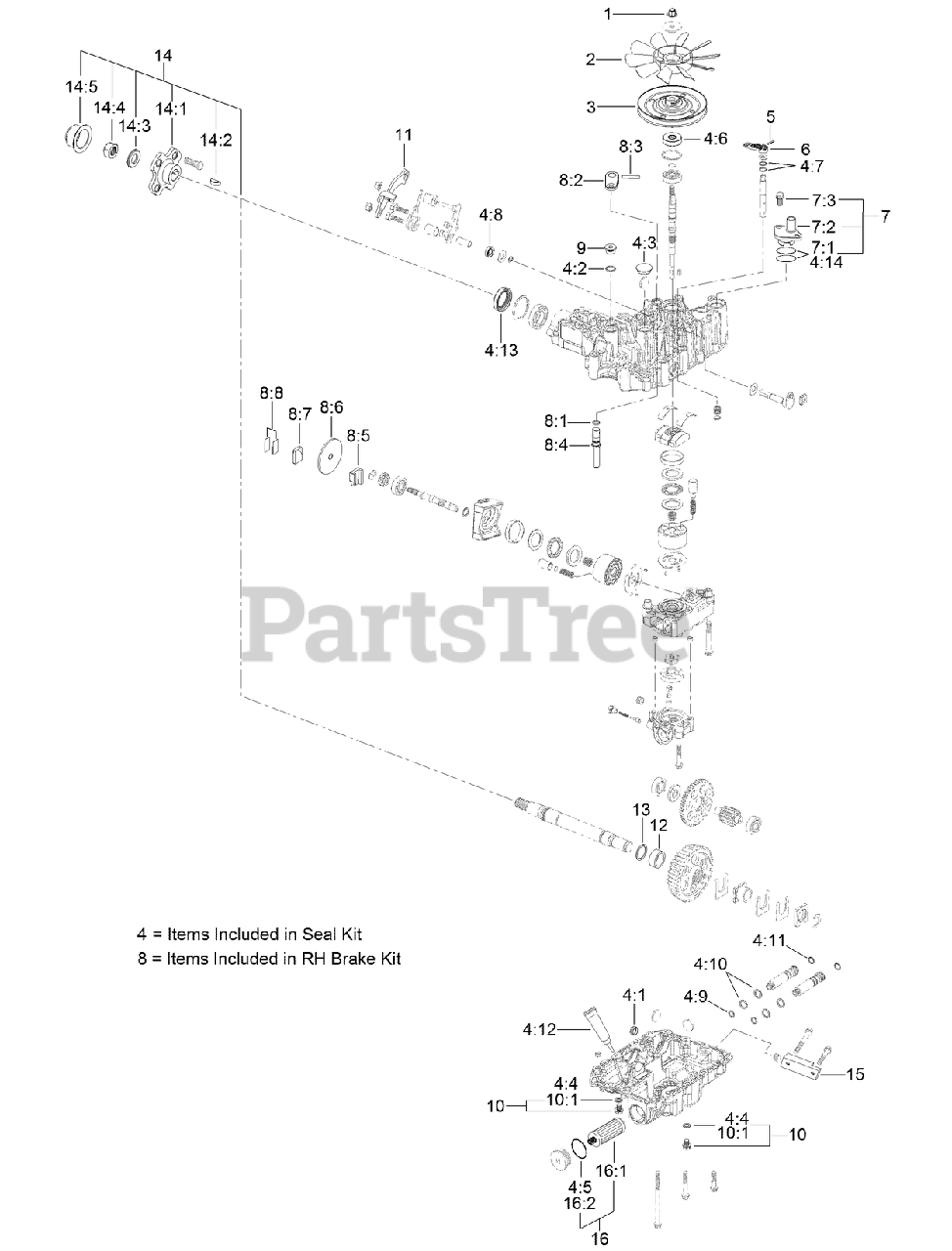

LH Transaxle Assembly No. 136-4103 Parts Diagram

  • Title

1

Toro 132-4737

NUT-LOCK

$2.49

$

Usually ships in 3-6 days

0

2

Toro 132-4738

FAN

$36.99

$

Usually ships in 3-6 days

0

3

Toro 132-4739

PULLEY

$132.99

$

In Stock, only 2 left!

0

4

Toro 136-5407

SEAL KIT

$125.99

$

Usually ships in 3-6 days

0

4:1

Toro 100-6926

CAP-SEALING

$23.99

$

Usually ships in 3-6 days

0

4:2

Toro 132-4736

O-RING

$3.49

$

In Stock, only 2 left!

0

4:3

CAP-SEAL

Note: Not serviced separately

$

$

Not available

4:4

Seal-Washer

Note: Not serviced separately

$

$

Not available

4:5

Packing

Note: Not serviced separately

$

$

Not available

4:6

Toro 132-4744

SEAL-SHAFT

$32.99

$

In Stock, only 1 left!

0

4:7

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

4:8

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

4:9

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

4:10

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

4:11

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

4:12

Toro 121-0959

SEALANT

$

$

Not available

4:13

Toro 132-4745

SEAL-AXLE

$38.99

$

In Stock, Qty 11

0

4:14

Packing

Note: Not serviced separately

$

$

Not available

5

Toro 104-3265

PIN

$3.49

$

Usually ships in 3-6 days

0

6

Toro 132-4700

LEVER-BYPASS

$10.99

$

Usually ships in 3-6 days

0

7

Toro 133-1461

EXPANSION FITTING KIT
(Superseded to 139-7871)

$33.99

$

In Stock, only 1 left!

0

7:1

Toro 136-4051

SEAL-FITTING, EXPANSION

$4.49

$

In Stock, Qty 9

0

7:2

Fitting

Note: Not serviced separately

$

$

Not available

7:3

BOLT-FLANGE

Note: Not serviced separately

$

$

Not available

8

Toro 133-1462

RH BRAKE KIT

$128.99

$

Usually ships in 3-6 days

0

8:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

8:2

ARM-BRAKE

Note: Not serviced separately

$

$

Not available

8:3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

8:4

SHAFT-BRAKE

Note: Not serviced separately

$

$

Not available

8:5

ACTUATOR-BRAKE

Note: Not serviced separately

$

$

Not available

8:6

DISC-BRAKE

Note: Not serviced separately

$

$

Not available

8:7

SHOE-BRAKE

Note: Not serviced separately

$

$

Not available

8:8

SHIM KIT

Note: Not serviced separately

$

$

Not available

9

Toro 132-4735

CAP-OIL

$15.99

$

In Stock, only 2 left!

0

10

Toro 132-4746

DRAIN BOLT KIT

$6.99

$

Usually ships in 3-6 days

0

10:1

Seal-Washer

Note: Not serviced separately

$

$

Not available

11

Toro 136-5401

LEVER-CONTROL, RH

$72.99

$

Usually ships in 3-6 days

0

12

Toro 132-4747

SLEEVE

$

$

Not available

13

Toro 132-4748

WASHER

$3.99

$

In Stock, only 1 left!

0

14

Toro 136-5406

AXLE FLANGE KIT
(Superseded to 139-5588)

$

$

Not available

14:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

14:2

Key-Woodruff

Note: Not serviced separately

$

$

Not available

14:3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

14:4

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

14:5

NUT-CAP

Note: Not serviced separately

$

$

Not available

15

Toro 136-5408

MANIFOLD

$

$

Not available

16

Toro 132-4743

HYDRO FILTER KIT
(Superseded to 144-3842)

$108.99

$

In Stock, only 2 left!

0

16:1

Toro 136-5409

FILTER
(Superseded to 144-3842)

$108.99

$

In Stock, only 2 left!

0

16:2

Toro 136-5410

O-RING

$1.99

$

Usually ships in 3-6 days

0
