74532 - Toro 32" GrandStand HDM Stand-On Mower (SN: 417100000 - 418049999) Caster Wheel Assembly Parts Diagram

32" GrandStand HDM Stand-On Mower

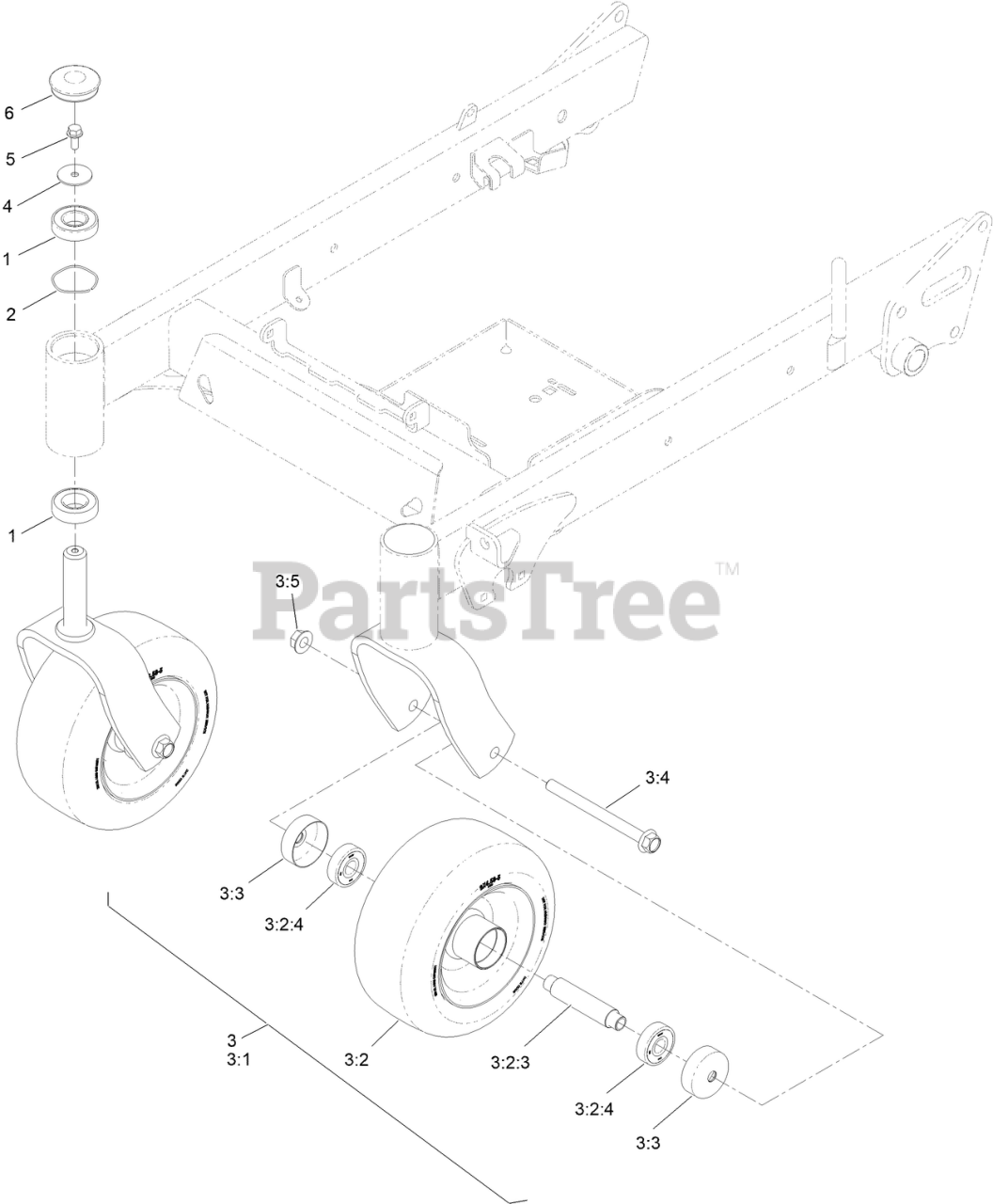

Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

2

Toro 126-5897

SPRING

$1.99

$

In Stock, Qty 20+

0

3

ASM-CASTER FORK W/TIRE

Note: Not serviced separately

$

$

Not available

3:1

Toro 135-1651-01

ASM-CASTER FORK [RED]

$100.99

$

In Stock, Qty 17

0

3:2

Toro 161-3505

ASM-TIRE WHL SP 9X4.50-5

$120.99

$

Usually ships in 3-6 days

0

3:2:3

Toro 126-7904

AXLE-CASTER

$27.99

$

In Stock, only 1 left!

0

3:2:4

Toro 116-4004

BEARING

$22.99

$

In Stock, Qty 11

0

3:3

Toro 135-3218

GUARD, SEAL

$6.49

$

In Stock, only 2 left!

0

3:4

Toro 135-4633

SCREW-HHF

$8.49

$

In Stock, Qty 5

0

3:5

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

4

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

5

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

6

Toro 144-0375

CAP,GREASE

$3.99

$

In Stock, Qty 13

0
