74534 TE - Toro 91cm GrandStand Stand-On Mower (SN: 413000000 - 417999999) Deck Assembly Parts Diagram

91cm GrandStand Stand-On Mower

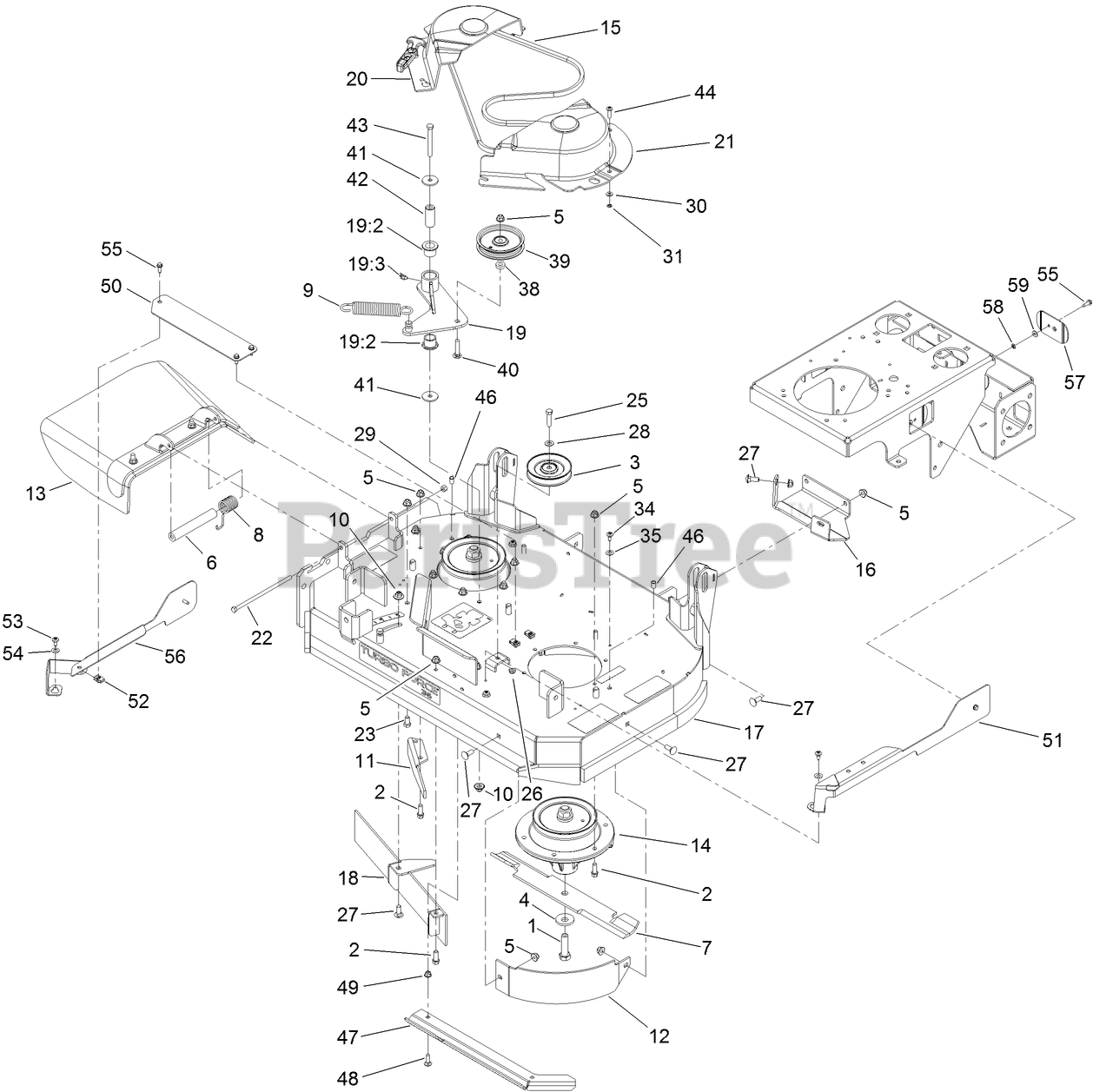

Deck Assembly Parts Diagram

  • Title

1

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

2

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 92-7099

PULLEY-IDLER

$75.99

$

In Stock, only 4 left!

0

4

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

7

Toro 105-7781-03

BLADE-18IN, HI FLOW

$27.99

$

In Stock, Qty 20+

0

8

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 6

0

9

Toro 119-0394

SPRING-EXTENSION

$36.99

$

In Stock, only 1 left!

0

10

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 110-0754-01

BAFFLE-DISCHARGE

$43.99

$

Usually ships in 3-6 days

0

12

Toro 110-6903-03

BAFFLE-FRONT, LH

$79.99

$

Usually ships in 3-6 days

0

13

Toro 119-2347

DEFLECTOR ASM

$306.99

$

Usually ships in 3-6 days

0

14

Toro 117-7638

SPINDLE ASM

$234.99

$

In Stock, only 2 left!

0

15

Toro 117-7641

BELT-V

$45.99

$

In Stock, only 3 left!

0

16

Toro 117-7687-01

PLATE-SKID

$80.99

$

Usually ships in 3-6 days

0

17

Toro 121-6015

DECK AND DECAL ASM

$2330.99

$

Usually ships in 3-6 days

0

18

Toro 119-0153-03

FRONT BAFFLE ASM

$147.99

$

Usually ships in 3-6 days

0

19

Toro 119-0180

IDLER ARM ASM

$212.99

$

Usually ships in 3-6 days

0

19:2

Toro 33-3090

BUSHING

$10.99

$

In Stock, only 2 left!

0

19:3

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, Qty 5

0

20

Toro 119-1802

COVER-BELT, RH

$128.99

$

Usually ships in 3-6 days

0

21

Toro 119-1803

COVER-BELT, LH

$128.99

$

Usually ships in 3-6 days

0

22

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 15

0

23

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

25

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 5

0

27

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 5

0

34

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

35

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

38

Toro 5-0652

SPACER

$8.49

$

In Stock, only 2 left!

0

39

Toro 93-1622

PULLEY-IDLER

$54.99

$

In Stock, Qty 7

0

40

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

41

Toro 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

42

Toro 119-0208

SPACER-PLAIN

$19.99

$

In Stock, only 2 left!

0

43

Toro 323-20

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

44

Toro 32105-32

SCREW-TTH

$1.49

$

In Stock, only 2 left!

0

46

Toro 32148-6

NUT-CLINCH

$2.49

$

Usually ships in 3-6 days

0

47

Toro 119-7839-01

EXTENDER-DECK

$106.99

$

Usually ships in 3-6 days

0

48

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

49

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

50

Toro 131-1506-01

GUARD-DECK, CENTER

$18.99

$

Usually ships in 3-6 days

0

51

Toro 131-1497-01

GUARD-DECK, LH

$93.99

$

Usually ships in 3-6 days

0

52

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

53

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

54

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

55

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0

56

Toro 131-1498-01

GUARD-DECK, RH

$93.99

$

Usually ships in 3-6 days

0

57

Toro 131-1495-01

GUARD-PLATE

$25.99

$

Usually ships in 3-6 days

0

58

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 5

0

59

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0
